Specification
AudioOutputMode : Stereo
Brand : Generic
BulletPoint1 : Driver Complement: Low-Frequency: Two Apogee 12" (305mm) neodymium magnet conetype drivers are constructed of inherently waterproof compounds, providing very high resistance to moisture, enabling long-term stability of cone resonance and cone mass parameters. Magnet structure is encased in an integral heat-sink for long-term high-power applications, lowered distortion, and superb control of short-term impedance rise
BulletPoint2 : Processor Handles: Two handles – one top, one bottom – designed as an integral part of the enclosure (no moving parts)
BulletPoint3 : Mid-Frequency: Two Apogee 6-1/2" (165mm) permanent magnet conetype drivers are treated with waterproofing compound. In addition, a unique baffle mounting arrangement protects the driver cones from direct ingress of water or foreign elements. A totally enclosed frame design isolates the back wave output from interference with the low frequency chamber and protects the cone from any ingress of particles or moisture
BulletPoint4 : Rigging Hardware: Six rigging points, three each on top and bottom, backed with 16- gauge steel plates; plates can be type 3/8"-16 or M10 thread
BulletPoint5 : High-Frequency: One Apogee 4" (100mm) voice coil, 2" (51mm) exit horn, loaded compression driver, driven by a powerful neodymium magnet structure; diaphragm is constructed of ceramic-coated metal alloy. The use of the most up-to-date Ferrotec Ferrofluid developed for compression drivers assures greater power handling capability and lower distortion, and ensures that the short- and long-term impedance rises are minimal
ConnectivityTechnology : Auxiliary
FrequencyResponse : 20 KHz
IncludedComponents : No

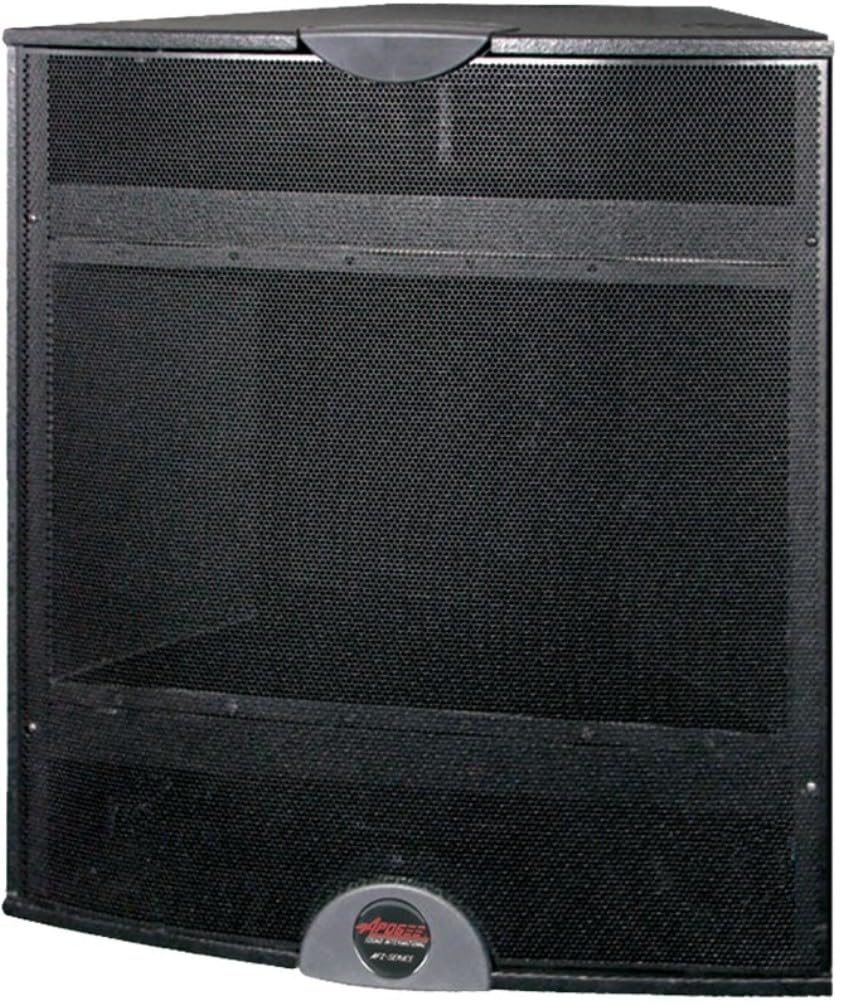

ItemName : Bogen 106-9000 Model AFI-9 Arrayable Loudspeaker System, Black, 600W Cont./2400W Peak Max. Power Handling, 104dB Sensitivity, 16 Ohms Nominal Impedance, 55Hz to 20kHz Frequency Response
ItemPackageQuantity : 1
ItemTypeKeyword : studio-and-stage-powered-speaker-cabinets
Manufacturer : Bogen
ModelName : Arrayable Loudspeaker System
ModelNumber : AFI-9
NumberOfItems : 1
PartNumber : 106-0850
ProductDescription : Bogen 106-9000 Model AFI-9 Arrayable Loudspeaker System, Black, 600W Cont./2400W Peak Max. Power Handling, 104dB Sensitivity, 16 Ohms Nominal Impedance, 55Hz to 20kHz Frequency Response

The AFI-9 is a fully-arrayable loudspeaker capable of filling large churches, theaters, sports venues, and theme parks with clean, articulate full bandwidth sound. Available with a 60° x 40° mid-/high-frequency horn, the point source MF/HF section blends seamlessly with the dual horn-loaded low-frequency section, ensuring that the AFI-9 works flawlessly in any room configuration.

KEY FEATURES
- Input Connectors: Barrier strip, screw type #8
- Compatible Processors: Apogee DLC24 Digital
- Processor Handles: Two handles – one top, one bottom – designed as an integral part of the enclosure (no moving parts)
- Grille: Highly durable, heavy gauge steel with a quality powder-coated finish
- Rigging Hardware: Six rigging points, three each on top and bottom, backed with 16- gauge steel plates; plates can be type 3/8"-16 or M10 thread
- Finish: Textured high-strength black epoxy paint; other colors optional
- Enclosure Type: 30 degree trapezoidal design with point-source radiation pattern
- Cabinet Construction: Multi-ply, void-free hardwood

SPECIFICATIONS
- Format: Passive/Three-way
- Dispersion: H: 60° x V: 40°
- Frequency Response: 55Hz to 20kHz ± 3dB
- Max. SPL (@1m): 132dB cont./138dB peak
- PTML (peak transient mechanical limit): 147dB
- Sensitivity (1W @ 1m): 104dB SPL/100Hz to 10kHz
- Nominal Impedance: 16 ohms
- Max. Power Handling: 600W cont./2400W peak
- Dimensions: Front 28.25"W x 30.83"H, Rear: 15.39"W x 30.83"H, Depth: 24.95"
- Weight: 144 lb


ProductSiteLaunchDate : 2025-03-11T15:25:45.008Z
SpeakerAmplificationType : Passive
SpeakersMaximumOutputPower : 600 watts
SpeakerType : Three-way
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 52161500
WarrantyDescription : No
