Specification
Brand : Jumplushion
BulletPoint1 : [MULTIFUNCTIONAL DISPLAY UNIT] This digital display instrument is compatible with various analog output sensors, allowing you to monitor physical quantities like temperature, motor speed, and pressure effectively.
BulletPoint2 : [ADAPTABLE INPUT OPTIONS] Supports both current and voltage inputs, with default settings for 0-10V, 2-10V, 0-20mA, and 4-20mA, making it for different applications.
BulletPoint3 : [CUSTOMIZABLE DISPLAY RANGE] The default display is in percentage; however, you can easily set the desired display range through F0-2 to F0-4 for tailored monitoring.
BulletPoint4 : [RS485 COMMUNICATION INTERFACE] Equipped with an RS485 interface for seamless communication between multiple meters, enhancing your location display capabilities.
BulletPoint5 : [SIZING AND SPECIFICATIONS] Compact size of 79 x 43 x 25 mm and powered by a DC6-25V supply ensures it fits well in various environments. Please check your specifications before purchasing.
Color : as picture show

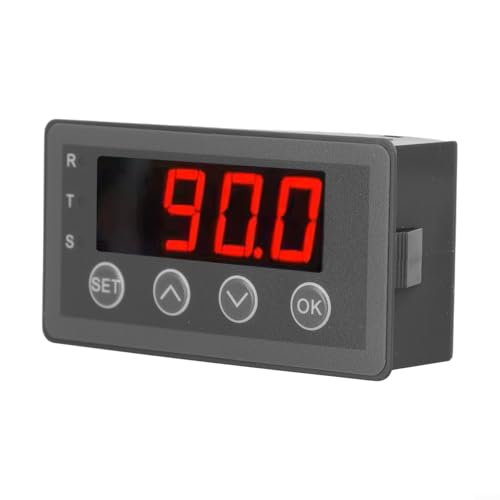

ItemName : Industrial Digital Display Head HXDSBOXA-485 Model Analog Input Meter with RS485 for Temperature Pressure Level Concentration Measurement
ItemTypeKeyword : industrial-pressure-gauges
Manufacturer : Jumplushion
ModelNumber : 3R560635UE76V7175X19IY36HO9V25
PartNumber : 3R560635UE76V7175X19IY36HO9V25
ProductDescription :

Features:
This instrument can be called a general analog input display instrument. It can be matched with various sensors with analog output to display actual physical quantities. Such as temperature transmitter, inverter frequency, motor speed, pressure, liquids level, concentration, etc.

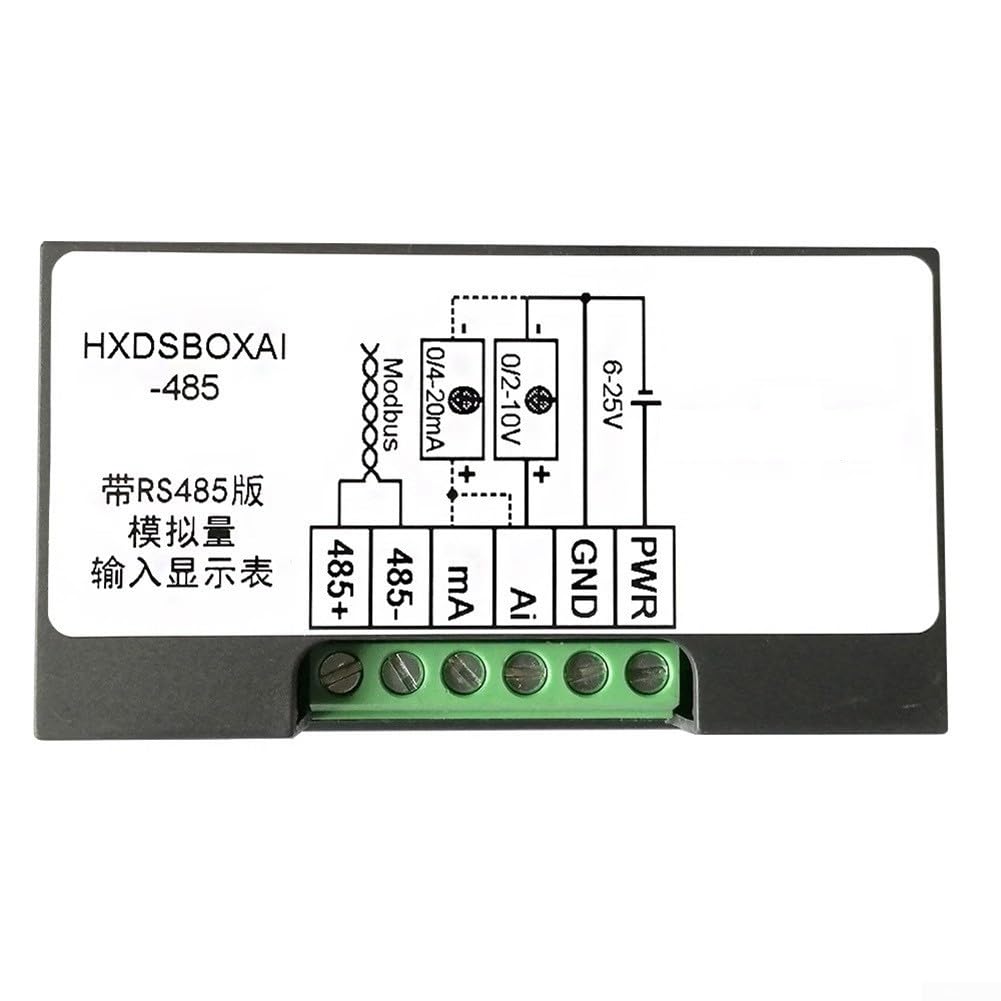

This instrument supports current input or voltage input.
Default adaptation: 0-10V, 2-10V, 0-20mA, 4-20mA. By setting the offset parameters and gain parameters, it can adapt to other inputs in the range of 0-10V or 0-20mA.
The default display is in percentage, and you can also set the display range you need through F0-2~F0-4.
The instrument with 485 interface already supports communication between meters, which is convenient for multi-location display

Specifications:
Part Name: Digital Display
Model: HXDSBOXA-485
Type: Version with RS485
Rated power supply voltage range: DC6 ~ 25V
Power consumption: 24V/40mA
Color:Black
Material: plastic
Size: 79 x 43 x 25 mm

Package Contents:
1*Digital Display
