Specification
Brand : Kqcibz
BulletPoint : 100% Digital Differential Pressure Sensor MS4525DO 4525DO MS4525DO-DS5AI001DP
BulletPoint1 : Material:CCL
BulletPoint2 : Color:green
BulletPoint3 : Housing and wire connectors are waterproof design, good sealing, suitable for harsh environments
BulletPoint4 : Look beautiful, , anti-jamming performance
BulletPoint5 : Accuracy +/-?2 % max. Volts Full Scale
Color : Green
ConnectorType : Screw
ExternallyAssignedProductIdentifier : 4861196193961
ExternallyAssignedProductIdentifier1 : 0755526560599
ExternallyAssignedProductIdentifier2 : 755526560599

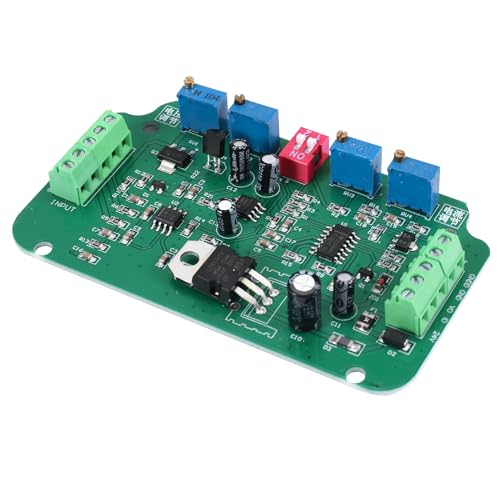

ItemName : Kqcibz 0-10V Load Cell sensor Amplifier Transmitter Weight sensor
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-pressure-sensors
Manufacturer : Kqcibz
Material : copper
MountingType : Flange Mount
NumberOfItems : 1
PartNumber : 110636

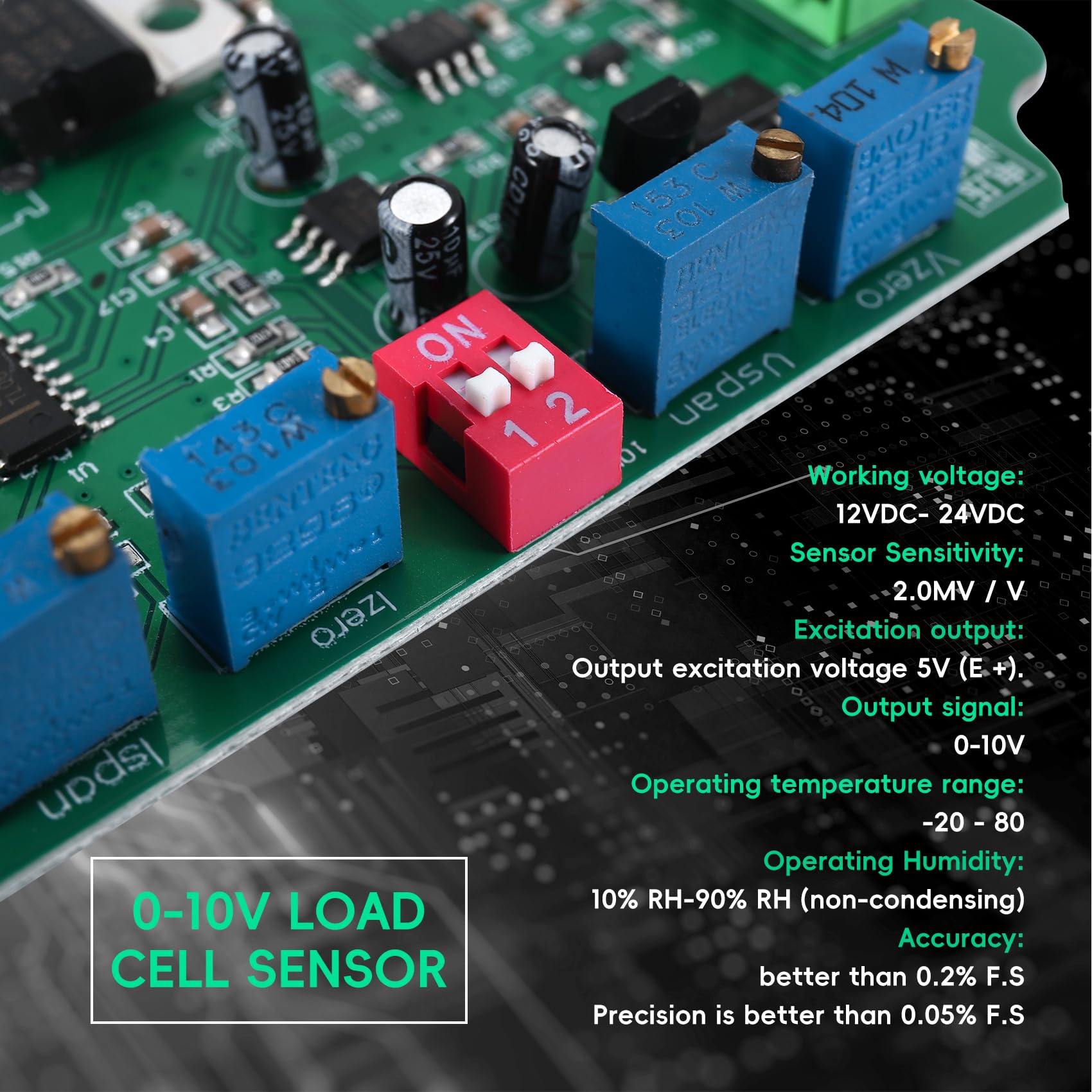

ProductDescription : Kqcibz 0-10V Load Cell sensor Amplifier Transmitter Weight sensor Ultra- high-precision op amp circuit, high accuracy, good stability The power supply has reverse polarity protection, surge protection, overcurrent protection Suitable for weighing, pull pressure, torque, and other strain sensor. Working voltage: 12VDC- 24VDC Sensor Sensitivity: 2.0MV / V Excitation output: Output excitation voltage 5V (E +). Output signal: 0-10V Operating temperature range: -20 - 80 Operating Humidity: 10% RH-90% RH (non-condensing) Accuracy: 0.2% F.S Precision is 0.05% F.S DIP switch is appropriated for OFF, VO output 0-5V, when to the ON, VO output 0-10V, when DIP switch and No. 2 are appropriated for OFF. 1. Zero adjustment 1: voltage regulation, first the system is unloaded, the regulated voltage zero potentiometer (Vzero) to adjust the zero point. Measured with a multimeter voltage output terminal VO, let indication as close to zero indication. 2: The current adjustment, first the system is unloaded, the current zero adjustment potentiometer (Izero), with a multimeter block measuring the current output of the current IO, try to let it close to 4mA. The re-examination The system is unloaded, the measured zero output; load a certain weight values, measured output voltage is expected magnification. If you do not match, adjust again. Package Contents:1 x 0-10V Load Cell Sensor Transmitter Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
ProductSiteLaunchDate : 2024-05-30T02:10:10.202Z
SpecificUsesForProduct : Pressure,Temperature
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1.0406
UnspscCode : 39120000
