Specification
Brand : QILICHUANGAN
BulletPoint : Reland Sung
BulletPoint1 : S-Type Load Cell: S-Beam Design, Simple And Stable, Easy To Install, Test Tension And Compression Force Weight Pressure Sensor For Scale
BulletPoint2 : High precision Load Cell sensor: Sensitivity: 2.0±0.05mV/V, Accuracy: 0.2% (maximum range), Operating temperature range: -20℃-+70℃.
BulletPoint3 : Sensor Force Description: Test Tension And Pressure, Both Ends Of The Sensor Threaded Holes Can Be Used For Fixing Or Matching The Use Of Rings. Built-In Protection Line, Can Withstand 50n Tension, Stable And Durable
BulletPoint4 : Measuring Range And Size: Measuring Range From 5kg-5000kg, Suitable For A Variety Of Weighing And Force Measurement Scenarios, With The Ring Or Amplifier Transmitter, Can Be Used With Plc, Pc And Other Terminals. Protection Level Ip66 Can Work Stably In A Variety Of Complex Environments.
BulletPoint5 : Simple maintenance: The sensor has a long service life and a low failure rate, and the maintenance cost is low
BulletPoint6 : All films guaranteed to have 18 months of shelf life available.
Color : One Color
CompatibleDevices : Camera
ExposuresPerRoll : 8
ExternallyAssignedProductIdentifier : 9778511776370
ExternallyAssignedProductIdentifier1 : 0034948539964
ExternallyAssignedProductIdentifier2 : 034948539964
FilmColorType : Color
FilmFormatType : Sheet
IncludedComponents : 1*LOAD CELL

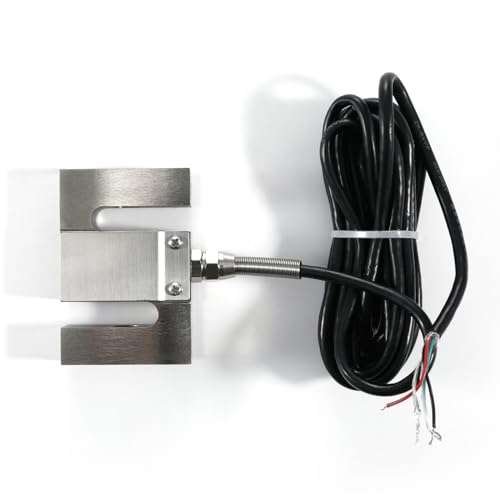

ItemName : Load Cell S Type Force Weight Pressure Sensor, with 3m Cable Tension Compression for Scale Sensor, Range 5KG/ 11LB - 5T /11000LB IP65 IP66 2.0±0.05mV/V (5KG)
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-pressure-sensors
LowerTemperatureRating : -20 degrees_celsius
Manufacturer : QILICHUANGAN
Material : Alloy Steel
MaximumSupplyVoltage : 12 volts
MeasurementAccuracy : 0.02%
MeasuringRange : 5kg - 5000kg
ModelNumber : 265218151
MountingType : Surface Mount
NumberOfBoxes : 1
NumberOfItems : 1
OutputType : Push-Pull
PartNumber : A1S3

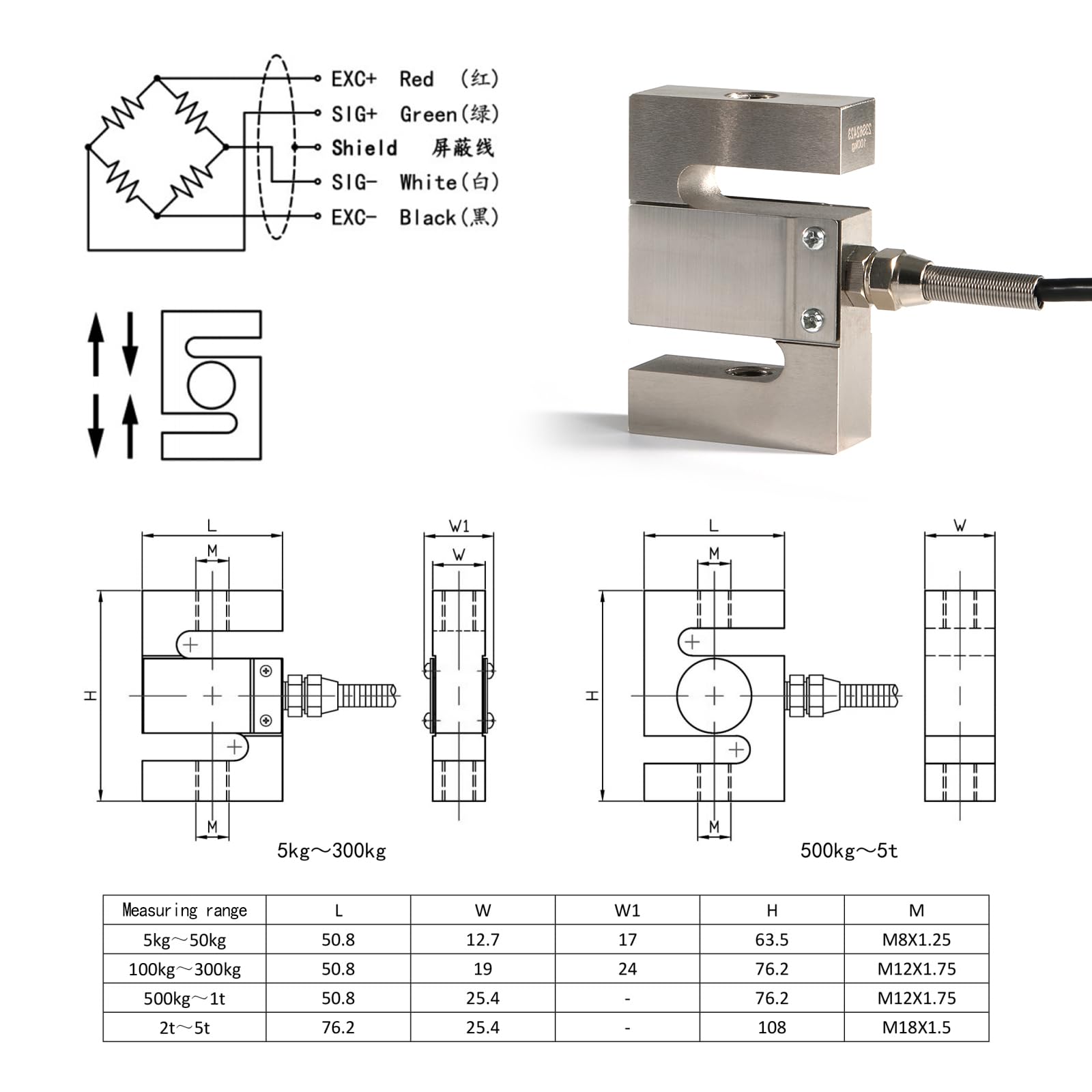

ProductDescription : Parameter Value（unit） Rated load 5kg～5t 0utput sensitivity 2.0±0.05 mV/V Non-linearity ±0.03~±0.05 %F·S Lag error ±0.03 %F·S Repeatability ±0.03 %F·S Creep 0.03 %F·S Zero temperature coefficient ±0.05 %F·S/10℃ Sensitivity temperature coefficient ±0.05 %F·S/10℃ Input resistance 380±30Ω Input resistance 350±5Ω Working temperature -20℃~+70℃ Safe overload 150 %F·S Insulation resistance ≥2000M Q Incentive voltage 5V～12V Protection class IP65、IP66 Material Alloy steel,stainless steel Cable. Φ5×3M
ProductSiteLaunchDate : 2024-06-05T09:05:06.756Z
RollQuantity : 1
Size : 5KG
SpecificUsesForProduct : weighing, electrical
Style : S Type
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 46171600
UpperTemperatureRating : 70 degrees_celsius
