Specification
Brand : Hyuduo
BulletPoint1 : [ AND - Made of stainless steel, this load cell sensor is resistant to and can withstand harsh environments. Its waterproof feature further enhances its durability and reliability.
BulletPoint2 : [VERSATILE POWER SUPPLY] - The CALT DYLY103 Load Cell Sensor can be powered by a voltage range of 5-15V, providing flexibility in different power supply options.
BulletPoint3 : [FAST AND ACCURATE RESPONSE] - With a response frequency of 10KHz, this load cell sensor ensures quick and detection of forces, making it ideal for dynamic applications.
BulletPoint4 : [WIDE RANGE AND VERSATILITY] - With a range of 0 to 100kg (0 to 220.5 lb), this load cell sensor is suitable for various applications such as weighing, tension monitoring, and force measurement.
BulletPoint5 : [HIGH LOAD MEASUREMENT] - The CALT DYLY103 Load Cell Sensor provides accurate readings with its 2.0mv/v output sensitivity and 0.05% F.S accuracy, ensuring compression and tension force measurement.

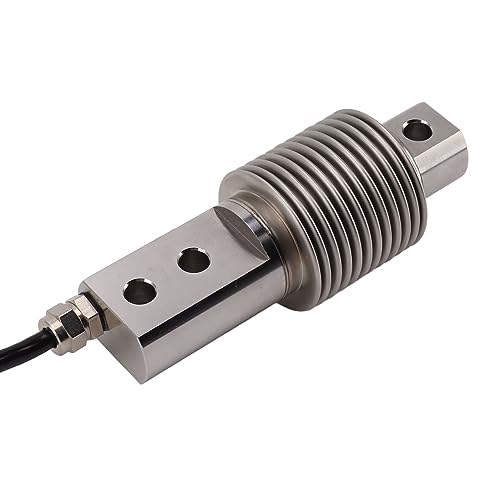

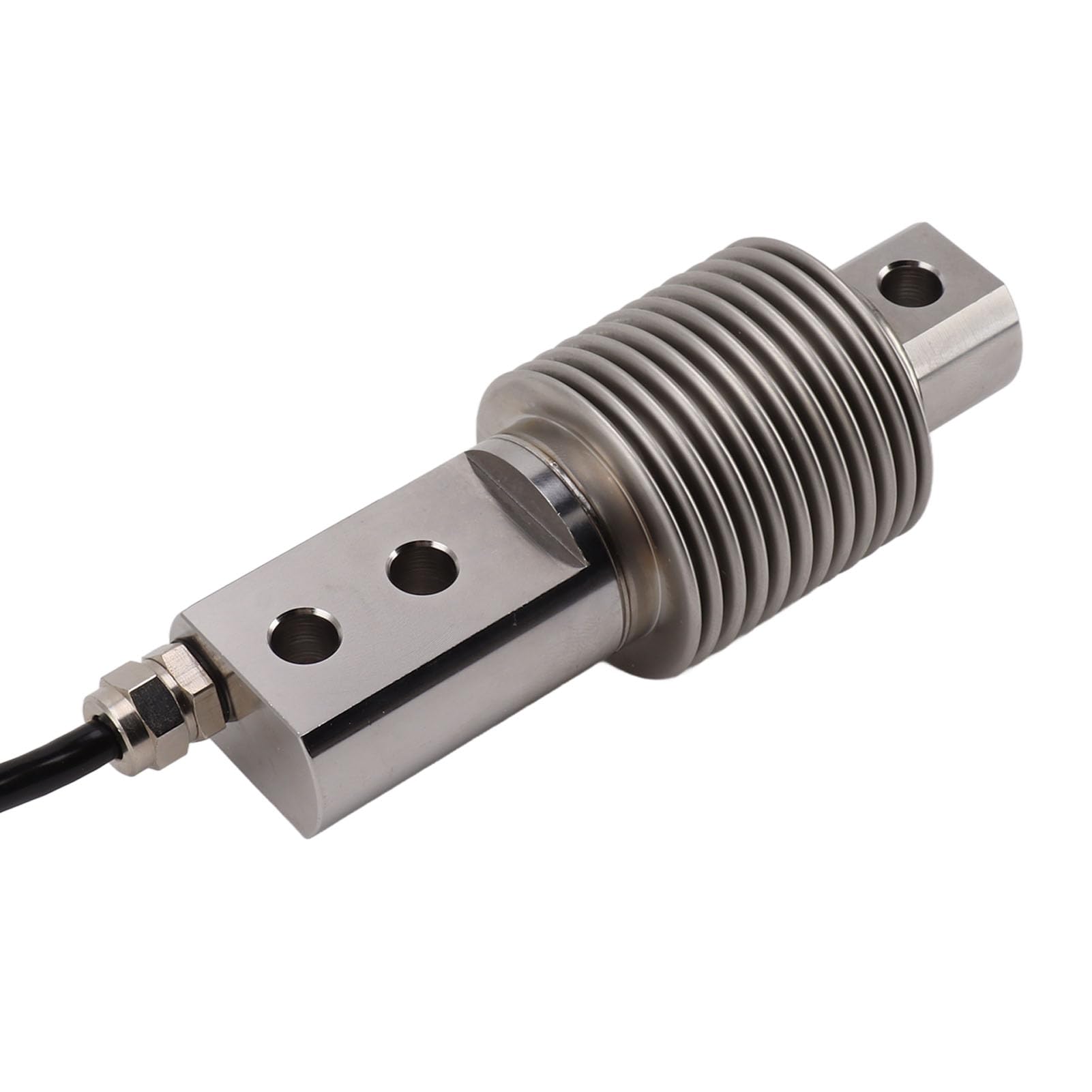

ItemName : Weighing Sensor, 106 Stainless Steel Bellows Load Cell, 0-100kg, Output Sensitivity, 5-15V Power Supply, with 10KHz Response, Acceleration Sensors
ItemPackageDimensions_Height : 25.1 centimeters
ItemPackageDimensions_Length : 8.9 centimeters
ItemPackageDimensions_Width : 15.1 centimeters
ItemTypeKeyword : electronic-pressure-sensors
Manufacturer : Hyuduo
ModelName : Hyuduof1nxgh7o30
ModelNumber : Hyuduof1nxgh7o30
NumberOfItems : 1
PartNumber : Hyuduof1nxgh7o30
ProductDescription : 1. STAINLESS STEEL MATERIAL: Made of stainless steel material, to mechanical fatigue, strong performance, and good hardenability.
2. BELLOWS PIPE: Anti overload and anti partial load. The load cell is stable and for long term accuracy use.
3. HEX CONNECTOR: Prevents wire pulling and breakage, ensuring a long service life.
4. PERFORMANCE: welded sealing, integrated sealing structure performance can arrive IP67.
5. WIDELY USED: Bellows type weighing sensor is waterproof, resistant, and suitable for various environments. Widely used in scales, conveyor scales, small scales, weighing systems, and filling machines.

Specification:
Item Type: Bellows Load Cell
Mode: DYBW 106
Material: Stainless Steel
Range: Approx. 0 to 100kg / 0 to 220.5 lb
Output Sensitivity: 2.0mv/v
Accuracy: 0.05% F.S
Power Supply Voltage: 5-15V
0 Balance: ± 1% F.S
Insulation Greater than or equal to 2000M ?
Output Impedance: 350 ?
Response Frequency: 10KHz

How to Use:

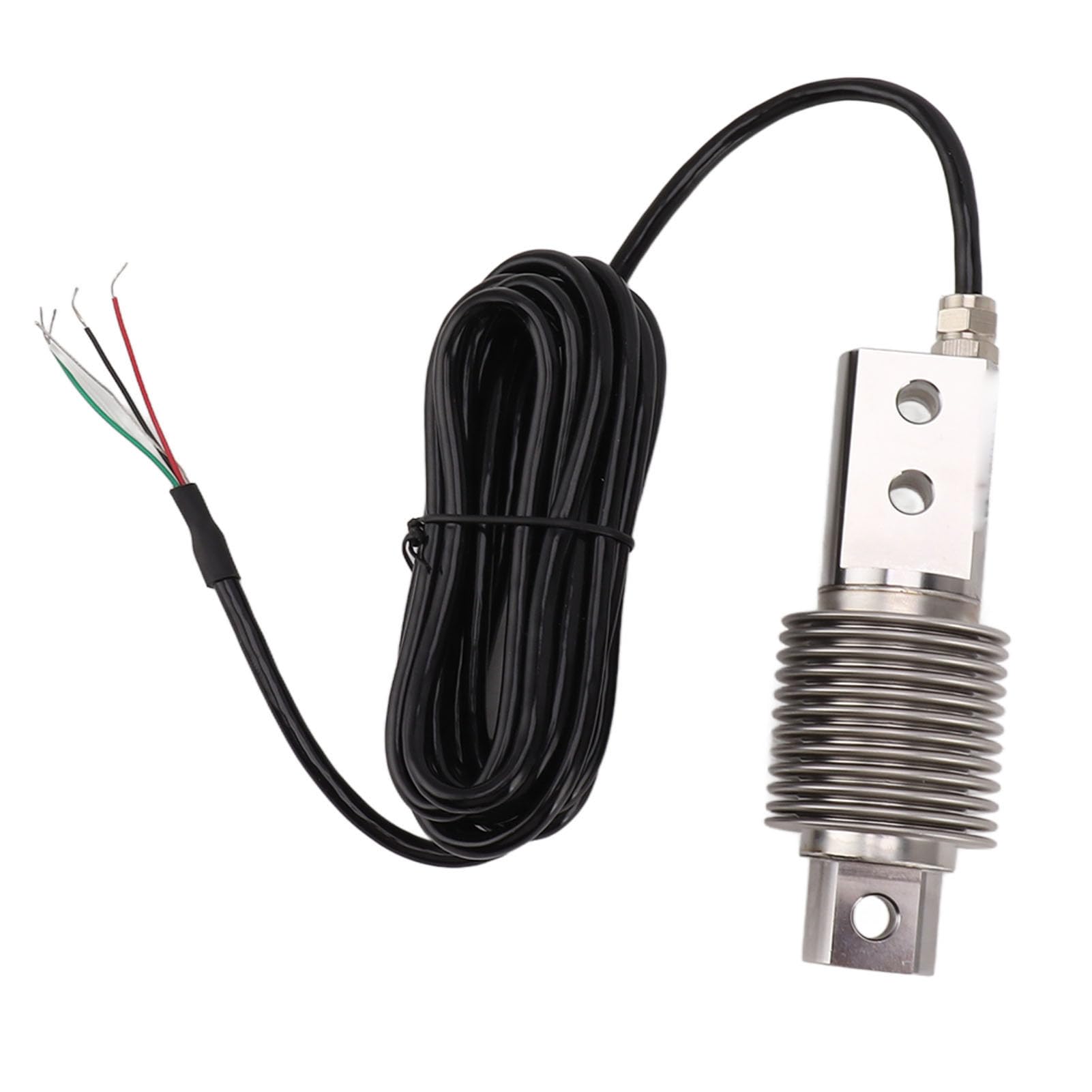

Wiring Method:
Power Supply: +red line ? black line
: +green line ? white line
Pull Force: +white line ? green line
Wire: Yellow, silver wire

packing list:
1 x Sensor

ProductSiteLaunchDate : 2024-03-17T15:49:35.424Z
UnspscCode : 46171600
