Specification
Brand : INSTRUKART
BulletPoint1 : Simple design | High accuracy | High repeatability | Long operation life time | Available with all major marine approvals | Suitable for alternating and direct current (AC and DC) | Interchangeable contact system
BulletPoint2 : Differential Pressure range: 0.2 to 3 bar | Ambient Temperature range: -50 °C to +70 °C | Regulation range: 0.1 to 1.1 bar | Pressure Connection Size: 3/8 | Pressure connection type: G
BulletPoint3 : Max Working pressure: 7 Bar; Max test pressure: 8 Bar; Regulation range (pe = effective pressure): 0.2 Bar to 3 Bar
BulletPoint4 : Enclosure rating IP: IP54,IP66 | Weight: 0.98 kg | Contact Function: SPDT (Single-pole changeover switch) | Reset Function: Auto | Electrical Connection: Screwed Cable Entry
BulletPoint5 : Supply Scope: 1 unit of RT110 and Instruction manual | Application: Air Conditioning System, Heavy Industry, Automobiles, Boilers, Steam turbine, Pumps, HVAC, etc.
CircuitType : 1-way
Color : Black
ConnectivityProtocol : Wired
ConnectorType : Npt Female
ControlMethod : touch
CurrentRating : 20 amps
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 7323207656928
IncludedComponents : 1 unit of RT110 and Instruction manual

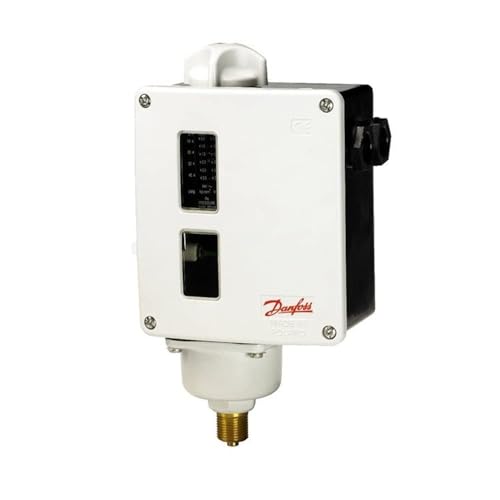

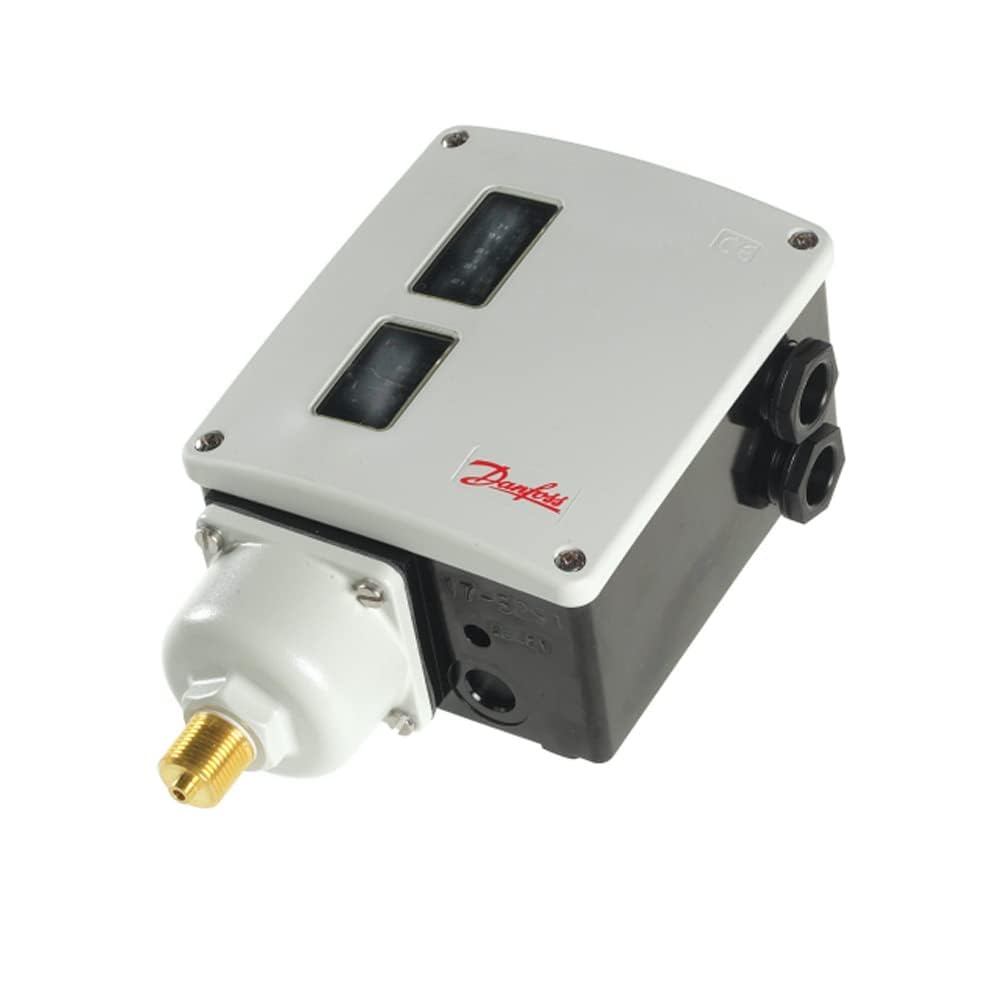

ItemName : 017-529166 Pressure Switch with Pressure Connection 3/8 G for Automobiles, Boilers, Steam Turbine, Water Pumps, HVAC | Model: (RT-110)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-pressure-switches
Manufacturer : INSTRUKART
Material : Metal
MeasurementAccuracy : ±0.1
ModelName : GRT998-12928
ModelNumber : RT-110
MountingType : Wall Mount
NumberOfItems : 1
NumberOfPositions : 1
OperationMode : manual
PartNumber : IK-0536369
ProductDescription : RT-110 Pressure Switch is a pressure-controlled, single-pole change-over switch where the contact position depends on the pressure in the connection port and the set value. The RT series consists of pressure switches, differential pressure switches and pressure switches for neutral zone regulation, all for general use within the industrial and marine segments. The series also covers safety pressure switches dedicated to steam boiler plants. The use of gold-plated contacts is also recommended in such installations, provided operation involves only a few switching cycles or signal currents and voltages. Applications are Heavy Industry, Refrigeration Compressor, Air Conditioning Systems, HVAC, etc. Features of RT 110 Pressure Switch Model: RT-110 Long operation lifetime High accuracy This Pressure Switch has Safety Integrity Level: SIL 2 according to IEC 61508 High repeatability Regulation Range: 0.2 to 3 Bar Differential Pressure: 0.08 to 0.25 Bar Working Pressure: 7.0 Bar Ambient Temperature: In general -50 – 70 °C Diaphragm version -10 – 70 °C TÜV approved -40 – 70 °C Supply Scope: 1 unit of RT110 and Instruction manual Application: Air Conditioning Systems, Heavy Industry, Automobiles, Boilers, Steam turbine, Pumps, HVAC, etc.
ProductSiteLaunchDate : 2024-08-11T17:52:29.301Z
Size : 33D NO0863012
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Push Button
TerminalType : Screw
UnitCount : 1
UnspscCode : 39122200
