Specification
Brand : Ace Instruments
BulletPoint1 : Measuring range: 0 to 232 PSI | Operating Temperature: -40 °C to +85 °C | Accuracy (incl. non-linearity, hysteresis and repeatability) ≤ ± 0.5% FS (typ.) & ≤ ± 1% FS (max.) | Standard Output Signal: 4-20 mA| Pressure Connection: G 1/4
BulletPoint2 : Hysteresis and repeatability: ≤ ± 0.1% FS | Thermal zero point shift: ≤ ± 0.1% FS / 10K (typ.) & ≤ ± 0.2% FS / 10K (max.) | Response time: < 4 ms | Overload pressure (static): 6 × FS (max. 1500 bar) | Electrical connection: DIN plug
BulletPoint3 : Burst pressure: 6 × FS (max. 2000 bar) | Power-up time: < 50 ms | Durability, P: 10 – 90% FS >10 × 106 cycles | Sensor Operating temperature: Normal: -40 to 85 °C & ATEX Zone 2: -10 to 85 °C
BulletPoint4 : Insulation resistance: > 100 MΩ at 500 V DC | Enclosure: IP65 | Net weight (depending on pressure connection and electrical connection): 0.2 – 0.3 kg | Temperature compensated and laser calibrated
BulletPoint5 : Supply Scope: 1 unit of MBS3000 pressure transmitter and Instruction manual | Applications: Pumps, Compressors, Pneumatics, Water treatment, Automobiles, Heavy Industries & HVAC.
FinishType : Finish
IncludedComponents : inc

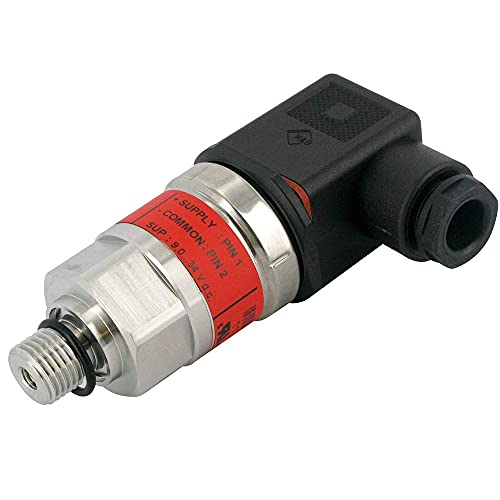

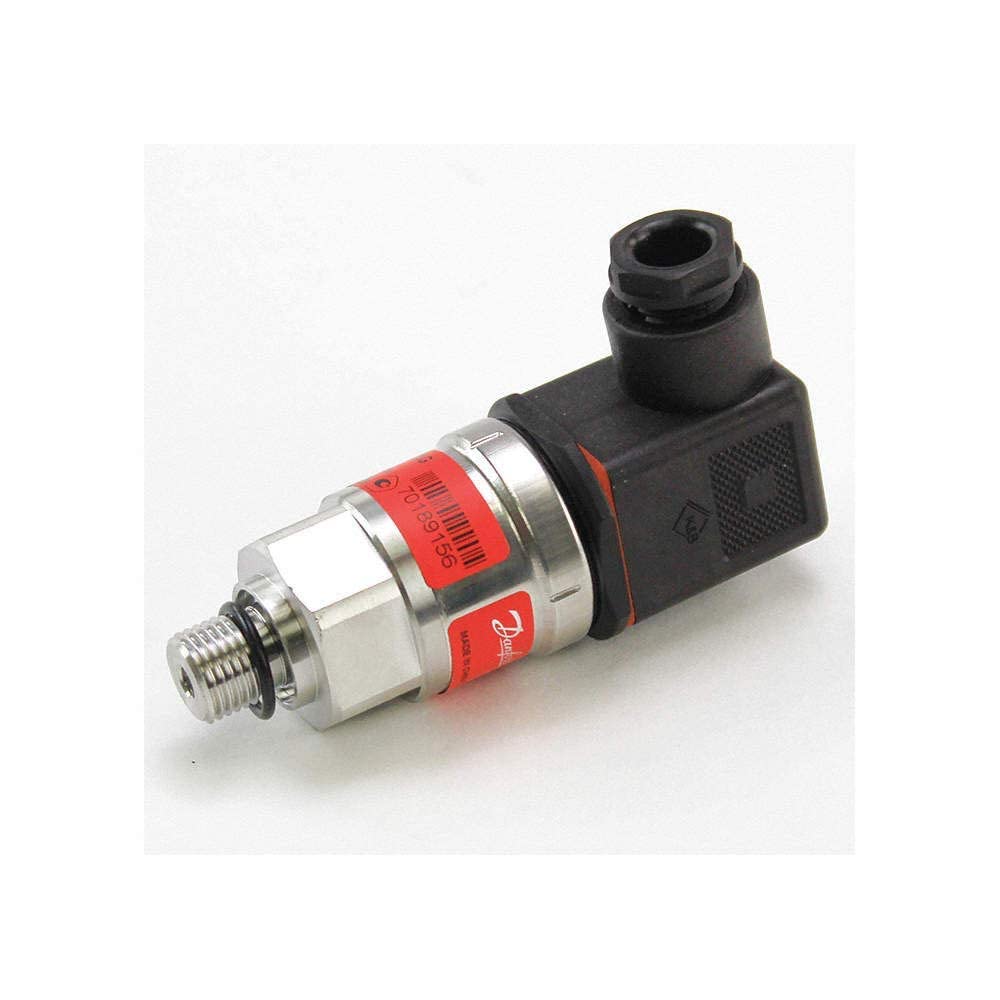

ItemName : Heavy Duty Pressure Transmitter Transducer Thread with 4-20mA for Industrial, Hydraulic Applications & HVAC | Model: MBS 3000 (1/2, 0-10 bar)
ItemPackageDimensions_Height : 1.5 inches
ItemPackageDimensions_Length : 6.2 inches
ItemPackageDimensions_Width : 2.7 inches
ItemPackageQuantity : 1
ItemTypeKeyword : pressure-transmitters
Manufacturer : Ace Instruments
Material : Material
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : IK-AMZ-Danfossmbs3000-V
PowerSourceType : PowerSource
ProductDescription :

MBS3000 Pressure Transmitter comes with wide range of pressure and electrical connections from 0 up to 600 bar also with different Standard Output signal as 4-20 mA, 0-5 V,1-5 V, 1-6 V, 0-10 V, 1-10V. It is designed for use in severe industrial and hydraulic environments. It also comes with Temperature compensated and laser calibrated & For use in zone 2 explosive atmospheres. It is designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions. Applications: Pumps, Compressors, Pneumatics, Water treatment, Automobiles, Heavy Industries & HVAC.

ProductSiteLaunchDate : 2023-06-30T06:19:53.115Z
Size : 1/2
Style : 0-10 bar
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 40000000
