Specification
Brand : YJYGR

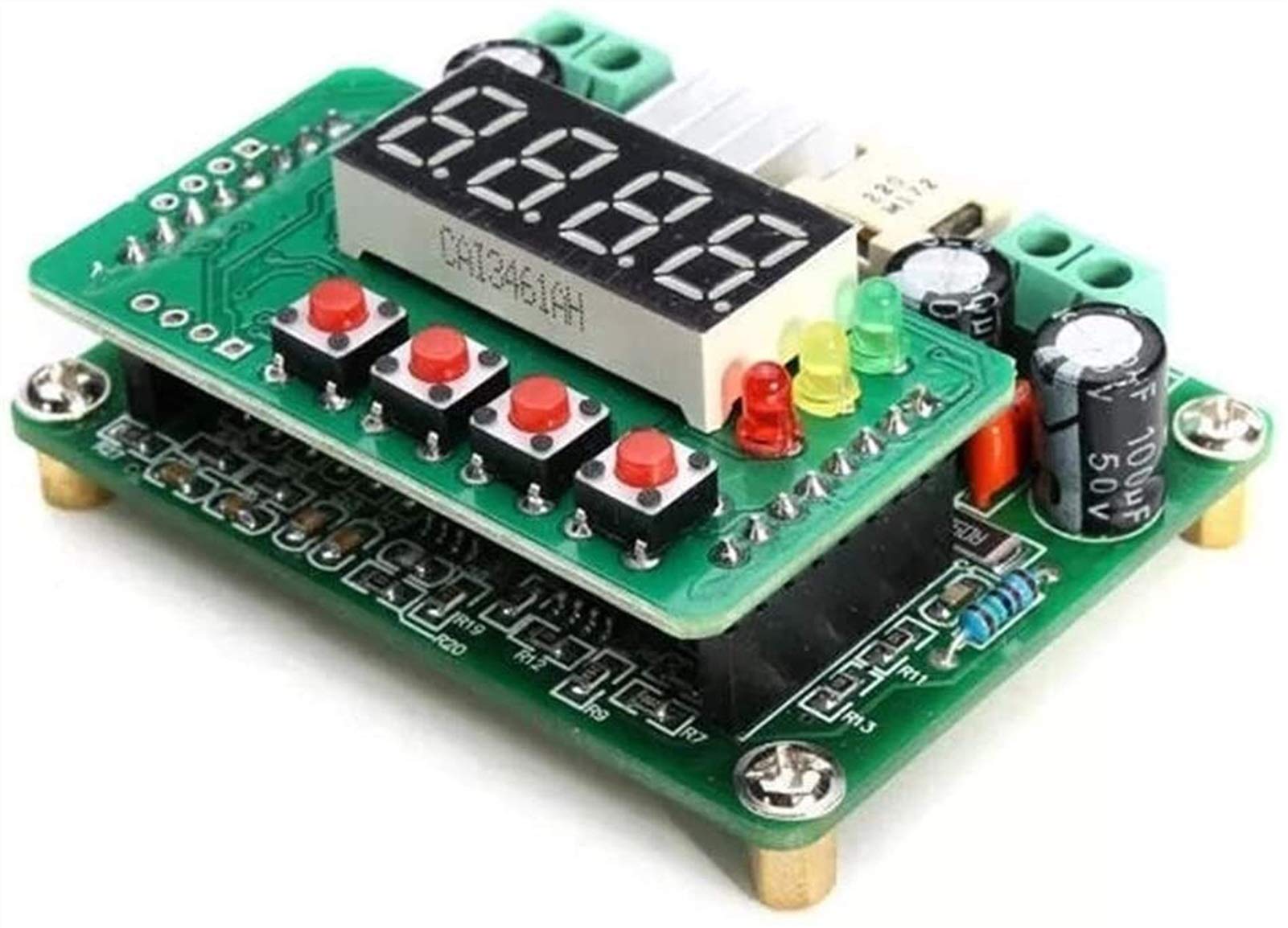

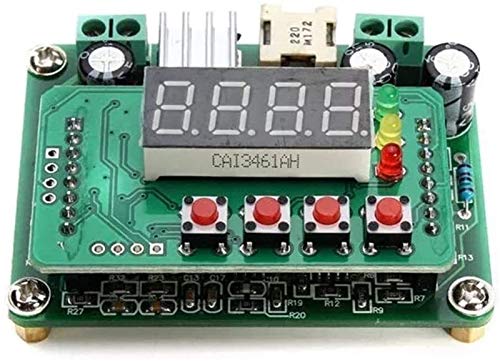

BulletPoint1 : B3603 DC-DC CNC buck module is a fully digital display buck module, small size, high power, high efficiency, stable.
BulletPoint2 : With four digit eight segment LED digital tube, you can display the voltage, current, power, capacity and other parameters in real time.
BulletPoint3 : Meanwhile, the module has an automatic output after power on and auto rotate display parameters function, etc., can be turned on or off according to need of use.
BulletPoint4 : Joined the high-speed micro-controller precision measurement and calculation, the output voltage and current value can be precisely regulated, built-in 40 groups memory locations, can be stored at any time, call up the parameters, easy to use.
BulletPoint5 : We are a professional Amazon store. If you have any questions, you can contact us at any time. We sincerely create a good buying experience for every customer who comes to each store.
Department : unisex-adult
ExternallyAssignedProductIdentifier : 8691415905299
ItemName : YJYGR Input Power Module B3603 CNC DC-DC Digital Step Down Buck High Efficiency Module Accessories Constant Voltage Current Module Board
ItemPackageQuantity : 1
ItemTypeKeyword : printer-memory
Manufacturer : YJYGR
Material : Plastic
NumberOfItems : 1
PartNumber : 652573979
ProductDescription : With the control of temperature and humidity, it can display the current temperature and humidity are displayed in real time.

With feature-limit alarm, relay working display function.

With protection against Stromumkehr.Die control does not work when the power supply is connected to the meter.

Description:

Module type: Non-isolated Buck

Input voltage: 6-40V (input voltage must 1.5V or more higher than output voltage)

Output voltage: 0-36V

Output current: 0-3A (maximum current is 3A, stable working current is 2A, continuous long high power working need to strengthen cooling)

Voltage regulator / display resolution: 0.01V

Power Display minimum resolution: 0.001W

Switching frequency: 150KHZ

Short circuit protection: Constant

Operating temperature: -40 ° C to + 85 ° C

Control: Digital Control + Digital Display

Conversion efficiency: 92%

Current Regulation / Display Resolution: 0.001A

Capacity Display minimum resolution: 0.001AH

Output ripple: <;;;= 50mv

Weight: 43g

Display description:

00.00: voltage value, 00.00 ~ 36.00V

0.000: current value, 0.000 ~ 3.000A

P.000, P0.00, P00.0, P000: power value, unit W, decimal point position changes with the power position changes. For example: P.123 means 0.123W, P1.23 means 1.23W, P12.3 means 12.3W, P102 means 102W.

C.000, C0.00, C00.0, C000: capacity value, unit AH, decimal point position is changed with the change of the capacity. For example: C.123 means 0.123AH, C1.23 means 1.23AH, C12.3 means 12.3AH, C123 means 123AH.

--0--, --1--, --2-: Special features 0, 1, 2

--y-: Open the special features

--n-: Close the sp
ProductSiteLaunchDate : 2021-08-31T02:19:17.082Z
Style : Manual
UnspscCode : 43211900
Wattage1 : 3 watts
Wattage2 : 2 watts
