Specification
Brand : Ace Instruments
BulletPoint1 : Model: AI-O2-Tx | Target Gases: Oxygen (O2) | Range: 0 to 100% O2 | Accuracy: +/-1% of measuring range | Display: 4 Digit, 0.56” High, 7 Segment Red LED Display
BulletPoint2 : Response Time: Approx. 15 seconds | Sensing Method: Galvanic Cell | Sensor Type: Galvanic Cell Type, quick response, no CO2 influence | Sensor Life: Approx. 5 years, after which the Oxygen Cell is directly replaceable
BulletPoint3 : Bar Probe Material: Stainless Steel 304 | Buzzer: Built – in Buzzer Alarm for low & high limit violation alert | Enclosure: ABS Plastic IP 65 Rated (However Sensor is not rated IP65) |
BulletPoint4 : Power Supply: 12-24VDC, by the way of 110-230 VAC, 50-60Hz Adaptor provided along with (Fits well in USA and European countries Also) | Output: 4-20mA Output | Communication: RS485 Communication | Relay: Potential Free NO/NC Contacts | Dimensions: 80 X 120 X 85 mm | Weight: 600 Grams"
BulletPoint5 : Supply Scope: 1 Unit of Oxygen Controller, Power Adapter, Instruction Manual and Factory Calibration Certificate | Applications: Certain Hydrocarbon Environments, Fermentation, Food and Beverage Packaging, Medical and Pharmaceutical, Bulk Drug manufacturing plants, Paper & Pulp Industry, Car Parking Lots and etc.,
ExternallyAssignedProductIdentifier : 9331375169353
ExternallyAssignedProductIdentifier1 : 0614160201759
ExternallyAssignedProductIdentifier2 : 614160201759

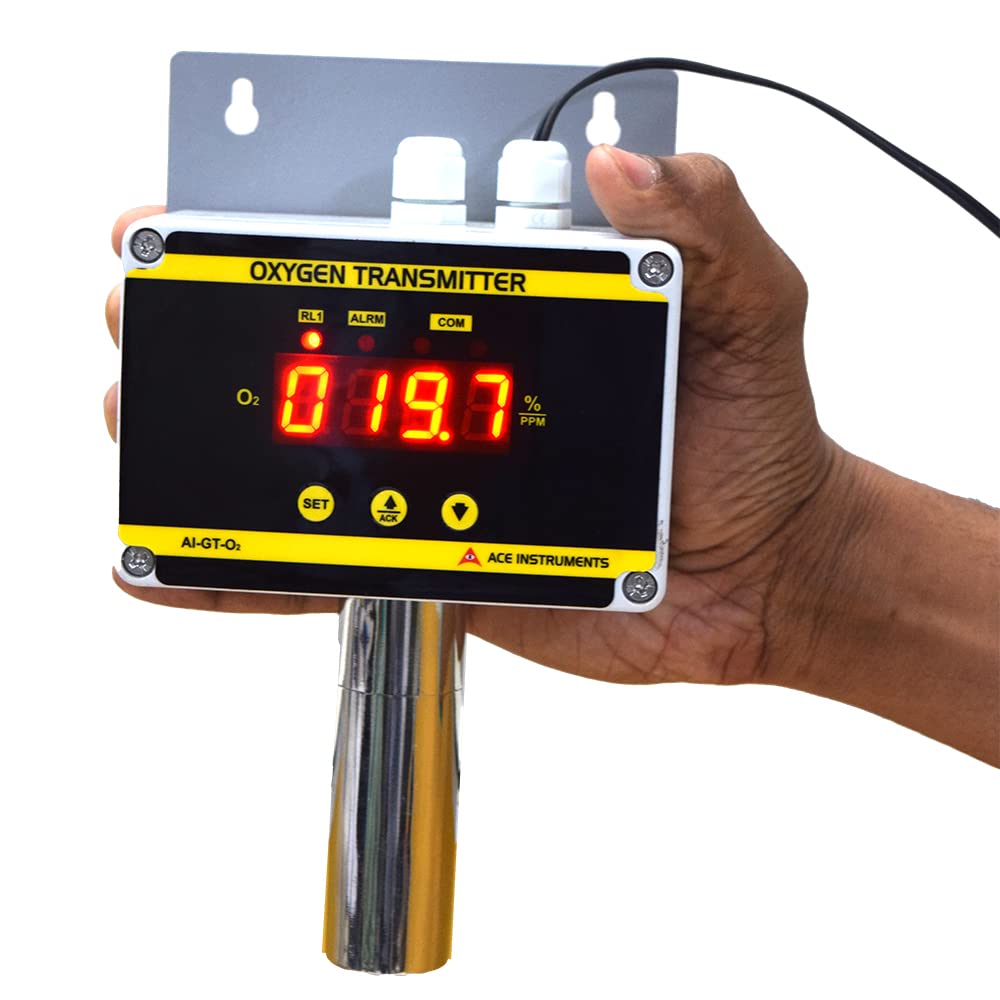

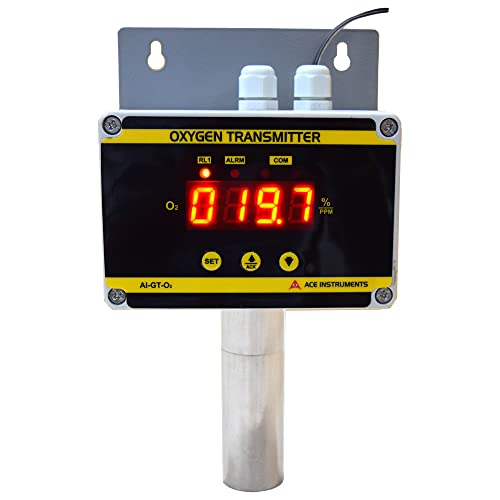

ItemName : Online Oxygen Controller (Range: 0 to 100% Vol.) for Fuel Tank Monitoring, Certain Hydrocarbon Environments, Paper & Pulp Industry Alongwith Factory Calibration Certificate Model: AI-O2-Tx
ItemTypeKeyword : process-controllers
Manufacturer : Ace Instruments
Material : Copper
MaximumPower : 15 horsepower
MeasurementSystem : Imperial
ModelNumber : AI 2 Tx
MotorHorsepower : 15.0 horsepower
NumberOfItems : 1
OperationMode : Automatic
PartNumber : IK-AI-O2-Tx
ProductDescription :

ACE AI-O2-Tx Digital Oxygen Monitor has an optional RS 485 Modbus Protocol Communication output to connect to PLC/SCADA/BMS software.

Features Of ACE Digital Oxygen Monitor:

• Wall Mounting Type IP 65 Phoenix Mecano ABS Plastic Enclosure
• Large & clear 4 digit red LED display, 7 segment type
• 1 Relay Output (NO/CO/NC)
• In-built buzzer for High & Low Limits Violation Alert with (Optional) RS 485 Modbus Communication for PC/SCADA/BMS/EMS/PLC Integration
• 4-20mA analog retransmission output (Standard)
• Easily field replaceable Sensor Module

ProductSiteLaunchDate : 2020-12-23T12:16:44.309Z
Style : 4-20mA Output + RS485 Communication
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 31162400
