Specification
Brand : Respicefinem
BulletPoint1 : [PREMIUM CNC Handwheel] Finely crafted with excellent quality and performance, ideal for CNC systems.
BulletPoint2 : [HIGH-QUALITY MATERIAL] Made of plastic, -, and long-lasting.
BulletPoint3 : [COMPATIBILITY] 5V, 100PPR, suitable for 98% of Chinese systems, ensuring your needs are met.
BulletPoint4 : [PORTABLE DESIGN] Small and compact for easy carrying and , providing convenience.
BulletPoint5 : [ENHANCED WORK EFFICIENCY] Well-made with excellent quality, offering a superior user experience and higher productivity.
Color : One Color
ExternallyAssignedProductIdentifier : 3002983697342
FitType : Universal

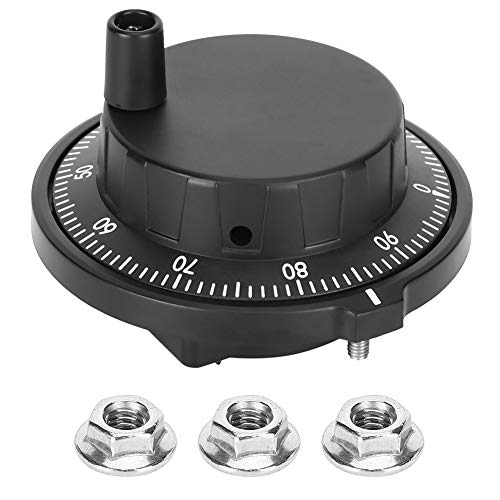

ItemName : CNC Electronic Manual Pulse Generator Hand Wheel 80mm 100PPR for Work Efficiency
ItemPackageDimensions_Height : 8 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : pulse-generators
Manufacturer : Respicefinem
ModelName : HHBL8I
ModelNumber : Respicefinem9r5xyo3mw7
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Respicefinem9r5xyo3mw7
ProductDescription : [PREMIUM CNC Handwheel] Finely crafted with excellent quality and performance, ideal for CNC systems.
[HIGH-QUALITY MATERIAL] Made of plastic, -, and long-lasting.
[COMPATIBILITY] 5V, 100PPR, suitable for 98% of Chinese systems, ensuring your needs are met.
[PORTABLE DESIGN] Small and compact for easy carrying and , providing convenience.
[ENHANCED WORK EFFICIENCY] Well-made with excellent quality, offering a superior user experience and higher productivity.

Spec:
Condition: Brand New
Item Type: Handwheel
Material: Plastic
Color: As the Picture Shown

Encoder Specification:
Power Supply Voltage: DC5±10%
Pulse Number: 100PPR
Output Voltage (VH) (Maximum): 3.8V
Output Voltage (VL) (Minimum): 0.3V
Output Current: 80mA
Model Format: A.B.A-.B-
Output : DIFF
Response Speed: 5KHz
Current Consumption: 50mA
Starting (Maximum): 150g
Axial Volume (minimum): R 2kg±10%
Rotation Life (minimum): 1KKR
Operating Temperature: 0℃/+50℃
Storage Temperature: -10℃/+70℃
Operating Humidity: 35-80%
Vibration : 0.5G
Heavy Strike : 2G
Wiring Table Specification:
Output Signal: A B V0 V+ A- B-

Terminal-Line Driver A: 1 2 3 4 5 6

Instruction:
YP800-100B-1L represents a large handwheel with a diameter of 80mm, the output is 100 pulses, the working voltage is 5V, and the output mode is long-line output. This product is suitable for CNC machine tools, two orthogonal output signals (A, B), 100 pulses , The output mode is long-line drive.


Package List：
1 x Handwheel1 x Instruction
3 x Terminal

Note：
1. The encoder is a precision instrument. It is forbidden to knock, drop, bump, etc. during installation. Improper installation or use will affect the performance and service life of the encoder.
2. Pay attention to the shaft load of the encoder during installation, and must not exceed the limit
ProductSiteLaunchDate : 2025-02-04T00:18:08.656Z
Size : Type 3
UnitCount : 1
UnspscCode : 26111600
