Specification
Brand : Dioche
BulletPoint1 : [Versatile Output] Generates square with adjustable pulse for various applications.
BulletPoint2 : [Compact and Stable Design] Practical design ensures in different equipment setups.
BulletPoint3 : [Flexible Frequency Control] Optional range gradation for continuous adjustability using shorting cap.
BulletPoint4 : [Clear Led Indication] Output with led indication, led turns off when low, blinks at low frequency for visibility.
BulletPoint5 : [Wide Compatibility] Suitable for multiple occasions, making it ideal for a variety of equipment uses.
Color : Blue
ExternallyAssignedProductIdentifier : 8258518064607
IncludedComponents : 1pc Adjustable Pulse Signal Generator Module

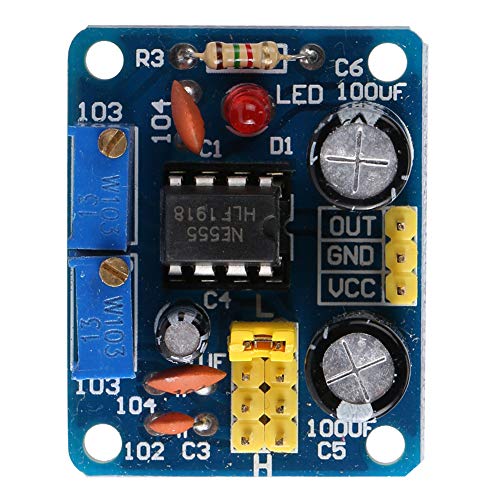

ItemName : NE555 Pulse Frequency Generator, Adjustable Duty Cycle Generator Board Module, Output Square Signal, Compact and Practical Design, More Stable with LED Indication for
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : pulse-generators
Manufacturer : Dioche
Material : Metal
MeasurementAccuracy : /
ModelName : Diochek1vi02agn4
ModelNumber : Diochek1vi02agn4
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Diochek1vi02agn4
ProductDescription : [Versatile Output] Generates square with adjustable pulse for various applications.
[Compact and Stable Design] Practical design ensures in different equipment setups.
[Flexible Frequency Control] Optional range gradation for continuous adjustability using shorting cap.
[Clear Led Indication] Output with led indication, led turns off when low, blinks at low frequency for visibility.
[Wide Compatibility] Suitable for multiple occasions, making it ideal for a variety of equipment uses.

Spec:

Item Type:Pulse Frequency Generator
Size:2.9 x 3.6cm / 1.14 x 1.42in
Fixing Hole Distance:22.5 x 30.5mm / 0.89 x 1.2in
Main Chip:NE555
Input Voltage:5V~15VDC.When 5V is supplied, the output current can be around 15mA; when 12V is supplied, the output current can be around 35mA.
Weight:Weight: 10 g / 0.35 oz(approx.)
Input Current:>=100mA
Output Amplitude:4.2V V, PP to 11.4V V, PP. (The output amplitude will be different depending on the input voltage)
Output current: ≥15mA (5V power supply, V, PP is greater than 50%), ≥35mA (12V power supply, V, PP is greater than 50%)
Output Frequency:
Low Frequency: 1Hz ~ 50Hz
Intermediate Frequency: 50Hz ~ 1kHz
Medium And : 1KHz ~ 10kHz
: 10 KHz ~ 200 KHz
Period T = 0.7 (RA + 2RB) C
RA and RB are adjustable from 0 to 10K;
C=0.001UF in low frequency gear;
C=0.1UF in the intermediate frequency file;
Medium and file C=1UF;
C=100UF in , so the frequency of the waveform can be calculated by yourself.



Package List:
1 x Generator


ProductSiteLaunchDate : 2024-10-08T10:29:25.088Z
Size : 29.4cmx18.3cmx32.4cm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 41113600
