BulletPoint1 : Extensive Frequency Range: : This NE555 Pulse Frequency Generator covers an output frequency range from 1Hz to 200kHz, including Low (1Hz-50Hz), Intermediate (50Hz-1kHz), Medium and High (1kHz-10kHz), and Frequency (10kHz-200kHz) bands
BulletPoint2 : Flexible Adjustment Options: : Featuring adjustable RA and RB resistors (up to 10KΩ) and capacitors ranging from 0.001UF to 100UF, this module allows for fine-tuning of the output form's frequency and duty cycle. Users can easily calculate the period T = 0.7(RA + 2RB)C
BulletPoint3 : Performance: : Designed with a compact and practical form factor, this generator delivers stable performance across its input voltage range of 5V to 15VDC. It provides output currents of 15mA at 5V and 35mA at 12V, ensuring consistent operations in various applications
BulletPoint4 : User-Friendly Indicators: : Equipped with an LED indicator that visually shows the output frequency status, this module makes monitoring easier and more convenient. When the LED is off, the output is low; when it blinks, it indicates low-frequency output
BulletPoint5 : Versatile Applications: : Ideal for educational purposes, hobbyist projects, or professional use, this pulse frequency generator is suitable for developing circuits that require adjustable square signals. Its wide applicability ensures it fits seamlessly into multiple setups

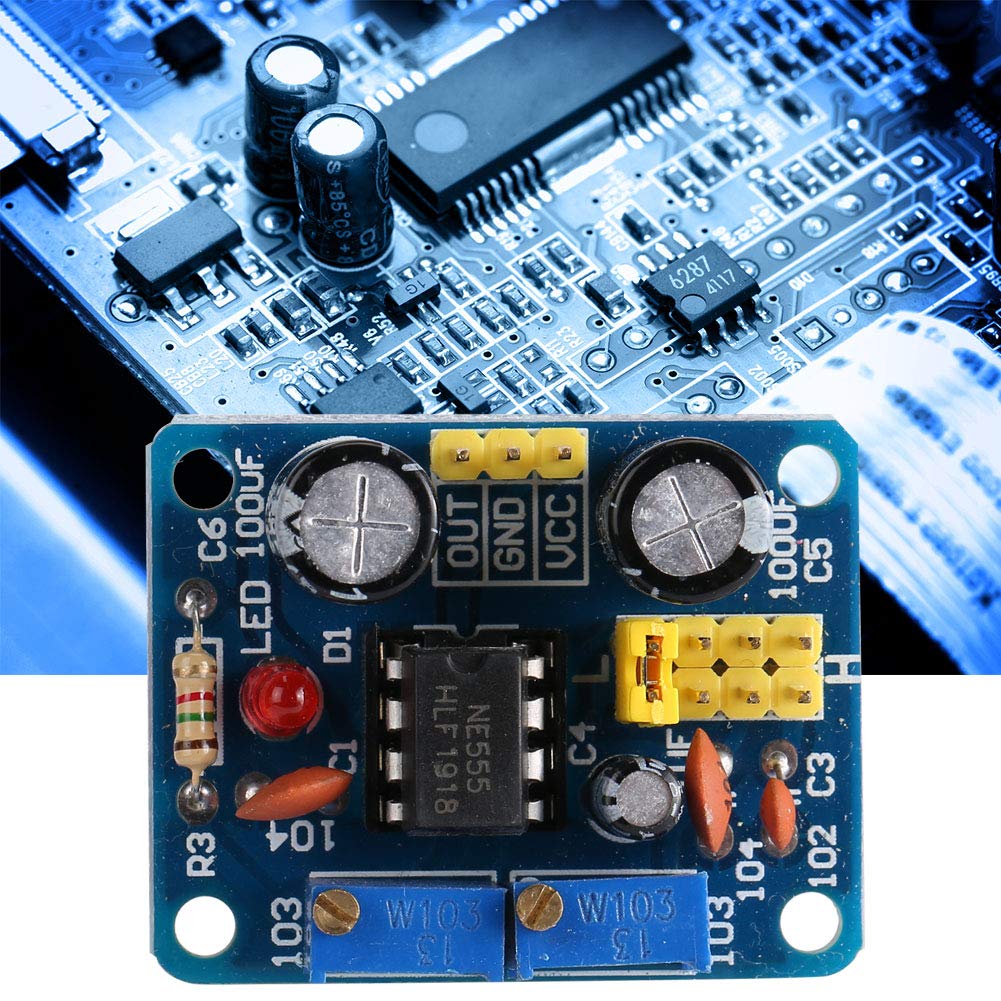

ItemName : Respicefinem NE555 Pulse Frequency Generator Adjustable Duty Cycle Signal Module 1Hz-200kHz Output for Electronics Projects and Experiments
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemTypeKeyword : pulse-generators
Manufacturer : Respicefinem
ModelNumber : Respicefinemkqpcngv9au
PartNumber : Respicefinemkqpcngv9au
ProductDescription : Spec:
Item Type:Pulse Frequency Generator
Size:2.9 x 3.6cm / 1.14 x 1.42in
Fixing Hole Distance:22.5 x 30.5mm / 0.89 x 1.2in
Main Chip:NE555
Input Voltage:5V~15VDC.When 5V is supplied, the output current can be around 15mA; when 12V is supplied, the output current can be around 35mA.
Weight:Weight: 10 g / 0.35 oz(approx.)
Input Current:>=100mA
Output Amplitude:4.2V V-PP to 11.4V V-PP. (The output amplitude will be different depending on the input voltage)
Output current: 15mA (5V power supply, V-PP is greater than 50%), 35mA (12V power supply, V-PP is greater than 50%)

Output Frequency:
Low Frequency: 1Hz ~ 50Hz
Intermediate Frequency: 50Hz ~ 1kHz
Medium And Frequency: 1KHz ~ 10kHz
Frequency: 10 KHz ~ 200 KHz

Period T = 0.7 (RA + 2RB) C
RA and RB are adjustable from 0 to 10K;
C=0.001UF in low frequency gear;
C=0.1UF in the intermediate frequency file;
Medium and frequency file C=1UF;
C=100UF in, so the frequency of the form can be calculated by yourself.
