Specification
Brand : Enerpac
BulletPoint1 : Hydraulic air pump for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately) in settings where compressed air is the preferred power source
BulletPoint2 : Advances, releases, or holds a single-acting cylinder or powers a hydraulic tool
BulletPoint3 : Maximum operating pressure of 10,000 pounds per square inch (psi) at 85 psi inlet pressure
BulletPoint4 : Two-speed pump requires fewer cycles to move a load than a similarly rated single-speed pump, increasing productivity
BulletPoint5 : Pump can be remotely controlled by pendant switch with a 15-foot cord
Color : Stainless Steel
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 662005118939
ExternallyAssignedProductIdentifier2 : 0662005118939
ExternallyAssignedProductIdentifier3 : 00662005118939
FitType : Universal Fit
GpsrSafetyAttestation : 1
IncludedComponents : Hydraulic Pump,Air Powered,1/2 Gal
ItemDisplayWeight : 22 pounds

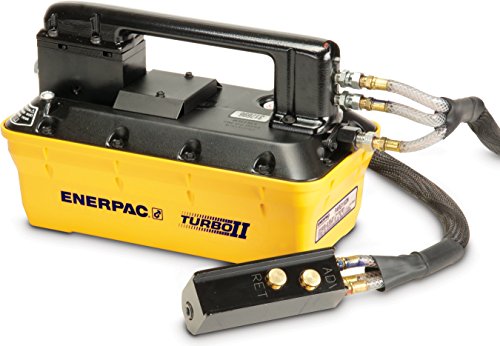

ItemName : Enerpac PARG-1102N Turbo II Air Hydraulic Pump with 2 Liter Reservoir and Remote Pendant
ItemPackageDimensions_Height : 23.368 centimeters
ItemPackageDimensions_Length : 39.878 centimeters
ItemPackageDimensions_Width : 31.75 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-pumps
Manufacturer : Enerpac
Material : Aluminum
MaximumFlowRate : 22.1 gallons_per_minute
MaximumPressure : 10000 pounds_per_square_inch
ModelName : 9107A
ModelNumber : PARG-1102N
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Automatic
PackageLevel : unit
PartNumber : PARG1102N
PowerSourceType : Ac/dc
ProductDescription :

Product Description

Specifications:

 Input voltage: AC 110V 60HZ

Flow rate: 0.6L/min(＞7Mpa) - 5L/min(＜7Mpa)

Working pressure: 290PSI - 10152PSI(2Mpa - 70Mpa)

Oil capacity: 7L

Motor power: 750W

Motor speed: 1400r/Min

Machine size: 360X280X440mm(14.2”x11”x17.3”)

 N.W.: 26kg

Operation Instruction

1. Open the filler before use, the electric pump and power connections before oiling, then press down the black button which next to the motor to open, press the manual operation switch (up), after a few air pressure, press the manual operation switch (down), turn off the motor, connected to tubing. (The pressure should not exceed 63Mpa when air pressure, in order to avoid damage)

2. Open the motor after the pump connect with the equipment, and placed the operation valve in pressurized position after the motor rotates 1-2 minutes, this moment the hydraulic oil come into the cylinder to perform the work, and the output of the hydraulic oil will increases with the load on their own booster until 63Mpa.

3. The oil pump regular working temperature between 10℃~50℃,when find the oil temperature≥70 ℃ should stop using after continuous working under high pressure, let it self-cooling before use.

4. The pressure of the relief valve and safety valve have been set before the pump leave the factory, the user can not arbitrarily increase the pressure,could only reduce it according to the actual working pressure, that can improve the life of the pump station.

 5. The motor must have reliable grounding.

Package included:

 1 X Electric Driven Hydraulic Pump

 1 X Oil Hose(1.8M)

 1 X Quick Connector

ProductSiteLaunchDate : 2012-03-08T00:00:01-00:00
Size : 28
StreetDate : 2013-09-13T00:00:01Z
Style : Industrial
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40151500
WarrantyDescription : 2 year limited warranty
