Specification
AgeRangeDescription : Adult
Brand : POENVFPO
BulletPoint1 : Triple Feed Patch Antenna: The triple feed patch array antenna is a directional circularly polarized antenna optimized based on the original triple feed patch antenna. It uses a set of seven coupled metal patches and better and more expensive high frequency patch, resulting in significantly higher gain. This type of antenna is not suitable for general use because the beam width is quite narrow, but it performs well for long distance flights.
BulletPoint2 : Extremely Low Sidelobes: Almost all can be concentrated on the main lobe. Although some gain was sacrificed, the width of the main lobe was increased.
BulletPoint3 : Excellent Radiation Efficiency: Unlike other patch antennas on fiberglass substrates, there is a significant loss of efficiency in the frequency band. Moreover, the feed network losses of many entire antennas are significant. But the design of the coupling patch can reduce the loss of the feed network.
BulletPoint4 : 7 Coupled Patch and Excellent Shaft Ratio: This triple feed patch antenna uses 7 coupled patch, so it can achieve very high gain. Not only perpendicular to the flat plate, but also offset the center point.
BulletPoint5 : High Gain: Although the theoretical gain value has not been reached, this is because maximizing gain leads to high sidelobes and low axial ratio.
Color : One Color
CpsiaCautionaryStatement : no_warning_applicable
EducationalObjective : Language Skills
ExternallyAssignedProductIdentifier : 7774580272937
Impedance : 50 ohm

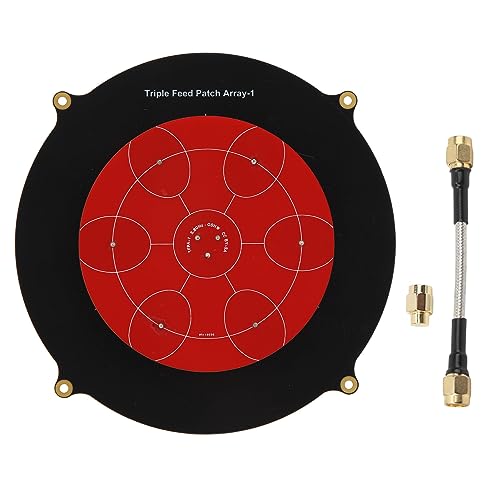

ItemName : Triple Feed 7 Coupled Patch Antenna, Directional Circularly Polarized Antenna for RC Drone
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 17 centimeters
ItemPackageDimensions_Width : 17 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-antennas
Manufacturer : POENVFPO
ManufacturerMaximumAge : 216
ManufacturerMinimumAge : 36
ModelName : POENVFPO57pxr1dgme
ModelNumber : POENVFPO57pxr1dgme
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : POENVFPO57pxr1dgme
ProductDescription : Specification:
Item Type: Triple Feed Patch Antenna
Product Material: PCB
Product Color: Black
Weight: Approx. 78g / 2.8oz
Frequency Range (MHz): 5G-6G
Polarization Method: RHCP/LHCP
Gain: 14dBi
Lobe Width (Degree): H: 360 V: 60
Input Impedance: 50Ω
Connector Type: SMA
Product Diameter: Approx. 150mm / 5.9in
Applicable Model: RC Fixed Wing, , Etc

Package List:
1 x Antenna
2 x Accessories
ProductSiteLaunchDate : 2024-08-05T06:55:50.086Z
Size : One Size
TargetAudienceKeyword : Unisex Children
TargetGender : unisex
Theme : Sports
UnitCount : 1
UnspscCode : 43221700
