Specification
AgeRangeDescription : Adult|Kid
Brand : RADIOMASTER
BulletPoint : Team Losi Racing Carbon Receiver Mounting Plate: 22X-4, TLR331060
BulletPoint1 : The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiencty cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.
BulletPoint2 : Featuring an OLED display, directional menu key and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.
BulletPoint3 : The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.
BulletPoint4 : If you need receivers ,choose the Ranger Combo, which includes the following items: 2 * RP1 ExpressLRS 2.4ghz Nano Receiver; 1 * RP2 ExpressLRS 2.4ghz Nano Receiver.
Color : Multiple
CpsiaCautionaryStatement : no_warning_applicable
Edition : Ranger
EducationalObjective : RADIOMASTER Ranger ELRS Module
ExternallyAssignedProductIdentifier1 : 0748664198106
ExternallyAssignedProductIdentifier2 : 748664198106
GpsrSafetyAttestation : 1
IncludedComponents : 1*
ItemName : RadioMaster Ranger 2.4GHz ELRS Module for Radiomaster TX16S MKII TX12 MKII (Ranger)
ItemPackageDimensions_Height : 1 inches
ItemPackageDimensions_Length : 4 inches
ItemPackageDimensions_Width : 3 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-receivers
Manufacturer : Hobbies RC
ManufacturerMaximumAge : 110
ManufacturerMinimumAge : 216
Material : Plastic
ModelName : RADIOMASTER Ranger ELRS Module
ModelNumber : TLR331060
NumberOfItems : 1
OperationMode : Automatic
PackageLevel : unit
PartNumber : HP0157.0033-WXFF
PowerSourceType : Battery
ProductDescription : Features
Rugged CNC Case
High efficiency cooling system
OLED Display
Wifi and Bluetooth support
Built in Accelerometer
Packet rates up to F-1000Hz
5 Direction Nav key and customizable short cut buttons
Up to 1 Watt Power output
Specification
Item: Ranger Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included
OLED screen: 64x128px
Wifi Support: Yes
Bluetooth support: Yes
3 Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built in RGB light strip
XT30 Power supply voltage: DC 6V - 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)

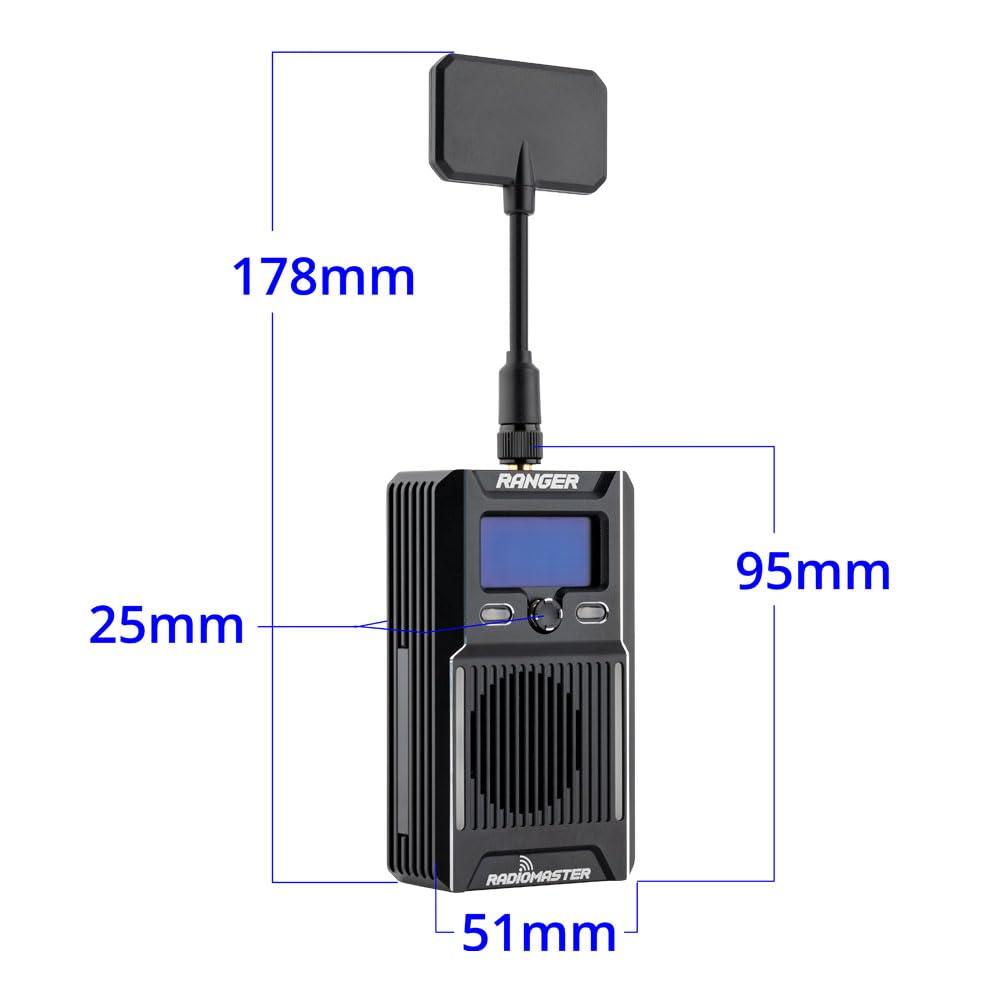

Dimension: 178*51*25mm (with Moxon antenna) / 95*51*25mm (without antenna)

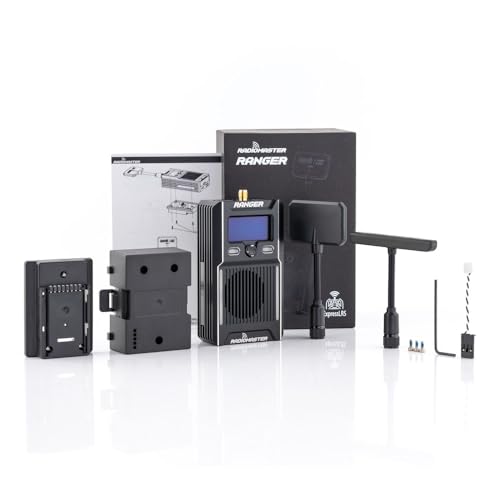

Package
1 * RANGER Module
1 * Futaba CRSF socket cable
1 * JR Adapter
1 * Nano Adapter
1 * T Antenna
1 * Moxon Antenna
1 * Hexagon socket screwdriver
3 * M2*5 Screws
1 * Assembly Manual
Need receivers too? Choose the Ranger Combo, which includes the following items:
2 * RP1 ExpressLRS 2.4ghz Nano Receiver
1 * RP2 ExpressLRS 2.4ghz Nano Receiver

ProductSiteLaunchDate : 2024-06-14T07:48:23.656Z
SafetyWarning : Please read the instruction manual before use
StreetDate : 2022-09-24T00:00:01Z
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudienceKeyword : Unisex Adult
TargetAudienceKeyword1 : Men
TargetAudienceKeyword2 : Unisex
TargetAudienceKeyword3 : Women
TargetGender : unisex
Theme : anime
UnspscCode : 60140000
