Specification
AgeRangeDescription : Adult
Brand : Xiangtat
BulletPoint1 : 【Excellent Anti-interference】Excellent anti-interference performance and stable transmission make the T12D radio control range up to 2.5 miles(4km). All 12 channels of T12D with 3ms fast response.
BulletPoint2 : 【Main External Modules Support】Supports ELRS(ExpressLRS), TBS Crossfire, and other mainstream long-range modules. TBS Crossfire Nano TX, BETAFPV ELRS Nano TX can be inserted directly.
BulletPoint3 : 【12 Fully-proportional Channels】Rich user-defined functions can support helicopters, fixed-wings, gliders, multi-rotors, racing drones, football drones, engineering vehicles, racing boats, robots, lawnmowers, bait boats, mechas, and other models.
BulletPoint4 : 【User-Friendly Interface】A 2.8-inch color screen with a navigation menu makes user setting changes easy. The optional language menu includes English, German, French, Russian, Chinese, Japanese, Spanish, Korean, Thai, and Polish.
BulletPoint5 : 【Programmable Mix Control】All 12 channels can be programmed to any advanced setting. Multi mixes such as V-shaped tail models, Delta-wing mix, track mix, gyro mode, rate/curve, etc. can be turned on with one button, without complicated parameter settings.
BulletPoint6 : 【Anti-polarity Connect Protection】The Built-in voltage protection software technology of RadioLink ensures both the transmitter and receiver are protected from a reverse polarity connection. Supports 2s-4s LiPo battery/8*AA/18650 Lipo battery to power on T12D.
Color : One Color
CpsiaCautionaryStatement : no_warning_applicable
EducationalObjective : Transmitter
ExternallyAssignedProductIdentifier : 3054034003640
ExternallyAssignedProductIdentifier1 : 0765477854623
ExternallyAssignedProductIdentifier2 : 765477854623
IncludedComponents : Transmitter

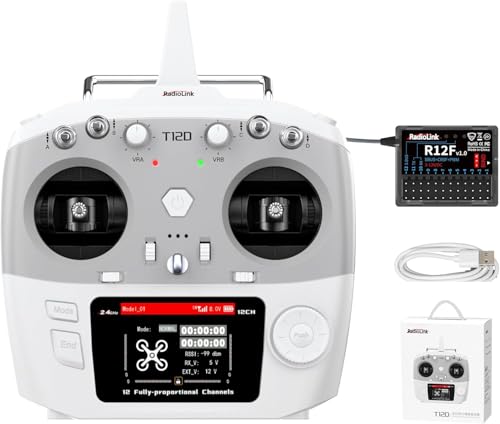

ItemName : Xiangtat Radiolink T12D ELRS 12 Channels RC Transmitter and R12F Receiver, Long-Range Module Support, 2.4GHz Remote Radio Controller for RC Airplane, Drone, Car, Boat and More (Mode 2)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-radio-transmitters
Manufacturer : Xiangtat
ManufacturerMaximumAge : 880
ManufacturerMinimumAge : 200
Material : Plastic
ModelName : Transmitter
ModelNumber : WPHBMMF356
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Transmitter
ProductDescription : T12D Transmitter Specifications:

Channels: 12 fully proportional channels, 5-12 channels can be programmed

Mode: Mode 1 or Mode 2

Signal: PWM&SBUS&PPM

Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)

Channel Bands width:400KHz

Spectrum: FHSS 67 channels pseudo-random frequency hopping/CRSF

Operating Systems: freeRTOS+LVGL GUI

Modulation Mode：GFSK

Adjacent Channel rejection: >36dBM

Transmission Power:<100mW(20dBM)

Operating Current: DSSS&FHSS < 90mA@12V

CRSF Depends on the transmission power select

Operating Voltage: 7.4~18.0V(8pcs AA battery, a 2S-4S LiPo or 18650 Lithium battery)

Operating Current: 100mA(±10mA)@8.4VDC

Type-C Port Input Voltage: 5 V(T12D also can powered by computer or mobile power bank via Type-C cable)

Type-C Port Input Current: 500mA

Type-C Port Output Voltage: 4.6V-5.0V

Type-C Port Output Current: Maximum 1A

Control Distance:

① FHSS: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)

② CRSF: Depends on the RX and TX of the long-range module

Screen: 2.8 inches 16 colorful screens, 320*240 pixels

Size:174.3*206.9*106.9mm

Weight: 536g

Adaptable Models: Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot

Compatible receivers:R12F(Std), R16F,R8EF，R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, R4F

Trainer Function and Simulator Mode: Support


R12F Receiver Specifications

Signal: SBUS+CRSF+PWM

Channel: 12 channels

Control Distance: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)

Operating Voltage: 3-12V

Operating Current: 37±3mA@5V

Output Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)

Channel Resolution:4096 with regular jitter of 0.25us

Adaptable Models: Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot

Control Distance: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)

Upgrade Online: with a Type-C cable (for data transmission) connecting the R12F to the computer, the latest cutting-edge functions can be easily added without any extra device.

Response Latency: When bound to RC8X/T16D/T12D, 3ms, 4ms, and 14ms can be selected. If bound to other transmitters, it defaults to 14ms.

Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping

Dimensions:35.6*25*13.6(1.4"*0.98"*0.54")

Weight: 11.8g

Antenna Length: 205mm

Water Splash Proof: The waterproof grade is IPX4

Compatible transmitter: T16D/T12D/T8FB/T8S/RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/RC4GS


Package Included:

T12D(Transmitter) x1

R12F(Receiver) x1

Type-C Cable (for Upgrade) X1

Instruction Manual x1
ProductSiteLaunchDate : 2025-03-11T06:28:26.331Z
SafetyWarning : Transmitter
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudienceKeyword : Unisex Children
TargetGender : unisex
UnitCount : 1
UnspscCode : 60141000
