Specification
Brand : yuenhoang
BulletPoint : SIM900A Dual-band 900/1800 MHz GSM GPRS SMS Transmission Module Support PBCCH for
BulletPoint1 : - Input voltage: DC 12V
BulletPoint2 : - Transmission frequency: 1.5G
BulletPoint3 : - Channel: 12CHS
BulletPoint4 : - Transmitter working current: 400mA. Receiver working current: 250mA
BulletPoint5 : - Used for RC drone FPV, security monitoring, video sharing
Color : Only Transmitter
CpsiaCautionaryStatement : no_warning_applicable
ExternallyAssignedProductIdentifier1 : 0733561923227
ExternallyAssignedProductIdentifier2 : 733561923227
IncludedComponents : Transmitter Receiver Module
ItemName : yuenhoang 12CH 1.5G 1.5W Transmitter Receiver Module DC12V Wireless Audio Video Transmitter Receiver Audio Carrier 5.5M 6.0M DIY Spare Parts for RC Drone FPV Security Monitoring (only Transmitter)
ItemPackageDimensions_Height : 2 inches
ItemPackageDimensions_Length : 8 inches
ItemPackageDimensions_Width : 5 inches
ItemTypeKeyword : hobby-rc-radio-transmitters
Manufacturer : yuenhoang
ManufacturerMinimumAge : 12
Material : composite material
ModelName : Transmitter Receiver Module
NumberOfItems : 1
PartNumber : 28809
ProductDescription :

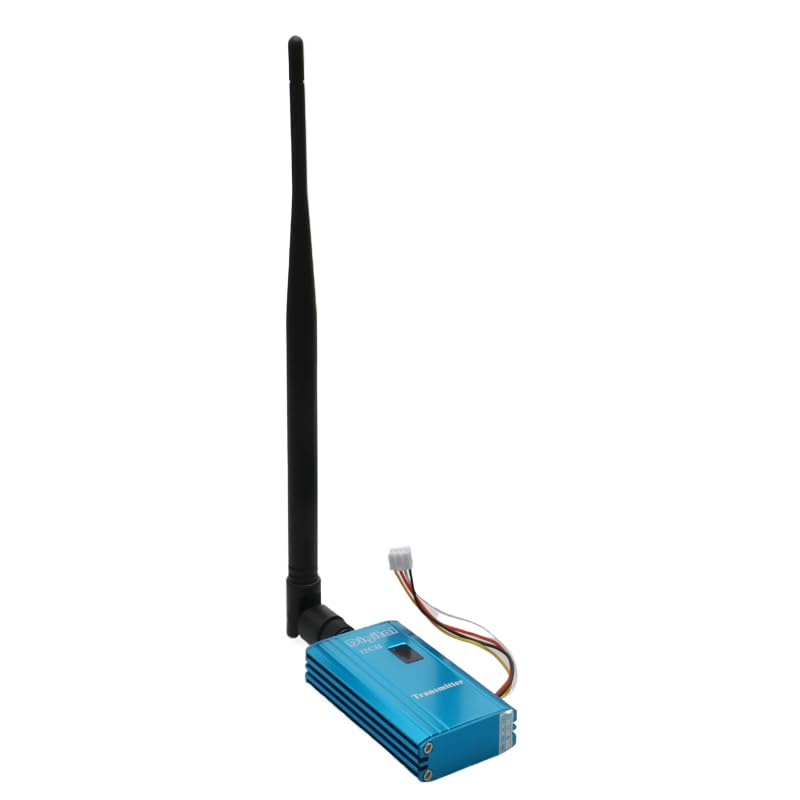

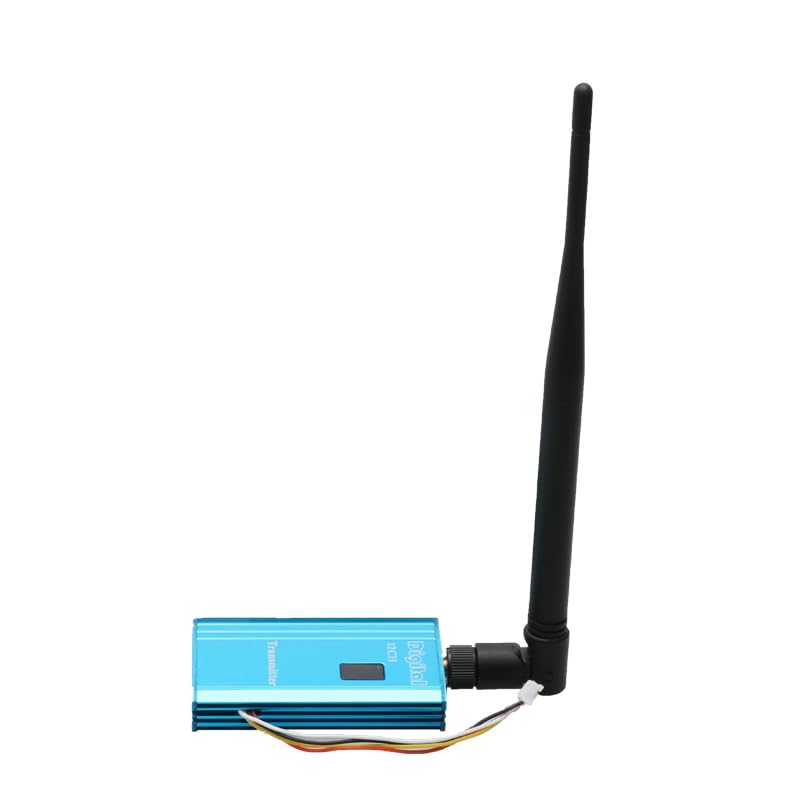

yuenhoang 12CH 1.5G 1.5W Transmitter Receiver Module DC12V Wireless Audio Video Transmitter Receiver Audio Carrier 5.5M 6.0M DIY Spare Parts for RC Drone FPV Security Monitoring

Transmitter Specification:

- Input voltage: DC 12V

- Working current: 400mA

- Transmission frequency: 1.5G

- Channel: 12CHS

- Transmission (Output) power: 1500mW

- Video input/Video modulation: 1 Vp-p (FM)

- Audio input/Audio modulation: 1 Vp-p (FM)

- Audio carrier: 5.5M 6.0M

- Transmission distance.(open Space): 1000M-2000M

- Working temperature: -10℃ ~ +50℃

- Dimension: 73*40*13mm

- Weight: about 95g (with antenna)

Receiver Specification:

- Input voltage: DC 12V

- Working current: 250mA

- Transmission frequency: 1.5G

- Channel: 12CHS

- Video input/Video modulation: 1 Vp-p (FM)

- Audio input/Audio modulation: 1 Vp-p (FM)

- Audio carrier: 5.5M 6.0M

- Sensitivity: -85dBm

- Working temperature: -10℃ ~ +50℃

- Dimension: 115*80*21mm

- Weight: about 131g (with antenna)

Full Kit Package Including: 12-CH Receiver, Transmitter, antennas, AV cables 12V DC Power

Frequency:

- 1.5G Series:

1.405G 1.430G 1.455G 1.480G

1.505G 1.530G 1.555G 1.580G

1.605G 1.630G 1.655G 1.680G

Installing:

1. Use 12V 800mA power

2. On the receiver's face, have a digital display, it's show receiver's frequency on this digital;

display, 0, 1, 2, 3 is means 0.9G CH1, CH2, CH3, CH4, and 4, 5, 6, 7 is means 1.2G CH1, CH2, CH3, CH4, and 8, 9, H, C is means 1.3G CH1, CH2, CH3, CH4;

3. Push the CONTROL button, can change the receive frequency and channel;

4. Make sure the transmitter and receiver are set to the same Channel.

Usage:

1. This product only replaces wiring for normal security monitoring purposes, such as construction sites, elevators, shopping malls, residential areas, breeding grounds, underground pipelines, industrial cranes, tower crane, villas, homes, etc. that is not convenient for wiring or temporary monitoring installation after decoration.

2. Video sharing: Connect set-top box or DVD output, and watch the same program on multiple televisions simultaneously.

3. Security monitoring: Output and transmit camera signal AV , then received by the receiver and displayed on the TV screen for viewing.

3 types for your refer:

- only transmitter

- only receiver

- 1.5G 1.5W full kit

Note: size is manual measurement, there are exist errors

Package include is optional

ProductSiteLaunchDate : 2024-09-06T07:18:25.728Z
SafetyWarning : Please pay attention to safety when using
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudienceKeyword : Unisex Adult
UnspscCode : 60140000
