Specification
AlertType : Motion

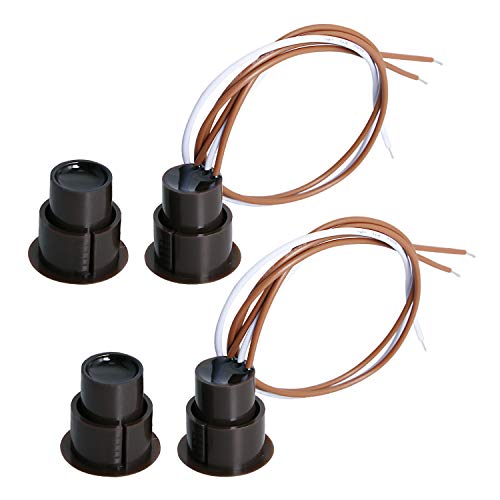

BulletPoint1 : Product Content: 2 x RC-36 Recessed Magnetic Door Switch; Color: Brown, Material: ABS.
BulletPoint2 : Each Size(Approx): 25mm x 19mm/1" x 0.75" (L*D). Cable Length: 25cm/9.8".
BulletPoint3 : Contact Type: NC/NO, White Universal line, Coffee for NC or NO; Actuation Distance: 20-30mm, Max Voltage: 100V, Max Current:0.5A.
BulletPoint4 : Door contact sensors used with commercial or residential access systems and all security access and burglar alarm system.
BulletPoint5 : Recessed-mounted magnetic contact ideal for wood door window security, Recessed easy to install, good concealment, fashion and beauty, Anti-fire ABS.
CircuitType : 1-way
Color : Brown,White
CompatibleDevices : Alarm Systems
ConnectivityProtocol : X-10
ConnectivityTechnology : Wired
ConnectorType : Screws
ControlMethod : touch
CurrentRating : 0.5 amps
ExternallyAssignedProductIdentifier1 : 744343871025
ExternallyAssignedProductIdentifier2 : 0744343871025
IncludedComponents : Sensors
InstallationType : Wall Mount
InternationalProtectionRating : 100 volt
ItemName : Aoje-Link RC-36 NC + NO Recessed Wired Security Window Door Contact Sensor Alarm Magnetic Reed Switch for Home Security Access Control and Burglar Alarm Systems Brown 2pcs
ItemPackageDimensions_Height : 11.6 centimeters
ItemPackageDimensions_Length : 2.5 centimeters
ItemPackageDimensions_Width : 7.3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : reed-switches
Manufacturer : Aoje Link-Electric
Material : Acrylonitrile Butadiene Styrene
MaximumSupplyVoltage : 100 volts
MeasuringRange : 20 - 30 mm
ModelNumber : a20122601ap0045
MountingType : Door
NumberOfItems : 2
NumberOfPositions : 2
OperatingVoltage : 100 volts
OperationMode : Off
OutputType : Digital
PartNumber : a20122601ap0045
PowerSourceType : Corded Electric
ProductDescription :

Magnetic Reed Switch Alarm Recessed Mount Wired Contact Sensor Connect to the alarm.

1.Recessed easy to install, good concealment, fashion and beauty, Anti-fire ABS.

2.The reed switch is an electrical switch operated by an applied magnetic field.

3.Switch Type: NC/NO,  NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ). NO means Normally Open:when the magnet separate, the circuit is not conductive( light on );When the magnet together, the circuit is conductive ( light off ).

4.Work as an anti-theft alarm, ideal for wood door and window.

Specification:

Model: RC-36

Material: ABS

Color: Brown

Max Power: 10W

Max Voltage: 100V

Max Current: 0.5A

Min Temperature: -22℉

Max Temperature: 140℉

Actuation Distance: 20-30mm

Contact Type: NC/NO

Size(Approx): 25 x 19mm(L*D)

Package Content:

2pair x Magnetic Door Switch.

Note:

1: Please Drill installation hole with a diameter of 19 mm, The door and window magnet should be installed at the closed position of the door/window/drawer.

2: The magnet part is installed on the movable door and window. The switch part is installed on the fixed door and window frame. The switch part and the magnet part should be aligned as much as possible.

3: The door magnet should be away from the strong magnetic field interference source such as a transformer. Otherwise, the working characteristics of the door magnet will be changed and possible wrong actions.

4: Door magnetic can only provide switching signal, can not be directly loaded, need to be connected with the power supply or lamps and lanterns into a set of system.

ProductSiteLaunchDate : 2021-03-18T11:31:15.104Z
SensingDistance : 30 millimeters
Size : RC-36 NC/NO
SpecificUsesForProduct : Security, Electrical
Style : Modern
SwitchType : Magnetic Reed
TerminalType : Screw
UnitCount : 2
UnspscCode : 46171600
UpperTemperatureRating : 140 degrees_fahrenheit
Voltage : 100 volts
Wattage : 10 watts
