Specification
Brand : DSLRKIT
BulletPoint1 : PoE standard: IEEE802.3af/at
BulletPoint2 : Ethernet rate: 4 port 10/100/1000M
BulletPoint3 : Power pin: 1/2,3/6 or 4/5,7/8
BulletPoint4 : POE Input power: 30W(MAX)
BulletPoint5 : Output per poe port: 25.5W(MAX)
BulletPoint6 : Non PoE: The product does not support PoE function, and both the transmitting and receiving ends of it need a dc power adapter for power supply.
BulletPoint7 : What’s in the box: WG502F Ethernet Extender * 1 pair (transmitter&receiver), DC 12V power adapter * 2pcs, User guide * 1pcs
CircuitType : 2-way
Color : All-white
CompatibleDevices : Ethernet-enabled devices (IP cameras, DVRs, switches, etc.)
CompatibleDevices1 : Gaming Console
CompatibleDevices2 : Personal Computer
CompatibleDevices3 : Router
CompatibleDevices4 : Smart Television
CompatibleDevices5 : Smartphone
ConnectorType : Plug In
ControlMethod : touch
CurrentRating : 0.65 amps
DataTransferRate : 1200 megabytes_per_second
ExternallyAssignedProductIdentifier : 9663748313910
ExternallyAssignedProductIdentifier1 : 0811976011583
ExternallyAssignedProductIdentifier2 : 811976011583
Frequency : 2.4 GHz
FrequencyBandClass : dual_band
FrequencyBandsSupported : PLC (2-300 kHz)
IncludedComponents : 1 PoE in-3 PoE Out Gigabit PoE Switch Extender x1
IncludedComponents1 : WiFi Extender
IncludedComponents2 : WiFi Extender
IncludedComponents3 : WiFi Extender
IncludedComponents4 : WiFi Extender
IncludedComponents5 : WiFi Extender
InternationalProtectionRating : IP40

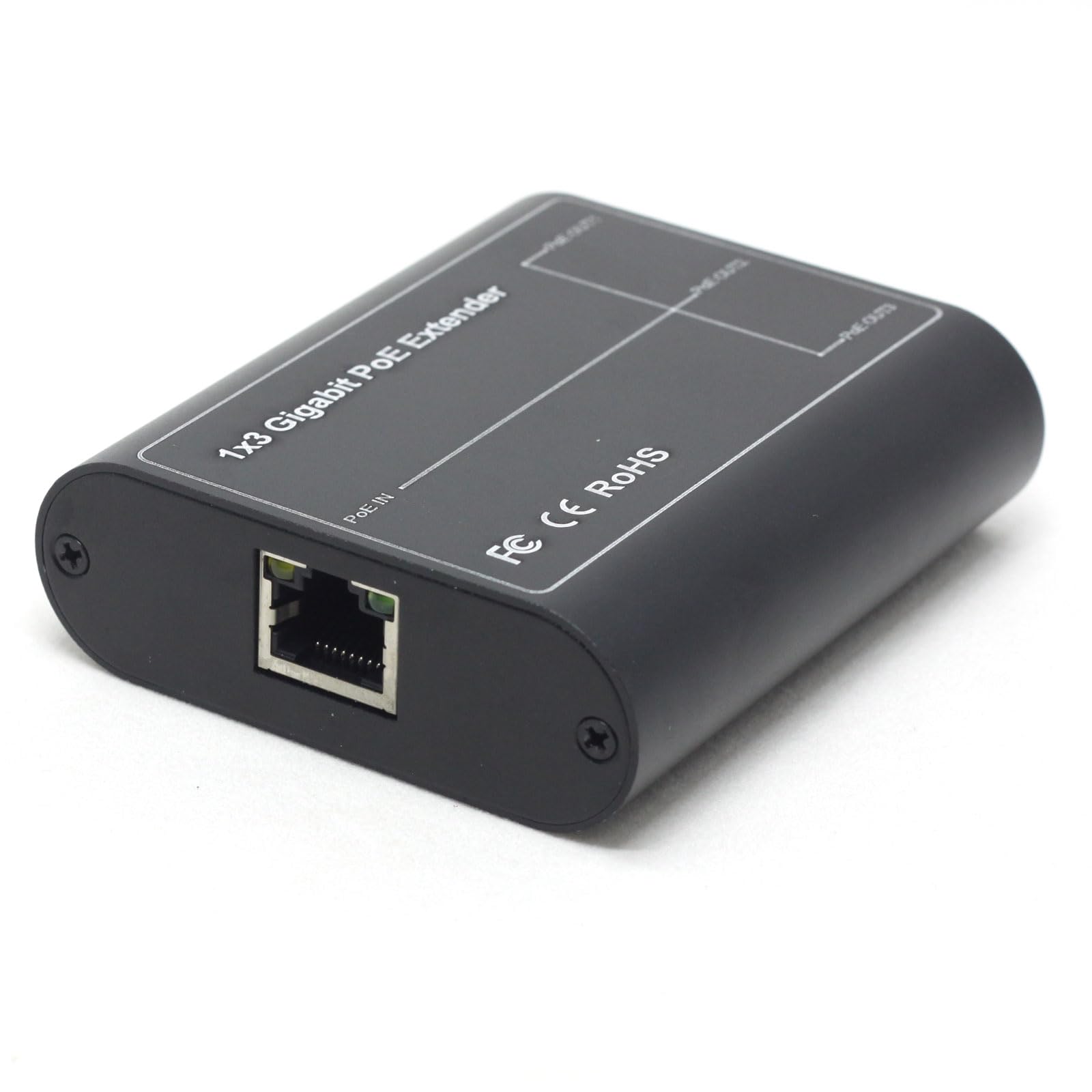

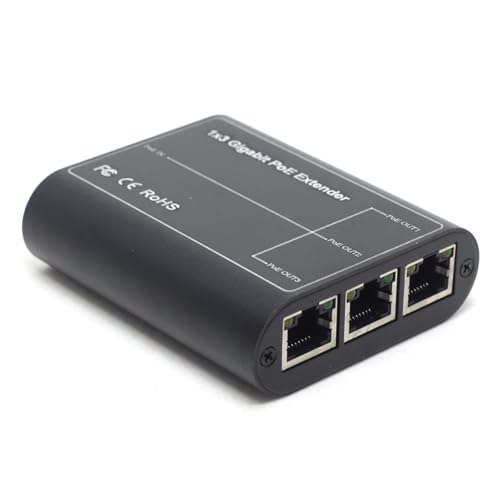

ItemName : DSLRKIT 3-Port Outdoor Gigabit PoE Passthrough Switch PoE Extender 1 in 3 Out Cascade Repeater
ItemPackageDimensions_Height : 32 millimeters
ItemPackageDimensions_Length : 95 millimeters
ItemPackageDimensions_Width : 95 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : network-repeaters
LightType : Non-Illuminated
LowerTemperatureRating : -10 degrees_celsius
Manufacturer : DSLRKIT
Material : Plastic
ModelName : AOOEPU-UP7
ModelNumber : POE103/G
MountingType : Wall Mount
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPositions : 1
OperatingVoltage : 48 volts
OperationMode : ON-OFF
PartNumber : POE103/G
ProductDescription : The PoE Extneder does not require local power and is powered via the PoE input.

Support the IEEE 802.3af/802.3at the Power over Ethernet PoE Switch
Support DC48V~57V Passive Power Over Ethernet PoE Switch
Support DC48V~57V Passive Power Over Ethernet PoE injector

The PoE Extender has 4 100/1000M PoE ports, among them, 1 port for POE input, and 3 ports for POE output. All ports Comply with 100/1000BASE-TX, IEEE802.3at/IEEE802.3af . The power input is 30W in total. 3 ports POE output for total is 25W ( max).

PoE Extenders can increase the transmission distance up 100m via Cat5 UTP cables. It offers you great flexibility to extend the distance of PoE.

Only for use as a POE Extender Repeater:
When used with an 802.3at PoE switch, a maximum of three POE extenders can be cascaded. The maximum length is 400 meters (approximately 7 watts at the far end). It is recommended to use with an 802.3at PoE switch. Using an 802.3af PoE switch may result in insufficient power for the network cameras.

Specification
Support IEEE 802.3af/at power supply
Support non-standard POE 40-57V power supply
RJ45 Power supply pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
POE total power input 30watt
POE total power output 25watt
Maximum power output of a single PoE port 24watt
Transmission distance: Cat5e, Cat6 or above <= 100m
Ethernet speed: 100/1000Mbps
Use environment
Working temperature: -10 ℃~ 60 ℃ (14℉~140℉)
Storage temperature: -40 ℃~85 ℃ (-40℉~185℉)
Working humidity: 10%~90% non-condensing
Storage humidity: 5%~95% non-condensing
dimensions: 8cm x 7cm x 2.4cm
product weighs: 101g

Item Included:
1 PoE in-3 PoE Out Gigabit PoE Switch Extender x1
ProductSiteLaunchDate : 2023-06-19T03:47:20.065Z
Range : 6560 feet
Size : Small
SpecificationMet : CE
Style : AX3000 Range Extender
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Bipolar Transistor
TerminalType : Through Hole
UnitCount : 1.9401
UnspscCode : 43222612
UpperTemperatureRating : 40 degrees_celsius
Voltage : 57 volts_of_direct_current
WarrantyDescription : 3 Years Manufacturer
WirelessCommStandard : 802_11_AC
WirelessCommStandard1 : 2.4_ghz_radio_frequency
WirelessCommStandard2 : 5_ghz_radio_frequency
