Specification
AgeRangeDescription : adult
Brand : CHICIRIS
BulletPoint1 : [Multi-machine Connectivity] Each channel supports up to 128 nodes for extensive networking capabilities, with a long transmission distance of 2500 meters.
BulletPoint2 : [Automatic Data Control] Technology distinguishes and controls data transmission direction automatically, enhancing efficiency and accuracy.
BulletPoint3 : [Wide-range Power Supply] Operates on 9-24vdc with anti-reverse for versatile and secure use in various settings.
BulletPoint4 : [Industrial-grade Design] Ensures complete communication isolation and stable performance with a transmission rate of up to 115.2kbps.
BulletPoint5 : [Enhanced Features plus or minus 15kv esd protection, 600w -channel tvs protection, and 2.5kv communication isolation to the system.
Color : One Color
CompatibleDevices1 : NC510ES Receiver
CompatibleDevices2 : NC510ES Transmitter
ConnectorType : Proprietary connector
ExternallyAssignedProductIdentifier : 5028890516017
IncludedComponents : No

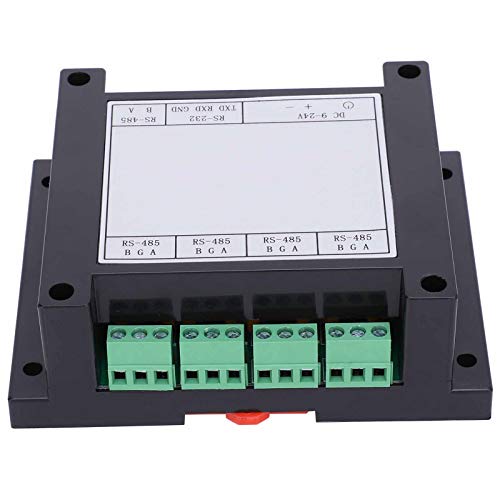

ItemName : RS232 Repeater Industrial Grade Photoelectric Isolation 4 Channel RS485 Hub Sharer Splitter, Support for Multi Machine Communication, Wide Power Supply Range and Strong
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 15 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : network-repeaters
Manufacturer : CHICIRIS
ModelName : CHICIRISxgchyvgqo3
ModelNumber : CHICIRISxgchyvgqo3
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : CHICIRISxgchyvgqo3
ProductDescription : Spec:
Compatibility: Compatible with RS-232, RS-485TIA/EIA standards
Working Voltage: DC: 9-24V
Rated Power: 0.5-1.2W
Input Interface: 1 RS-232/1 RS-485
Output Interface: 4 RS-485
Load Capacity: 128 nodes per interface
Communication Distance: 2500 meters shielded wire or twisted pair wire per interface
Communication Rate: 300bps-115.2Kbps
Installation Method: 35mm rail installation, 4-hole installation on the back plate
Structure Size: Approx. 115 x 90 x 40mm / 4.5 x 3.5 x 1.6in
Working Environment: -30℃ to 70℃ relative humidity>95%RH
Wiring Notes:
1. 485 communication line must use shielded twisted pair, preferably multiple strands for spare, the longest is not more than 2500 meters.
2. The wiring should be as far away as possible from high-voltage wires, not parallel to power lines, and not to be bundled together.
3. 485 bus must be a hand-in-hand bus structure, and resolutely eliminate star connection and bifurcation connection.
4. If there are more than 30 controllers or the cable length is greater than 500 meters, it is recommended to use a 485 repeater.
5. The AC-powered equipment and the chassis must be grounded and well grounded.
6. Connect the GND ground of all 485 devices with shielded wires.
Requirements For Wire Selection Using RS-485 Bus For Communication:
Use 2-core shielded twisted pair cable
Copper, wire diameter 0.5～0.75 square millimeter,
Impedance 38～88Ω/km,
Capacitive 30～50nF/km,
2-core shielded twisted-pair cable with a twisting distance of 20 mm (if the line distance is not more than 500 meters, the line standard can be appropriately reduced, but it must be a twisted pair)

Package List:
1 x Repeater
ProductSiteLaunchDate : 2025-01-27T09:46:58.776Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 43222600
WarrantyDescription : Manufacturer warranty for 90 day
