Specification
Brand : Generic
BulletPoint : ATSC modulator, RF modulator, HDMI modulator

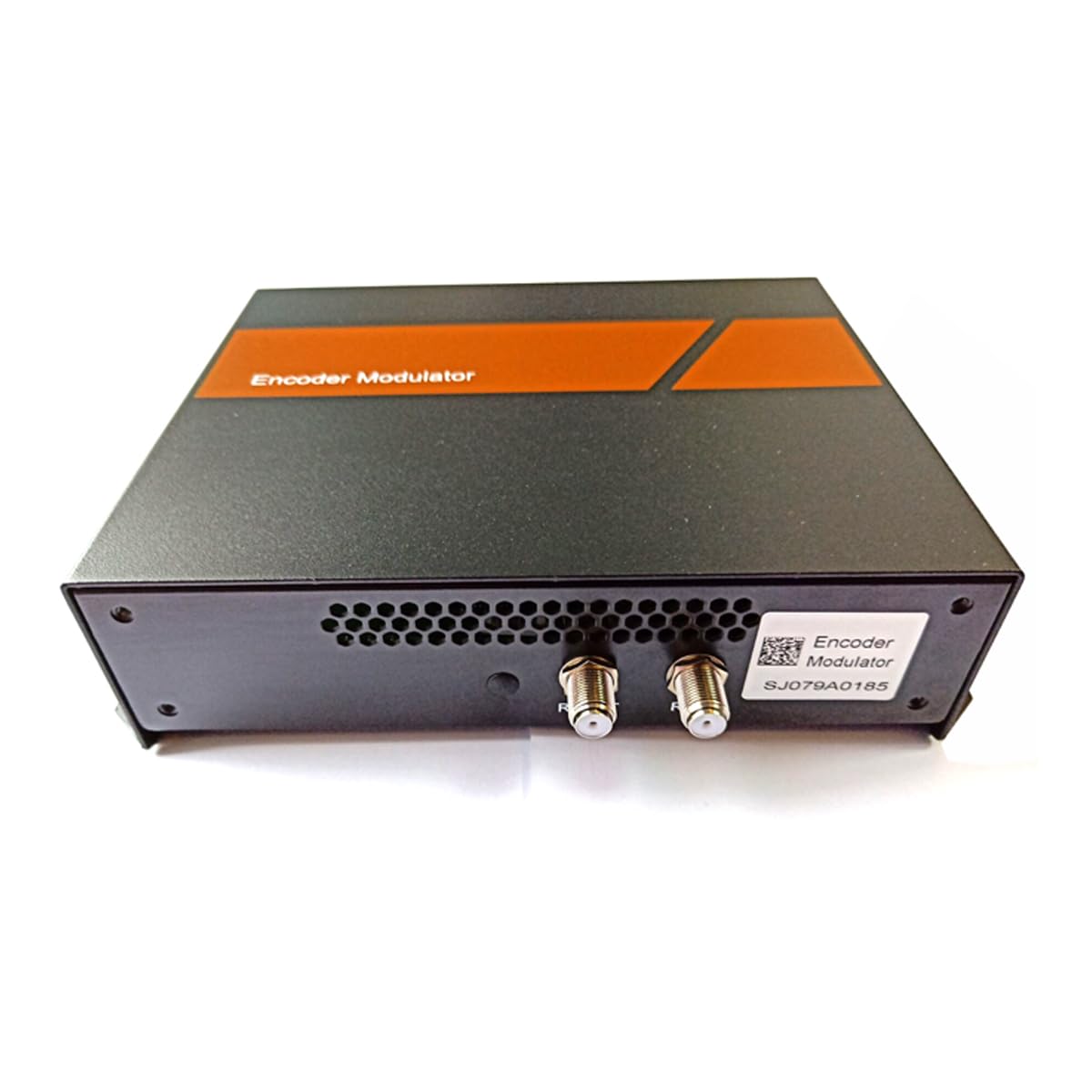

ItemName : CATV System HDMI Modulator Supports 1080p to J.83A J.83B QAM,ATSC,ISDB-T,DVB-T
ItemPackageQuantity : 1
ItemTypeKeyword : electrical-distribution-modulators
Manufacturer : Shineco
NumberOfItems : 100
ProductDescription : HD encoder & modulator is designed based on consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.

It is an all-in-one device integrating MPEG2 encoding and modulating to convert audio/video signals into DVB-C/ATSC/DVB-T/ISDB-T

The signals source could be from STB, satellite receiver, closed-circuit television cameras and antenna etc. Its output signal is to be received by TVs or STBs etc.

Technical Specifications
Support 1 HDMI channel in for encoding
Support 1 CC input port, EIA608
Support MPEG-2 video encoding
Support MPEG1 Layer 2 audio encoding
Support DVB-C/DVB-T/ATSC/ISDB-t. Modulation dynamic switching
Support LCN
Support Web management

DVB-C Modulator Section
Standard: J.83A (DVB-C),J.83B
MER: ≥35dB
frequency: 100-1000MHz, 1KHz step
output level: -63~ -16dBm (44~91 dBµV), 1dB step
Symbol rate:3.000~7.000Msps adjustable
Constellation:16/32/64/128/ 256 QAM(J.83A),64/ 256 QAM(J.83B)
Bandwidth:8M(J.83A), 6M(J.83B)
ATSC Modulator Section
Standard:ATSC A/53
Constellation:8VSB
R F frequency: 100~1000MHz, 1KHz step
MER:MER ≥35dB
ATSC output level -63~-16dBm (44~91 dBµV), 1dB step

System
Management:Web
Language:English

ProductSiteLaunchDate : 2024-09-05T01:48:40.038Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43000000
WarrantyDescription : 2 years
