Specification
AudioOutputMode : Stereo
Brand : Voca Tech
BulletPoint1 : Support 4 HDMI channels input,HDCP compatible and easy to set frequency and channels
BulletPoint2 : Support MPEG2 video encoding,support MPEGI layer 2, MPEG-2 AAC, and DD AC3 audio encoding
BulletPoint3 : Support 1080P/I,720P, 576I , 480I video resolution, up to 1920*1080@50P/60P,
BulletPoint4 : Support low latency(50~1000ms),Each channel supports 1 DVB-C/T/ATSC/ISDB-T/DTMB output option
BulletPoint5 : Support CC (Closed Caption), EIA 608,Video Bit Rate:2~20Mbps each channel,
CompatibleDevices : Cameras
ConnectivityTechnology1 : HDMI
ConnectivityTechnology2 : Ethernet
ConnectorType : HDMI
ExternallyAssignedProductIdentifier1 : 680727929701
ExternallyAssignedProductIdentifier2 : 0680727929701
FinishType : Hdmi
InputVoltage : 8 volts
ItemName : Voca Tech 4 HDMI MPEG2 to ATSC DVB-C ISDB-T DVB-T Encoder Modulator
ItemPackageDimensions_Height : 55.88 centimeters
ItemPackageDimensions_Length : 10.795 centimeters
ItemPackageDimensions_Width : 37.465 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electrical-distribution-modulators
Manufacturer : Voca Tech
ModelNumber : VC-2184
NumberOfItems : 1
ProductDescription : Product Overview

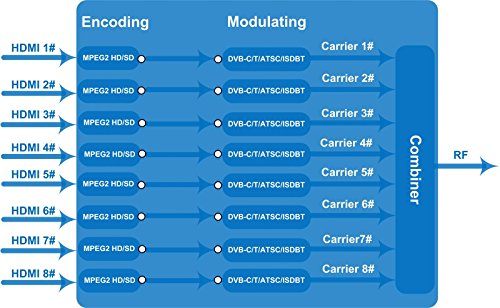

Voca encoder modulator is Voca’s a all-in-one device integrating MPEG2 encoding and modulating to convert audio/video signals into ATSC RF out. It support 4 HDMI inputs optional, and its pay-as-you-grow modular design (maximum support 8 HDMI inputs) and flexible configuration are making it extremely scalable, very reliable with high performance. The signals source could be from STB, satellite receiver, closed-circuit television cameras and antenna etc. Its output signal is to be received by TVs or STBs etc.

Key Features

Support 4 or 8 HDMI channels input
Support MPEG2 video encoding
Support 1080P/I,720P, 576I , 480I video resolution
Support low latency(50~1000ms)
Support MPEGI layer 2, AAC, and DD AC3 audio encoding
Support CC (Closed Caption), EIA 608
Support LCN
DVB-C/T/ATSC/ISDB-T RF out in one device, Modulation dynamic switching
Each channel support 1 DVB-C/T/ATSC/ISDB-T output option
Control via web-based NMS, and easy updates via web

ATSC Modulator Section

Standard: ATSC A/53
Constellation: 8 VSB
RF output level:-63~-16dBm (44~91dBµV),1dB step
MER:≥35dB
RF frequency: 100~1000MHz, 1KHz step
RF output level:-63~ -16dBm(44~91 dBµV), 1dB step

DVB-C Modulator Section

Standard: J.83A (DVB-C), J.83B
MER:≥35dB
RF frequency:100-1000MHz, 1KHz step
RF output level:-48~ -10dBm, 1dB step
Symbol rate:3.000~7.000Msps adjustable
Constellation:J.83A(16/32/64/128/256QAM),J.83B(64/ 256QAM)
Bandwidth:8M/6M
ProductSiteLaunchDate : 2018-07-01T07:00:00.000Z
SupplierDeclaredDgHzRegulation : not_applicable
SupportedInternetServices1 : YouTube
SupportedInternetServices2 : Netflix
TotalHdmiPorts : 8
UnitCount : 1
UnspscCode : 32100000
VideoEncoding : MPEG4 H.264
WirelessCommunicationTechnology : RF
