Specification
Brand : MAPLE ACE
BulletPoint1 : 100H Heavy Duty Roller Chain is a 1-1/4 inch pitch ANSI Standard Roller Chain Single Strand
BulletPoint2 : Interchange to ANSI Chain No. 100H-1, BS/ISO No. 100AH-1, RS100H-1, PHC100H-1
BulletPoint3 : Heavy Duty Roller Chain Shot-peened, Pre-loaded, Pre-lubricated, Fatigue Resistant.
BulletPoint4 : Application: Industrial Machinery, Conveyor Systems, Agricultural Equipment, Construction Equipment, Material Handling Equipment, Power Transmission Systems, Forestry and Lumber Mills, Cement and Aggregate Industry
BulletPoint5 : Specializing in the Exclusive Production of Chains with High Performance and Long Life.
ExternallyAssignedProductIdentifier1 : 841339004556
ExternallyAssignedProductIdentifier2 : 0841339004556
ItemDisplayDimensions_Length : 28 centimeters
ItemDisplayWeight : 4.52 kilograms
ItemLength : 10 feet

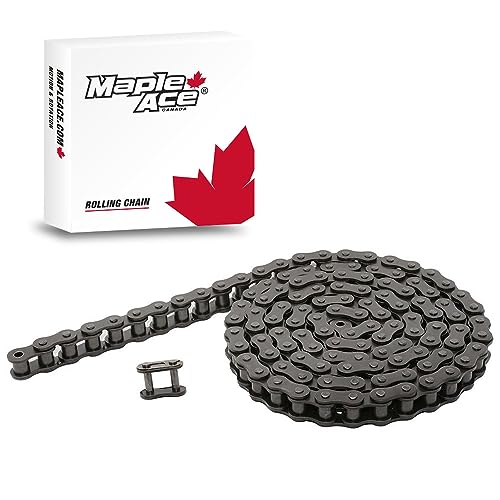

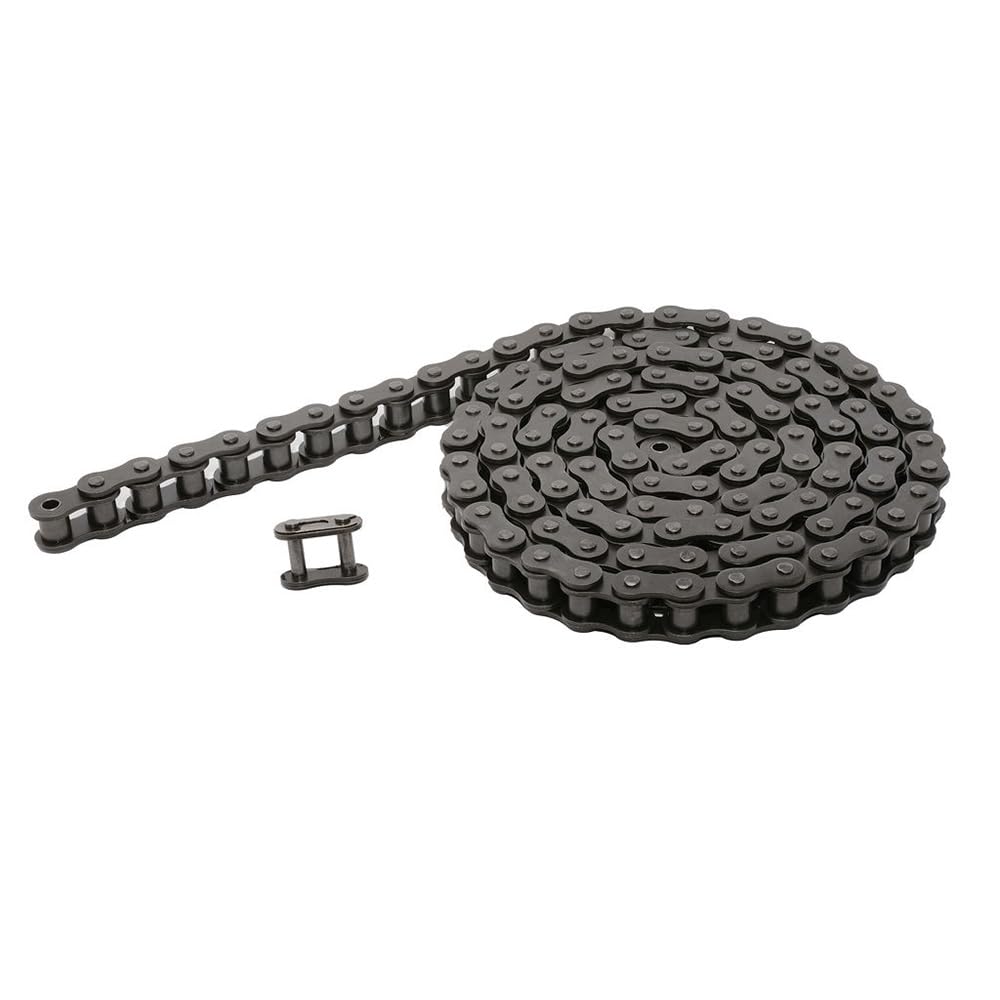

ItemName : MAPLE ACE 100H Heavy Duty Roller Chain 10 Feet Plus Connecting Master Link
ItemPackageDimensions_Height : 5.8 centimeters
ItemPackageDimensions_Length : 32.5 centimeters
ItemPackageDimensions_Width : 32.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : roller-chains
LoadCapacity : 13489 lbf (Tensile Load Capacity)
Manufacturer : MAPLE ACE
Material : Carbon/Alloy Steel
ModelNumber : 100H-1
NumberOfItems : 1
PartNumber : 100H-1
ProductDescription : H series chain is designed for heavy-duty applications, with thicker plates than ANSI and BS/DIN chains to withstand approximately 10% higher shock loads, and is suitable for lower operating speeds. All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant. Higher tensile strength for superior impact resistance. Heat treatment to achieve ideal hardness. Every package contains a 10-feet chain and 1 connecting link. Additional connecting and offset links can be bought separately at our store. The chain can be cut to desired length using a Chain Breaker. - Specification: Item 100H-1, ANSI Chain number 100H-1, BS/ISO Chain number 20AH-1, Chain Length 10 ft, Number of Links 95L, Number of Strands 1, Chain Pitch Metric 31.75 mm, Chain Pitch Inch 1.25 in, Roller diameter d1 max Metric 19.05 mm, Roller diameter d1 max Inch 0.75 in, Width between inner plates b1 min Metric 18.9 mm, Width between inner plates b1 min Inch 0.74 in, Pin diameter d2 max Metric 9.53 mm, Pin diameter d2 max Inch 0.38 in, Pin length L max Metric 43.6 mm, Pin length L max Inch 1.72 in, Pin length Lc max Metric 46.90 mm, Pin length Lc max Inch 1.85 in, Plate height h2 max Metric 30 mm, Plate height h2 max Inch 1.18 in, Plate thickness T max Metric 4.8 mm, Plate thickness T max Inch 0.19 in, Ultimate Tensile Strength Q min 88.5 kN, Average Tensile Strength Q0 112.4 kN, Weight (kg/m) 4.52 kg, Weight (lbs/ft) 3.04 lbs, Material Carbon/Alloy Steel. - Interchange: - Application:
ProductSiteLaunchDate : 2021-12-17T23:16:43.999Z
SpecificationMet : Oem
SpecificationMet1 : BS 228
SpecificationMet2 : ISO 606
SpecificationMet3 : ANSI B29.1
SpecificationMet4 : ISO 14001
SpecificationMet5 : ISO 9001
UnitCount : 1
UnspscCode : 31151600
