Specification
Brand : Aitoserlea
BulletPoint : Feature:
1. With digital LCD showing speed and time.
2. Adjust Time and Speed freely.
(Time from 1S～99S, Speed from 2800rpm～5000rpm)
3. Time setting with memory function.
4. Security Guard design, motor will stop when the mask is open.
5. Ergonomic design, which looks like a beetle car.
6. It’s revolve according to“8”model.
7. Noiseless, very stable operation.
8. Electrical safety standard met.
9. Four colors for choose.
10. Easy maintenance.


BulletPoint1 : New construction, new technology
BulletPoint2 : High Precision Motorized Rotation Stages
BulletPoint3 : The key index has up to the international level of the similar products by strictly inspection
BulletPoint4 : This series products are used to laser precision processing, three dimensional scanning measurment system and so on
BulletPoint5 : Worm and worm wheel has adopted durable to friction material, high reliable accuracy of rotation
BulletPoint6 : Unique cut design creates superior dispersing and greater breakdown of agglomerates
Color : Black
ExternallyAssignedProductIdentifier : 7612346558850
ExternallyAssignedProductIdentifier1 : 0774491645230
ExternallyAssignedProductIdentifier2 : 774491645230
IncludedComponents : Optical Rotating Platform

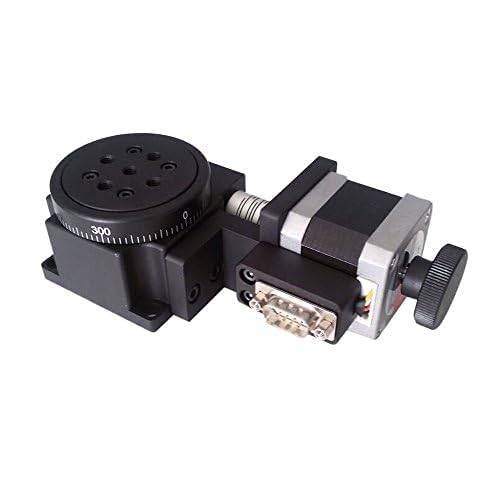

ItemName : Aitoserlea PX110-60 Electric Rotating Machine, Optical Rotating Platform Motorized Rotation Stage 60MM Bearing Scale (Ratio 45 to 1)
ItemPackageQuantity : 1
ItemTypeKeyword : power-rotary-tools
Manufacturer : top-tool
Material : Steel
MaximumRotationalSpeed : 10000 rpm
MinimumSpeed : 5000 rpm
ModelName : Optical Rotating Platform
ModelNumber : RP23101401
NumberOfItems : 1
PartNumber : MGRAS
PowerSourceType : Other
ProductDescription : PX110-60 Electric Rotating Machine Optical Rotating Platform Motorized Rotation Stage 60mm Bearing Scale

Feature:
High precision, ultra steel axises of importing, achieve high precision, high load stable motion
Outer circle has scale, interface, convenience for signal's output
Standard stepper motor and DB9 interface, choose to controller flexibility
Regular stage set with stepper motor and RS232 interface, could connect with motion controller easily
High precision Worm gear design for high accuracy, loading and long working time
Forward and reverse rotate are possible
The stage could use in vertical and assemble with other stages
Prototype stepper motor 42 stepper motor (1.8°), servo motor available for replacement on request
Fine steel rotary shoe, high accuracy, massive loading capacity and long using life
Fine grinding worm drive with comfortable movement and backlash can almost ignored
Clearance elimination design
The motor is connected with the worm via high quality elastic coupling, synchronized drive without noise
Scaling on the outerring of the platform, easy scale reading

Structure Specifications:
Item Number: PX110-60
Rotation Range: 360° of Continuous Rotation
Diameter of Platform: Ø60mm
Drive Mechanism: Worm Gear
Worm Gear Ratio: 45:1 or 90:1 (optional)
Stepper Motor (1.8°): 42BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle
Material - Finish: Aluminum Alloy - Black-Anodized
Load Capacity: 30Kgs
Weight: 1.2kgs

Accuracy Specifications:
Design Resolution: 0.02°, Non-MS Driver
0.0005°=1.8", 20MS Driver
Rotational Velocity (Max): 50°/sec
Repeatability: 0.005°=18"
Absolute On-Axis Accuracy: 0.01°=36"
Run-Out of Top Plate: 15μm
Backlash: 0.005°=18"
Eccentricity: 5μm
Lost Motion: 0.005°=18"
Parallelization: 80μm

Package includes:
1 x PX110-60 Electric Rotating Machine
ProductSiteLaunchDate : 2023-10-14T02:41:16.017Z
Style : Ratio 45 to 1
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 27112700
Voltage : 3.7 volts
Wattage : 10 watts
