Specification
BatteriesIncluded : 1
Brand : youyeetoo
BulletPoint : L41G-2AXD&FG621-EA
BulletPoint1 : [WIRELESS MOBILE MINI TRAVEL ROUTER] - Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing. Create a secure Wi-Fi hotspot quickly.
BulletPoint2 : [LARGER STORAGE & EXTENSIBILITY] - The NanoPi R2S Plus uses the RK3328 SoC. It has 1GB DDR4 RAM and 32GB eMMC, Sufficient for Running Various Applications, Smooth & Elegant.
BulletPoint3 : [OPEN SOURCE & PROGRAMMABLE] - Support FriendlyWrt, It is based on an OpenWrt distribution and works with Docker CE .Open source and well suitable for developing IoT applications, NAS applications, smart home gateways etc.
BulletPoint4 : [Dual Gbps Ethernet Ports] - The NanoPi R2S has two Gbps Ethernet ports: one directly extended from the SoC and the other converted from a USB3.0.gets around 941 mbits/second download and upload.
BulletPoint5 : [WIKI] https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R2S_Plus(If you have any question, Please feel free to contact us. Click "youyeetoo"or mail am2#youyeetoo.com (#>>@) to ask.)
BulletPoint6 : 【NETWORK MONITORING】Monitor all activities on your network. See which domains, IP addresses, protocols and ports are accessed by which devices. See how much bandwidth is consumed by each device and to what servers.
Color : R2S Plus WiFi Combo
CompatibleDevices : Personal Computer
CompatibleDevices1 : Laptop
CompatibleDevices2 : Tablet
CompatibleDevices3 : Smartphone
CompatibleDevices4 : iPhone
ConnectivityTechnology : LTE
ConnectivityTechnology1 : Bluetooth
ConnectivityTechnology2 : Ethernet
ConnectivityTechnology3 : USB
ConnectivityTechnology4 : Wi-Fi
ControllerType : Switch
ControlMethod : touch
Coverage : Private Wi-Fi network and wired networks via Ethernet
DataTransferRate : 300 megabits_per_second
ExternallyAssignedProductIdentifier : 4752224008824
ExternallyAssignedProductIdentifier1 : 860439000244
ExternallyAssignedProductIdentifier2 : 0860439000244
Frequency : 1.4 GHz
FrequencyBandClass : dual_band
GpsrSafetyAttestation : 1
IncludedComponents : R2S plus
IncludedComponents1 : PW-AX1800 Router
IncludedComponents2 : RJ45 Ethernet Cable
IncludedComponents3 : Power Adapter
IncludedComponents4 : Quick Installation Guide

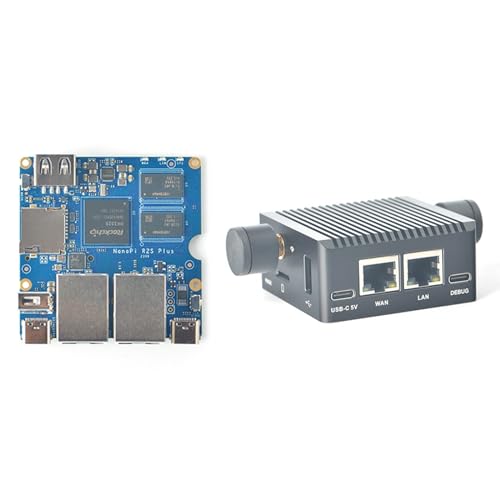

ItemName : youyeetoo FriendlyElec Nanopi R2S Plus Mini Router, 1GB DDR4, 32GB eMMC, RK3328 Soc, OpenWRT with Dual-Gbps Ethernet, for IOT NAS Smart Home Gateway, Portable Travel (R2S Plus WiFi Combo)
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 15 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : network-routers
LanPortBandwidth : 1000 Mbps
Manufacturer : youyeetoo
MaximumUpstreamDataTransferRate : 941 megabits_per_second
ModelName : R2S PLUS
ModelNumber : R2S PLUS-Parents-EU
NumberOfAntennas : 4
NumberOfItems : 50
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
NumberOfPorts : 2
OperatingSystem : OpenWrt
PackageLevel : unit
PartNumber : L41G-2axD&FG621-EA
ProductDescription : CPU
Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53
Frequency: 4 x Cortex-A53 Up to 1.4GHz
MemoryRAM: 1GB DDR4
Storage
MicroSD Slot: MicroSD x1 for external storage up to 128GB
Flash: 32GB eMMC 5.1 Flash
Connectivity
Ethernet: 1 x Internal Gbps Ethernet x 1，RTL8211F chip
1 x USB3.0 converted Gbps Ethernet.RTL8153B chip
Optional M.2 SDIO Wi-Fi
USB
USB 2.0 Host x 1: USB Type A
1x USB-C :5V power input and USB update in maskrom mode
1 x USB-C : onboard USB to Debug UART converter, 1500000bps bauds
Pin-header
Serial Debug Port x 1: 2.54mm pitch 3pin-header(3.3V TTL)
LED
1 x SYS LED(Red)
1 x WAN LED(Green)
1 x LAN LED(Green)
Button
1 x GPIO Button
1 x Maskrom mode Button
Working Temperature
0℃ to 70℃
Power
DC 5V/2A
OS Support
FriendlyWrt 21.02
FriendlyWrt 23.05
FriendlyCore Focal Lite (Base on Ubuntu 20.04) Buildroot
Debian 11 Core
OpenMediaVault
Buildroot
Kernel version
Linux-6.1-LTS
U-boot-2017.09


ProductSiteLaunchDate : 2024-01-03T11:14:17.622Z
RecommendedUsesForProduct : Home
RecommendedUsesForProduct1 : Business
RecommendedUsesForProduct2 : Home
SecurityProtocol : WPA2, WPA3
Size : R2S Plus WiFi Combo
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43220000
Voltage : 5 volts_of_direct_current
WarrantyDescription : 1 year
WirelessCommStandard : 802_11_AC
WirelessCommStandard1 : 802_11_AX
WirelessCommStandard2 : 802_11_AC
WirelessCommStandard3 : 802_11_N
WirelessCommStandard4 : 802_11_G
WirelessCommStandard5 : 802_11_B
WirelessCommunicationTechnology : Wi-Fi
WirelessCommunicationTechnology1 : Wi-Fi
WirelessCommunicationTechnology2 : 4G
WirelessCommunicationTechnology3 : 3G
