Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : youyeetoo
BulletPoint1 : [Rockchip RK3588S SoC] The NanoPi R6C is an open-sourced mini IoT gateway device with one 2.5G and one Gbps Ethernet ports. CPU: Rockchip RK3588S Chip with 4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz. GPU: Mali-G610 MP4; NPU: 6TOPs.RAM: 64-bit 8GB LPDDR4X at 2133MHz.Storage: 32GB eMMC,at HS400 mode. PCIe: M.2 M-Key, PCIe2.1 x1, support NVME, PCIe WiFi etc.
BulletPoint2 : [Rich Hardware Resources] The NanoPi R6C wifi router has rich hardware resources. A 30-pin header is provided to hardware resources for secondary development, including interfaces such as GPIO, I2C, I2S, PWM, SPI. With 1x HDMI port, 1x M.2 NVME port, 1x USB type-C power delivery port, 2x USB ports, support external USB Wifi Adapter. It is an ideal portable drive for saving images and videos.
BulletPoint3 : [OS/Software] Nanopi R6C mini router supports booting with TF cards and works with operating systems such as FriendlyWrt, Android, Debian, Ubuntu etc and works with headless systems as well.
BulletPoint4 : [8K Video Decoders and Encoders] Support 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder.
BulletPoint5 : [Open Source and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more. It offers endless possibilities for geeks, fans and developers.
BulletPoint6 : [Embedded Custom Development] Nanopi R6C wifi router is very suitable for enterprise customers to customize and develop mini machine vision systems with multiple network ports, and it is also suitable for embedded enthusiasts to discover, explore and create their own unique gameplay.
BulletPoint7 : [Package Content] NanoPi R6C LPDDR4X 8GB Mini Wifi Router x1
Color : Black
CompatibleDevices : Printer
ConnectivityTechnology : Wi-Fi
ConnectivityTechnology1 : Ethernet
ConnectivityTechnology2 : USB
ConnectivityTechnology3 : Wi-Fi
ControllerType : App Control
ControlMethod : touch
DataTransferRate : 300 megabits_per_second
ExternallyAssignedProductIdentifier : 4779027312811
Frequency : 2.4 GHz
FrequencyBandClass : dual_band
GpsrSafetyAttestation : 1
GraphicsCardInterface : integrated
GraphicsCoprocessor : Intel Iris Xe Graphics
GraphicsDescription : Dedicated
GraphicsProcessorManufacturer : Rockchip
HardwareInterface : usb
HumanInterfaceInput : buttons
IncludedComponents : R6C *1

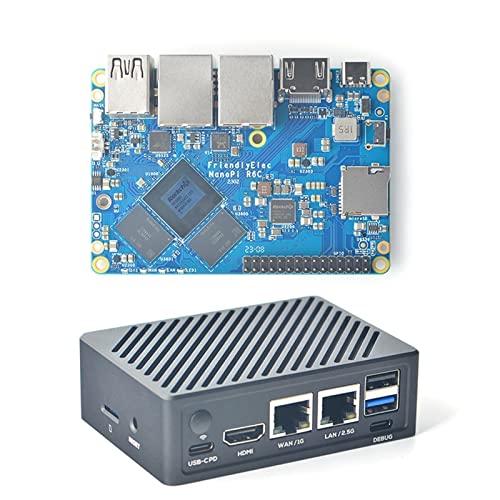

ItemName : youyeetoo NanoPi R6C Mini Router with Metal Case, 2.5G+1 Gbps Ethernet Ports/HDMI 2.0, Support OpenWRT/Docker for VPN NAS IOT Smart Home Gateway (8GB LPDDR4X 32GB eMMC,RK3588S)
ItemPackageDimensions_Height : 12.1 centimeters
ItemPackageDimensions_Length : 3.9 centimeters
ItemPackageDimensions_Width : 9.2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : network-routers
LanPortBandwidth : 10/100 megabits_per_second
Manufacturer : youyeetoo
MaximumUpstreamDataTransferRate : 300 megabits_per_second
MemorySlotsAvailable : 2
MemoryStorageCapacity : 32 GB
ModelName : seeed studio LinkStar-H68K-0232
ModelNumber : 8GB RAM, 32GB eMMC
NumberOfAntennas : 1
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
NumberOfPorts : 1
OperatingSystem : Android,Ubuntu
PackageLevel : unit
PartNumber : 8GB RAM, 32GB eMMC
PersonalComputerDesignType : mini_pc
ProcessorCount : 4
ProcessorDescription : Intel Core i7-1165G7
ProductDescription :

Specification

SoC: Rockchip RK3588S

CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)

GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2

NPU: 6TOPs, supports INT4/INT8/INT16/FP16

RAM: 64-bit 8GB LPDDR4X at 2133MHz

Flash: 32GB eMMC, at HS400 mode

VPU:

8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder

Ethernet: one Native Gigabit Ethernet, and one PCIe 2.5G Ethernet

USB: one USB 3.0 Type-A and one USB 2.0 Type-A

PCIe: one M.2 Key M connector with PCIe 2.1 x1

HDMI:

compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation

support up to 7680x4320@60Hz

Support RGB/YUV(up to 10bit) format

microSD: support up to SDR104 mode

GPIO:

30-pin 2.54mm header connector

up to 1x SPI, 3x UARTs, 3x I2Cs, 2x SPDIFs, 1x I2Ss, 3x PWMs, 20x GPIOs

Debug: UART via 3-Pin 2.54mm header, or on-board USB-C to UART

LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, LED1)

Others:

2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS

MASK button for eMMC update

one user button

Power supply: USB-C, support PD, 5V/9V/12V/20V input

PCB: 8 Layer, 62x90x1.6mm

Ambient Operating Temperature: 0℃ to 70℃

OS Support

FriendlyWrt 21.02, FriendlyWrt 22.03

FriendlyCore Lite 20.04

Android 12 Tablet, Android 12 TV

Debian 10 Desktop, Debian 11 Desktop

Ubuntu 22.04 Desktop

Kernel Version：Linux-5.10-LTS, U-boot-2017.09

Technical Support

E-M:am2 @ youyeetoo DOT com

Please click "youyeetoo" and ask any question.

Please leave the message in our forum by "forum.youyeetoo.com/".

ProductSiteLaunchDate : 2023-03-23T10:43:47.667Z
RecommendedUsesForProduct : Home
SafetyDataSheetUrl : https://m.media-amazon.com/images/S/aplus-media/sc/859b4145-be21-428f-8d53-9907e5a9ae7a.pdf
SecurityProtocol : WPS
Size : Without WIFI
SpecificUsesForProduct : Everyday Use
Style : GL.iNet GL-AXT1800 (Slate AX) & GL-MT300N-V2(Mango)
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SystemRamType : ddr4_sdram
TotalExpansionSlotsQuantity : 4
TotalUsb30Ports : 4
TotalUsbPorts : 2
TotalVideoOutPorts : 4
UnspscCode : 43220000
Voltage : 36 volts_of_direct_current
WarrantyDescription : 1year
WirelessCommStandard : 2.4_ghz_radio_frequency
WirelessCommStandard1 : 2.4_ghz_radio_frequency
WirelessCommStandard2 : 5_ghz_radio_frequency
WirelessCommunicationTechnology : Wi-Fi
WirelessCommunicationTechnology1 : Wi-Fi
WirelessCommunicationTechnology2 : 4G
WirelessCommunicationTechnology3 : 3G
WirelessNetworkTechnology : wifi
