Specification
AgeRangeDescription : adult
BatteriesRequired : 1
Brand : Geekstory
BulletPoint1 : ☁You will get 2pcs 5kg Load Cell + 2Pcs HX711 AD Module. Optional (1kg/2kg/3kg/5kg/10kg/20kg)
BulletPoint2 : ☁This HX711 module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier.
BulletPoint3 : ☁You need to connect load cell wtih HX711 module like this, Red to E+, Black to E-, Green to A+, White to A-
BulletPoint4 : ☁On-chip active low noise PGA with selectable gain of 3264 and 128
BulletPoint5 : ☁Load Cell: 4 leads, easy to use, plus 5-10V drive voltage, direct output as a voltage signal due to force changes. Simple digital control and serial interface: pin-driven controlsno programming needed. Works for arduino and raspberry pi
Color : 10kg
ExternallyAssignedProductIdentifier : 9430559560266
ExternallyAssignedProductIdentifier1 : 0766871052349
ExternallyAssignedProductIdentifier2 : 766871052349
ItemName : Geekstory 5kg Digital Load Cell Weight Sensor+HX711 AD Weighing Sensor Module for Arduino DIY Electronic Portable Kitchen Scale（2 Sets）
ItemPackageDimensions_Height : 10.3886 centimeters
ItemPackageDimensions_Length : 1.8034 centimeters
ItemPackageDimensions_Width : 10.1092 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-scale-and-balance-parts
Manufacturer : Geekstory
MeasurementAccuracy : /
ModelName : MVIVDUY
ModelNumber : 2 Sets 5kg+HX711
NumberOfBoxes : 1
NumberOfItems : 2
PartNumber : FZ0728
ProductDescription : HX711 AD Weight Module
This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module.

Features:
Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 3264 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controlsno programming needed
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA
Operation supply voltage range: 2.6 - 5.5V
Operating Temperature Range:-20 degree to +85 degree

Document link:
https://github.com/aguegu/ardulibs/tree/master/hx711
https://www.youtube.com/watch?v=nGUpzwEa4vg

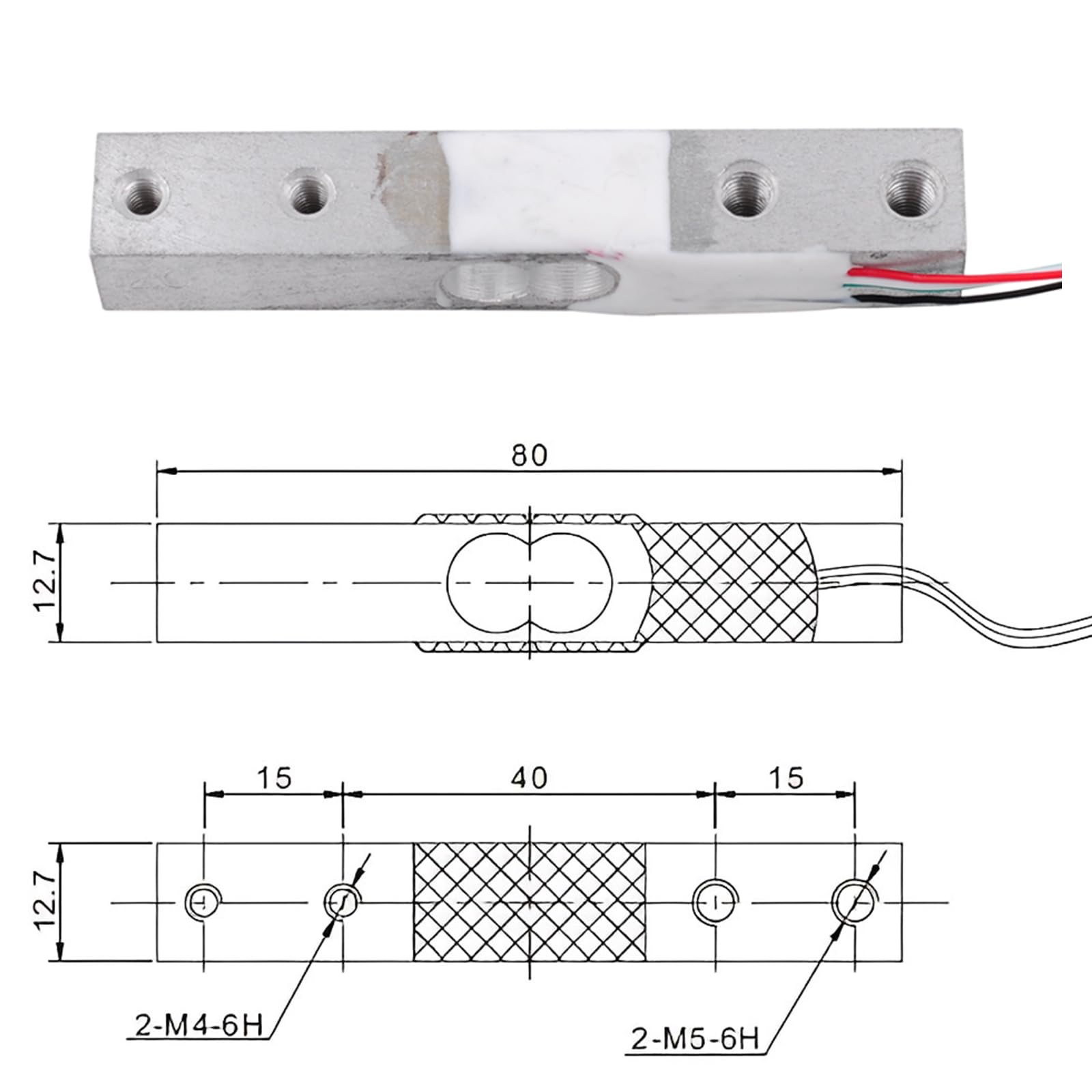

5kg Load Cell
Four leads, easy to use
5-10V drive voltage applied, the force is directly output as a voltage change signal.
Dimensions: 12.7mm * 12.7mm * 80mm
Sensor through the screw hole at one end fixed and the other end to keep floating state, applying gravity following the direction indicated by label
Particular attention must not directly push the white plastic cover part, so as not to damage the sensor

Connection:
Red to E+
Black to E-
Green to A+
White to A-

Package Included:
2 x HX711 AD Module
2 x 5kg Load Cell
ProductSiteLaunchDate : 2024-05-31T08:34:55.704Z
Reusability : Rechargeable
Size : One Size
StreetDate : 2017-03-14T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 52150000
