Specification
Brand : PZPZP
BulletPoint1 : Look beautiful, , anti-jamming performance
BulletPoint2 : Ultra- high-precision op amp circuit, high accuracy, good stability
BulletPoint3 : The power supply has reverse polarity protection, surge protection, overcurrent protection
BulletPoint4 : Suitable for weighing, pull pressure, torque, and other strain sensor.
BulletPoint5 : Housing and wire connectors are waterproof design, good sealing, suitable for harsh environments
Color : One Color
ExternallyAssignedProductIdentifier : 7504354410155

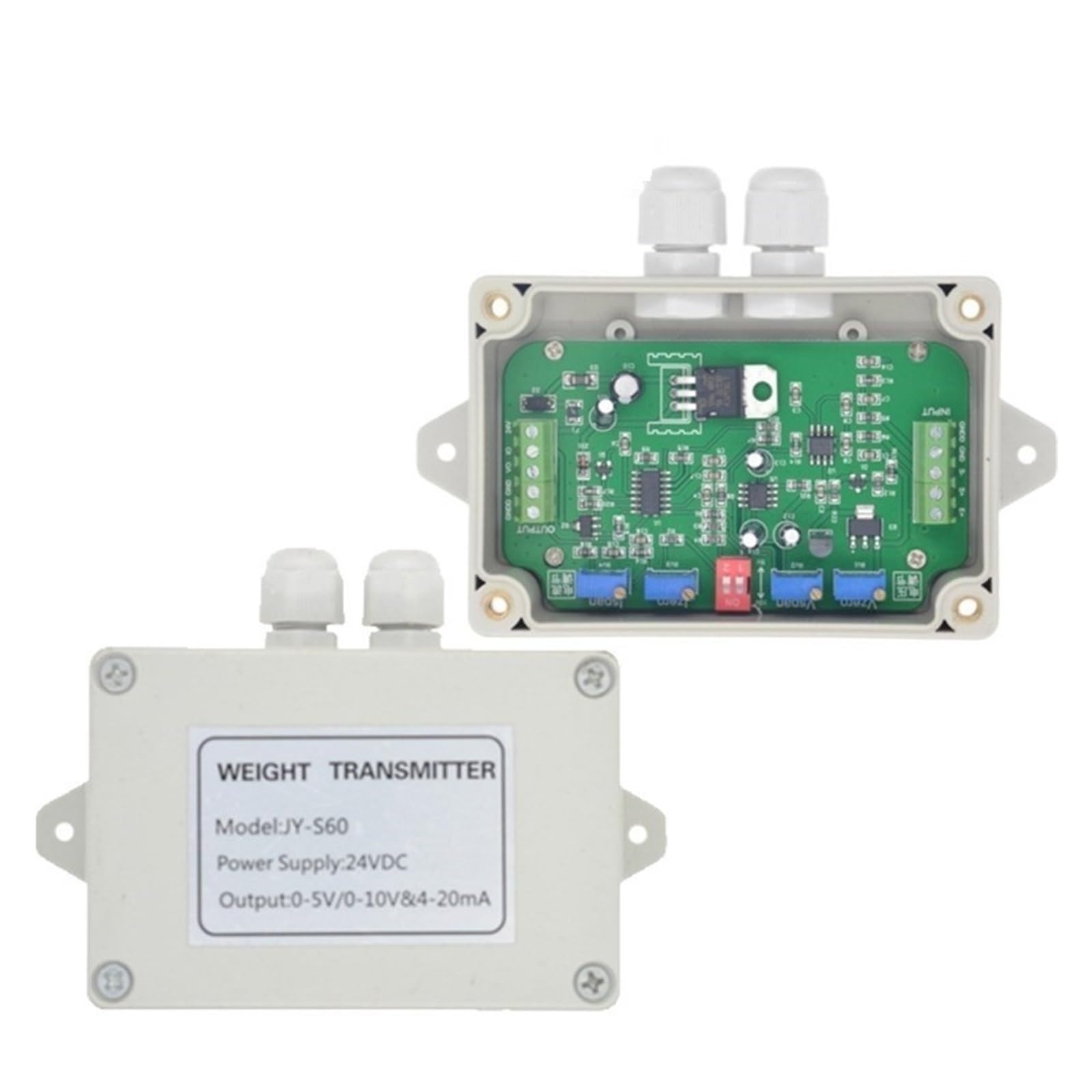

ItemName : Load Cell, Weighing Transmitter Weighing Amplifier Weight Sensor Voltage Current Converter DC 12-24V 4-20MA Load Cell Amplifier,for Measure Force, Pressure
ItemPackageDimensions_Height : 8 centimeters
ItemPackageDimensions_Length : 28 centimeters
ItemPackageDimensions_Width : 18 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-scale-and-balance-parts
Manufacturer : PZPZP
MeasurementAccuracy : 1
ModelNumber : 248610900
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 248610900
ProductDescription : Technical Parameters:
Working voltage: DC 12-24V
Output signal: voltage (0-5V, 0-10V, 1-5V, ± 5V) 4-20ma
input signal:sensor sensitivity 2.0MV/V
output incentive:5V(E+)
Operating temperature range: -20 - 80
Operating Humidity: 10% RH-90% RH (non-condensing)
Accuracy: better than 0.1% F.S
Precision is better than 0.05% F.S

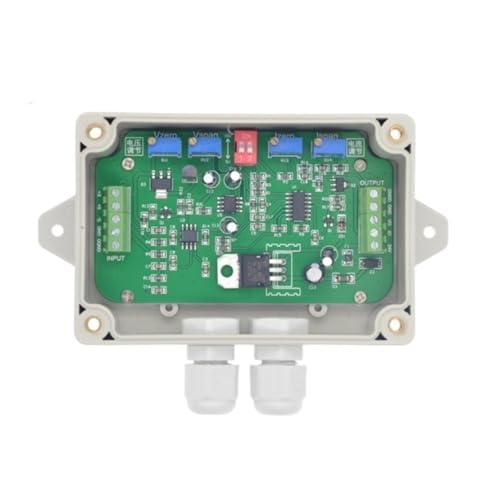

Gear selection:dial switch turn OFF , V0 output 0-5v , 1 turn to ON V0 output 0-10V
1 and 2 both turn to OFF VO output 0-5v IO output 4-20MA

About debugging:
1 zero adjustment
First of all, make the system is in the idle state, adjust the marking "ZERO" potentiometer to adjust the zero offset. The multimeter is used to measure the output voltage or current, let show a value as close as possible to the zero value display. Or change the magnification zero change will become big.
2 gain adjustment
The system loading a certain weight value (the recommended range: 80% ~ 100% FS), the calculation of the output current value according to the load weight and the maximum weighting value relation, using the digital multimeter monitoring output, potentiometer to adjust amplifier gain spin labeled "SPAN".
3 the retest
The system is in the idle state, measuring the zero output; loading a certain weight value, output voltage measurement whether fluoride expectation magnification If not, repeat steps 1, 2 adjust again.

Package:
1 x Load Cell sensor Amplifier Transmitter
ProductSiteLaunchDate : 2025-03-26T03:21:48.427Z
Size : One Size
UnitCount : 1
UnspscCode : 41111500
