Specification
Brand : MECCANIXITY
BulletPoint1 : Weighing Sensor uses 24-bit high-precision A/D conversion chip hx711, which is specially designed for high-precision electronic scales and has two analog input channels.Digital load cell weight sensor is made of aluminum alloy with parallel beam structure. Suitable for electronic kitchen scales, small appliance force measurement, and intelligent electronic weighing equipment.
BulletPoint2 : HX711 Weighing Sensor Operating Voltage:2.6-5.5V ; Load Cell maximum measures force: 20kg(44 lb) ; Rated Output Sensitivity: 1.0+/-0.1 mV/V ; Accuracy: 0.1g ; Output impedance:1000±50 ohm.
BulletPoint3 : The 24-bit A/D converter is used to provide accurate weight measurement results. The load cell converts applied force into an electrical signal, applying a 5-10V drive voltage, the force is directly output as a voltage change signal.
BulletPoint4 : Electronic sensor contains 4 leads for easy use,The weighing sensor needs to be connected to the HX711 module, red to E+, black to E-, green to A+, and white to A-
BulletPoint5 : One end of the sensor is fixed through the screw hole, and the other end is kept suspended. Apply gravity in the direction indicated by the label. Pay special attention not to press the white rubber part directly to avoid damaging the sensor.

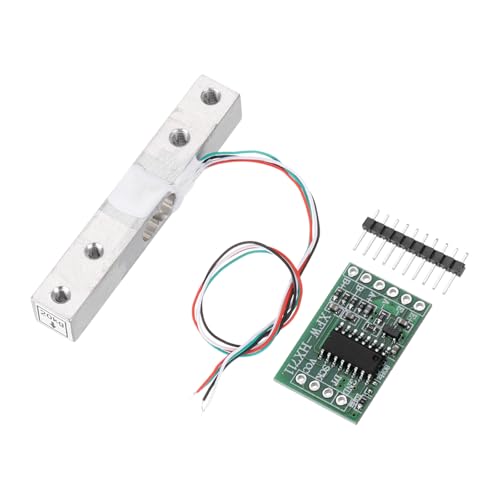

ItemName : MECCANIXITY Digital Load Cell Weight Sensor 20KG + HX711 Module Weighing Sensor 24 Bit Precision A/D Dual-Channel for DIY Portable Electronic Kitchen Scale Kit
ItemPackageDimensions_Height : 14 centimeters
ItemPackageDimensions_Length : 1.8 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-scale-and-balance-parts
Manufacturer : MECCANIXITY
Material : Aluminum
NumberOfBoxes : 1
PartNumber : mea240623ee000143
ProductDescription : What is this?
Weighing Sensor uses 24-bit high-precision A/D conversion chip hx711, which is specially designed for high-precision electronic scales and has two analog input channels.Digital load cell weight sensor is made of aluminum alloy with parallel beam structure. Suitable for electronic kitchen scales, small appliance force measurement, and intelligent electronic weighing equipment.

What will I get?
HX711 Weighing Sensor Operating Voltage:2.6-5.5V
HX711 Weighing Sensor Size:16x24mm/0.63 x 0.95 inch
Load Cell maximum measures force: 20kg(44 lb)
Rated Output Sensitivity: 1.0+/-0.1 mV/V
Zero output: ±0.1mV/V
Nonlinear: 0.05%F.S
Lag: 0.05%F.S
Repeatability: 0.05%F.S
Creep(5Min):0.05%F.S/3min
Output impedance:1000±50 ohm
Temperature Effect On Sensitivity: 0.05%F.S/°C
Temperature Effect On Zero: 0.05%F.S/°C
Accuracy: 0.1g
Size: 80x12.7x12.7mm/3.15 x 0.5 x 0.5 inch
Connection:Red to E+ / Black to E- / Green to A+ / White to A-
Package contains: 1pcs x HX711 Weighing Sensor + 1pcs x load cell weight sensor.

Are there any advantages of the product?
The 24-bit A/D converter is used to provide accurate weight measurement results. The load cell converts applied force into an electrical signal, applying a 5-10V drive voltage, the force is directly output as a voltage change signal.

How to use it?
Electronic sensor contains 4 leads for easy use,The weighing sensor needs to be connected to the HX711 module, red to E+, black to E-, green to A+, and white to A-

What should I notice?
One end of the sensor is fixed through the screw hole, and the other end is kept suspended. Apply gravity in the direction indicated by the label. Pay special attention not to press the white rubber part directly to avoid damaging the sensor.
