Specification
Brand : Wishiot
BulletPoint1 : You will get 4sets (load cell weight sensor + HX711 A/D Module)
BulletPoint2 : Weight options: 1kg 5kg 10kg 20kg
BulletPoint3 : Connection：Red to E+ / Black to E- / Green to A+ / White to A-
BulletPoint4 : Four leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal
BulletPoint5 : Made of high quality aluminium alloy, parallel beam structure, suitable for electronic kitchen scales, small appliances force measurement, pet feeders and other intelligent weighing equipment
CompatibleDevices : Personal Computer
ConnectorType : Screw
CoolingMethod : Air
ExternallyAssignedProductIdentifier1 : 0724518988727
ExternallyAssignedProductIdentifier2 : 724518988727
IncludedComponents : sensor

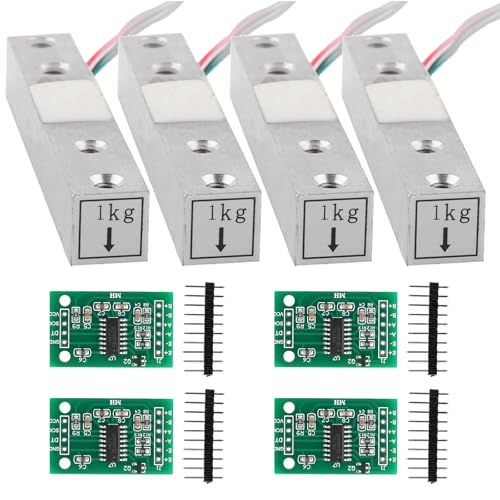

ItemName : Wishiot 4sets Load Cell Load Cells kit Weight Sensor +HX711 A/D Amplifier Module Weighing Sensor for DIY Kitchen Scale (4sets(1kg + hx711))
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-scale-and-balance-parts
Manufacturer : wishiot
Material : metal
MeasurementAccuracy : 0.15
ModelName : WH118
ModelNumber : a18081300ux0550
NumberOfBoxes : 1
NumberOfItems : 4
OutputWattage : 220 watts
PartNumber : WS0796X4+WS0728X4
ProductDescription : Description
Four leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal.
Dimensions: 12.7mm * 12.7mm * 80mm
Sensor through the screw hole at one end fixed and the other end to keep floating state, applying gravity following the direction indicated by label.
Particular attention must not directly push the white plastic cover part, so as not to damage the sensor.

Application: Kitchen scale
Module: YZC-133
Capacity: 1、5、10、20
Rated Output: 1.0±0.15mV/V
Nolinearity: 0.0005
Repeatability: 0.0003
Hysteresis: 0.0003
Creep(5Min): 0.001
Temperature Effect On Sensitivity: 0.003%RO/°C
Temperature Effect On Zero: 0.02%RO/°C
Zero Balance: ±0.1%RO
Input Resistance: 1066±20Ω
Output Resistance: 1000±20Ω
Insulation Resistance: 2000MΩ(50V)
Recommended Excitation Voltage: 5V
Compensated Temperature Voltage: -10~+50°C
Operating Temperature Range: -20~+65°C
Safe Overload: 120%RO
Ultimate Overload: 150%RO
Load Cell Material: Aluminium
Connecting Cable: φ0.8X180mm

HX711 Ad Module Load Cell Amplifier Green PCB for Arduino

Description:
●Two selectable differential input channels
●On-chip active low noise PGA with selectable gain of 3264 and 128
●On-chip power supply regulator for load-cell and ADC analog power supply
●On-chip oscillator requiring no external component with optional external crystal
●On-chip power-on-reset
●Simple digital control and serial interface: pin-driven controlsno programming needed
●Simultaneous 50 and 60Hz supply rejection
●Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA
●Operation supply voltage range: 2.6 ~ 5.5V
●Operating Temperature Range:-20 degree ~ +85 degree
Package included
4 X Weight Sensor 4 X HX711 A/D Module
