Specification
Brand : MECCANIXITY
BulletPoint : Back up washers, Rivets, rivet washers, washers,
BulletPoint1 : The nitrile rubber is bonded by heat and pressure to the outer ring, which holds it in place. This structure increases resistance to bursting, increasing the pressure rating of the seal
BulletPoint2 : Materials: Galvanized Carbon Steel; Nitrile Butadiene Rubber (NBR): Hardness: 60A; Working Temperature Range: -20°C to 100°C (-4°F to 212°F)
BulletPoint3 : Fit for Size: G1/4; Outer Diameter: 20.5mm; Inner Diameter: 11.5mm; Thickness: 2.9mm
BulletPoint4 : Because the bonded washer itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket. This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings
BulletPoint5 : The self-centering bonded washers are high-pressure seals that are used in the Mechanical, Hydraulic, and Pneumatic pipelines
Color : Silver
ExteriorFinish : Plain
ExternallyAssignedProductIdentifier1 : 0094705913642
ExternallyAssignedProductIdentifier2 : 094705913642
FinishType : Zinc Plating
ItemName : MECCANIXITY Bonded Sealing Washers G1/4 20.5x11.5x2.9mm Carbon Steel Nitrile Rubber Gasket, Pack of 10
ItemPackageDimensions_Height : 0.59 inches
ItemPackageDimensions_Length : 5.12 inches
ItemPackageDimensions_Width : 3.94 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : sealing-washers
Manufacturer : MECCANIXITY
Material : Carbon Steel, Nitrile Rubber
MetalType : Alloy Steel
NumberOfItems : 250
NumberOfPieces : 500
PartNumber : mea210529ee0050
ProductDescription : What will I get?Color: Silver, Black
Material: Carbon Steel, Nitrile Butadiene Rubber (NBR)
Metal Surface Treatment: Galvanized
Fit for Size: G1/4

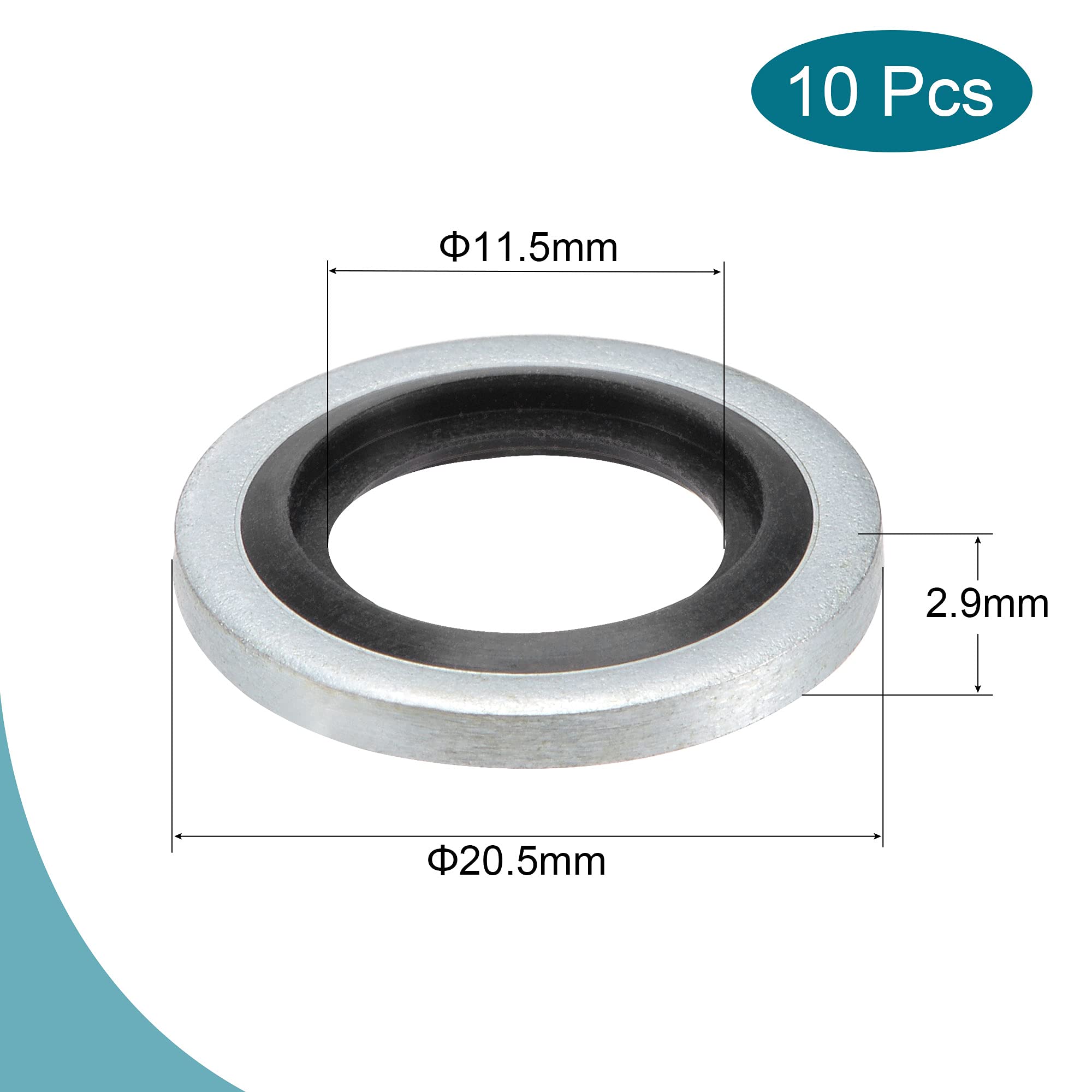

Outer Diameter: 20.5mm
Inner Diameter: 11.5mm
Thickness: 2.9mm
NBR Hardness: 60A
NBR Working Temperature Range: -20°C to 100°C (-4°F to 212°F)
Package Contents: 10 x Bonded Seals

What is this?

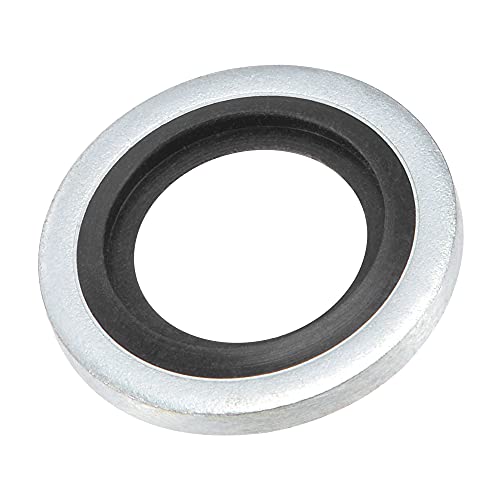

A bonded seal is a type of washer used to provide a seal around a screw or bolt. Consists of an outer annular ring of carbon steel and an inner annular ring of NBR that acts as a gasket.

Are there any advantages of the product?The nitrile rubber is bonded by heat and pressure to the outer ring, which holds it in place. This structure increases resistance to bursting, increasing the pressure rating of the seal.
Because the bonded washer itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket. This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings.

How to use it?
The self-centering bonded washers are high-pressure seals that are used in the Mechanical, Hydraulic, and Pneumatic pipelines.
ProductSiteLaunchDate : 2021-08-30T10:14:47.211Z
Size : G1/4
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 31161800
WasherType : Flat
