Specification
Brand : TESmart
BulletPoint1 : Experience True Seamless Switching: Switch in less than 50 ms, faster than the blink of an eye
BulletPoint10 : You can switch between the 8 input sources with the fullscreen view. Switching can achieve a seamless effect. There is no black screen during the switching and noneed to wait until the next screen is displayed after switching
BulletPoint2 : The 8x8 HDMl Matrix features seamless switch between multiple sources and multipledisplays. Each HDMl output on our HDMl Matrix supports full Screen View and Quad-View mode
BulletPoint3 : All the HDMI outputs can share the same input or select standalone inputs
BulletPoint4 : Support resolution up to 1920x1080@60Hz
BulletPoint5 : Support audio separation which could play audio independently corresponding to the HDMI output port

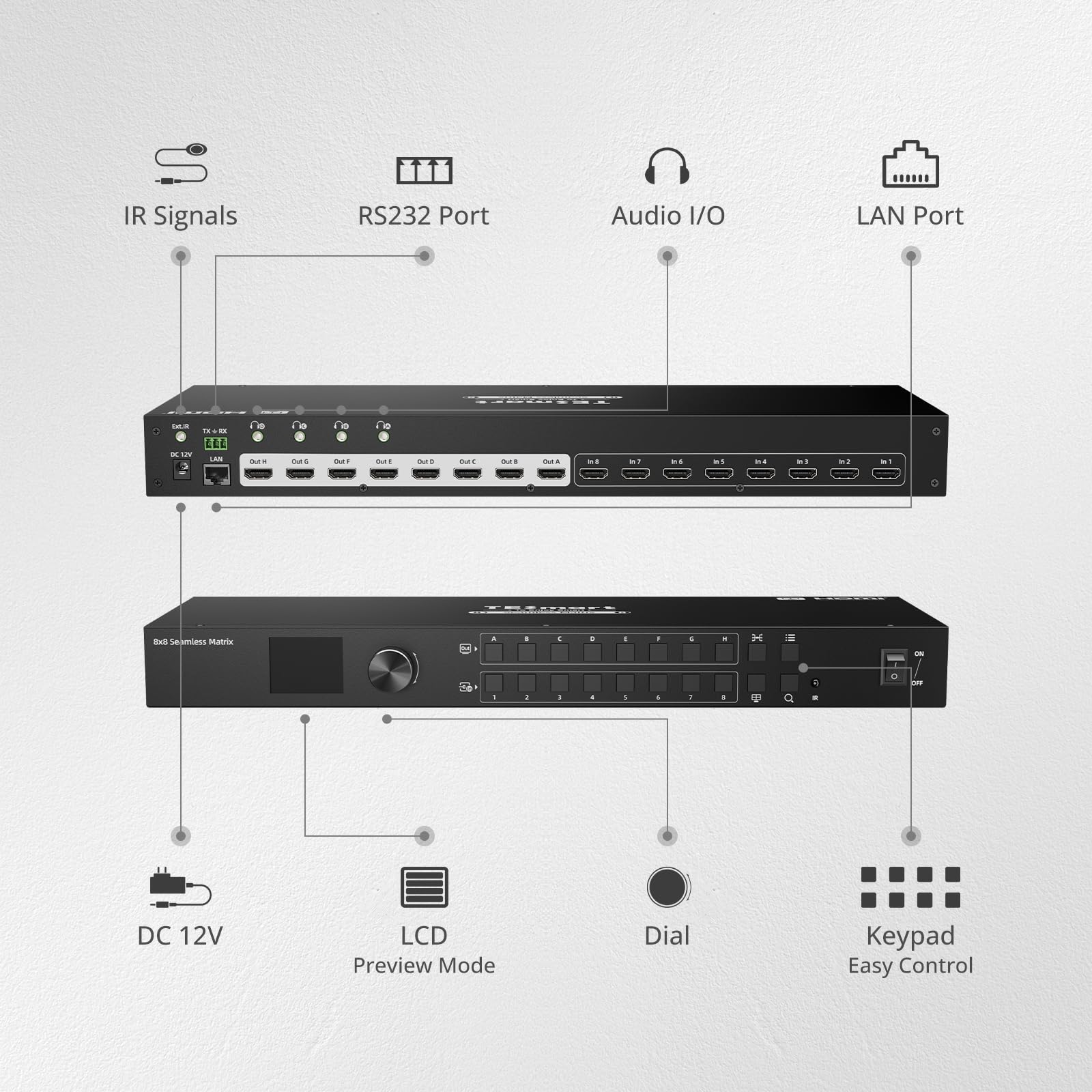

BulletPoint6 : Easy to control matrix via front panel buttons or the dial, IR receiver, and PC (via LAN or RS232 port)
BulletPoint7 : Support 4 configurable user preset connections: the LCD on the front panel supports real-time viewing of the screen on each port, preview mode allows you to quickly observe the current display status of each portthrough the LcD screen, especially if the displays are far from the matrix
BulletPoint8 : Support custom naming for each port
BulletPoint9 : Matrix status could be memorized after power down, automatically restoring the previous matrix status after the next power on
CompatibleDevices : Gaming Console
CompatibleDevices1 : Television
CompatibleDevices2 : Monitor
CompatibleDevices3 : Gaming Console
CompatibleDevices4 : Blu-Ray Player
CompatibleDevices5 : Personal Computer
CompatibleDevices6 : DVD Player
CompatibleDevices7 : Satellite Receiver
ConnectorGender : Female-to-Male
ConnectorType : HDMI
ItemName : TESmart 8x8 Seamless HDMI Matrix Switch 1920x1080@60Hz Remote Control, Supports Audio Splitting, Preview Mode, RS-232, LAN Control, Rename Port
ItemPackageDimensions_Height : 48.4886 centimeters
ItemPackageDimensions_Length : 12.3952 centimeters
ItemPackageDimensions_Width : 20.2946 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : audio-video-selectors
Manufacturer : TESmart
ModelNumber : HMA808-ES23
NumberOfItems : 1
NumberOfPorts : 16
OutputWattage : 28
PartNumber : XX-MC1024-BOX-2024
ProductDescription :

Experience True Seamless Switching: Switch in less than 50 ms, faster than the blink of an eye.

With 8 HDMI inputs and 8 HDMI outputs;

All the HDMI outputs can share the same input or select standalone inputs;

Support resolution up to 1920x1080@60Hz

Support Quad-view display mode;

Support seamless switching on full-screen mode;

Supports 4 separate audio ports, allowing for customizable output audio channels;

The LCD on the front panel supports real-time viewing of the screen on each port;

Support custom naming for each port;

Support one-key querying of the current routing status;

Matrix status could be memorized after power down, automatically restoring the previous matrix status after the next power on;

Support 4 configurable user preset connections;

Easy to control matrix via front panel buttons or the dial, IR receiver, and PC (via LAN or RS232 port).

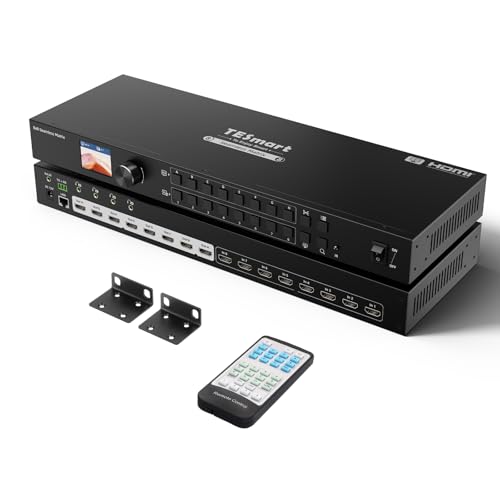

Packing List

1 * 8x8 HDMl Matrix

1 * |R Remote Control

1 * IR Extension Cable

1* 3 Pins Connector (For RS232)

1* DC 12V Power Adapter

2* Rack-ears

1* User Manual

Tips: After receipt of the product, please check the packing list carefully to make sure that no components havebeen lost and no damage to the product has been caused during transportation. lf you have anyproblems, please contact us at any time.

ProductSiteLaunchDate : 2024-09-06T02:20:03.679Z
Size : 22.5×12.5×5cm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 52161500
WarrantyDescription : TESmart (Manufacturer) warranty for 365 days from date of purchase
Wattage : 28 watts
