Specification
Brand : YedaHcy
BulletPoint1 : Measurement: Equipped with ADS1256IDB chip, this data acquisition module ensures precise data collection with low nonlinearity of 0.0010%.
BulletPoint2 : Wide Application Scope: Ideal for research and development projects, factory automation, and laboratory testing, providing valuable data for analysis.
BulletPoint3 : Low Noise Performance: The module offers up to 23 bits noise- resolution, ensuring clear and accurate data readings.
BulletPoint4 : High-Speed Data Output: With a data output rate of up to 30ksps, this module delivers rapid results, enhancing efficiency in data processing.
BulletPoint5 : Robust Construction: Made with stable soldering and high-quality PCB material, ensuring long-term durability and performance.

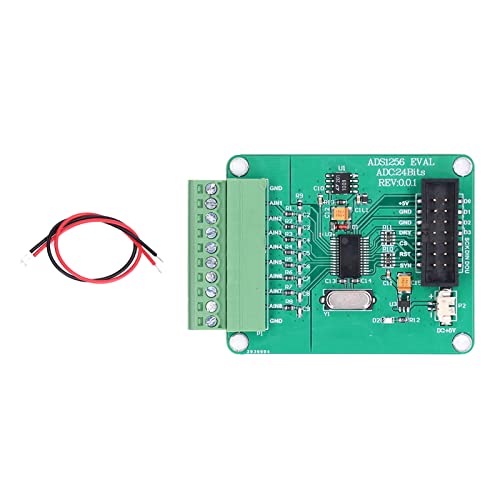

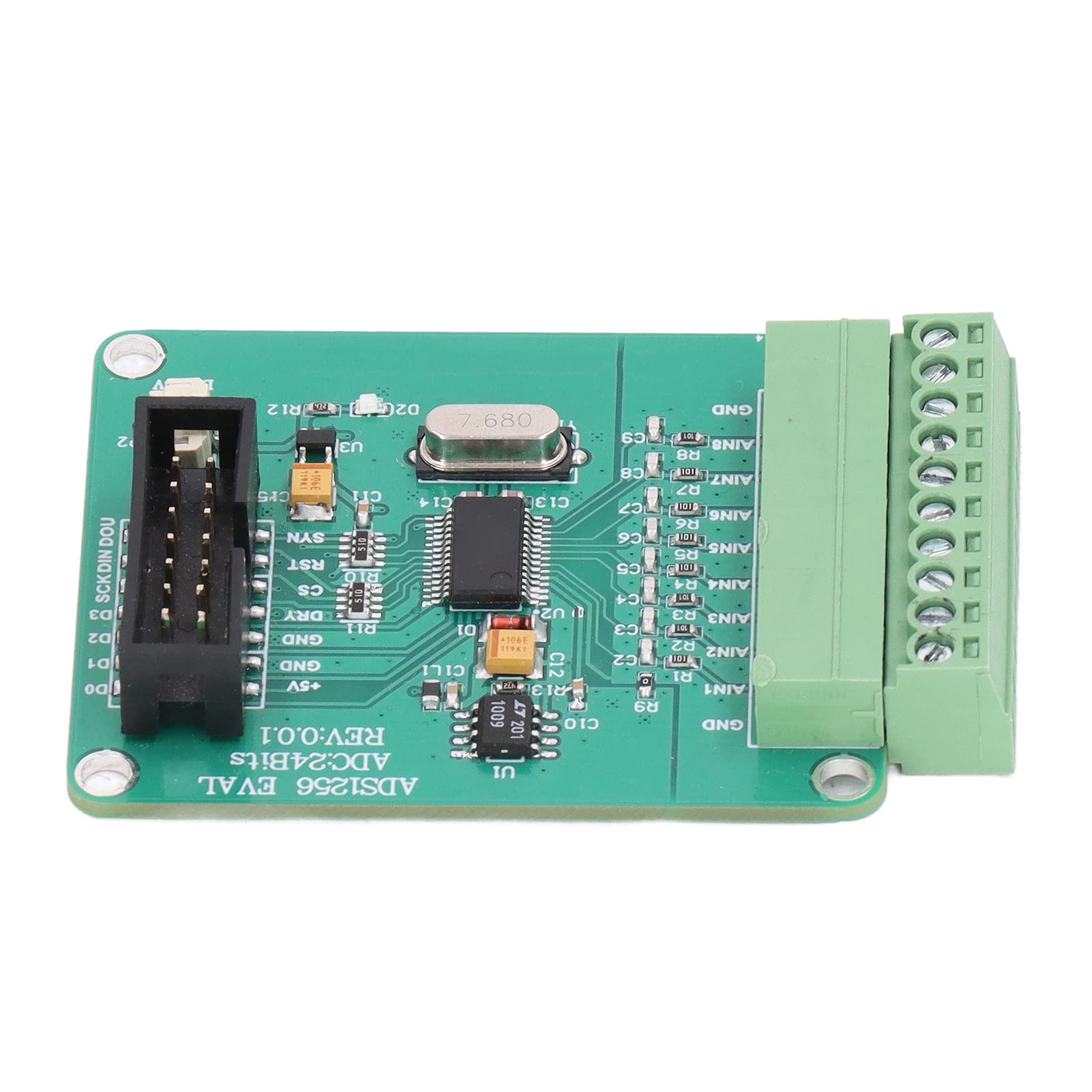

ItemName : 24 Bit 8 Channel Data Acquisition Module with ADS1256 Chip, Wide Usage in RD, Factory, Lab, Low Noise, High Speed 30ksps Output, SPI Interface
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemTypeKeyword : sensor-blocks
Manufacturer : YedaHcy
ModelNumber : YedaHcywz7n23iysk
NumberOfItems : 1
PartNumber : YedaHcywz7n23iysk
ProductDescription : Item Type: Data Acquisition Module
Material: PCB
Chip: ADS1256IDB
Output Rate: 30ksps
Low Nonlinearity: ±0.0010%
Sampling Rate: 30ksps
Fast Channel Looping: -18.6 bits noise (21.3 significant bits)
Single Cycle Single Conversion Steady State: 1.45kHz
Noise Resolution: ±0.001
Reference Voltage Source: 2.5V
Communication Interface: SPI
Differential Input: 4 (ADS1256 only)
Single End Input: 8 (ADS1256 only)
Working Voltage: 5V
Low Noise PGA: 27nV input delay noise

Package List：
1 x

Data Acquisition Module1 x Connect Cable

Note:
Since the power supply voltage of ADS1256 is 5V, and the measured voltage should be 2.5V lower than the power supply voltage, the module is only suitable for measuring analog voltages within 3V.
