ItemName : Automation & Motion Controls 1PCS ADS1256 24Bits AD Module Analog to Digital Communication Capture Board Modu
ItemTypeKeyword : sensor-blocks
Manufacturer : MountRuby
Material : Copper
PartNumber : TM-Mou-EB157-SW1-1774
ProductDescription :

Product Description:

Chip Introduction:

- Model: ADS1256IDB

- Precision: 24bits

- Input channel: 8CH

- Output speed ratio: Max. up to 30K SPS

- Range interval: 7 selectable

- Non-linearity: +/-0.0010%

- Communication: SPI, MCU

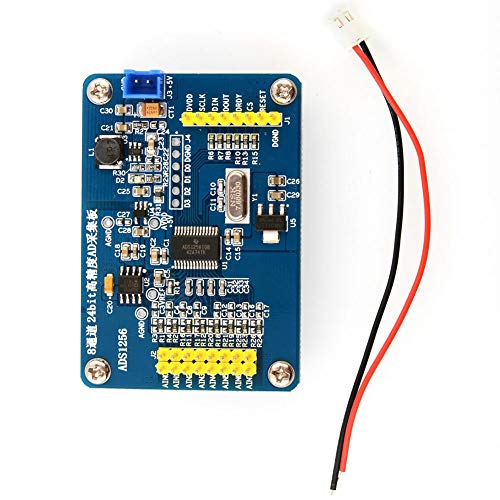

Board Introduction:

1. Power input terminal, up is GND, down is +5V

2. AMS1117-3.3V regulation chip, generate 3.3V voltage

3. VDD voltage selection, 3.3V/1.8V

4. AMS1117-1.8V regulation chip

5. Main chip ADS1256

6. ACOM signal selection configuration

7. 5V analog power output port

8. ACOM output port

9. Analog ground output port

10. 8CH input AD capture point

11. Input resistance

12. Input decay resistance

13. Input filter capacitor

14. OPA350 amplifier

15. Crystal oscillator, 7.68M

16. TI 2.5V generation chip, Model is: REF1004-2.5

17. Digital GND/Analog GND completely isolated, single point ground

18. Digital input/output port, connect with external DSP, MCU, FPGA

19. L1/L2 as power filter magnet ball

Package includes:

1PCS ADS1256 24Bits AD Module Analog to Digital Communication Capture Board Module
