Specification
BulletPoint : select:GY-BNO055
ExternallyAssignedProductIdentifier : 7424018648673
ItemName : Electronic Components 9DOF BNO055 9-Axis Attitude Angle Gyroscope Module AHRS Calman Filter Sensor - (Select:GY-BNO055)
ItemTypeKeyword : sensor-blocks
Manufacturer : MountRuby
Material : Copper
PartNumber : TM-Mou-EB246-ss3-993
ProductDescription :

Product Description:

Home

Arduino

Module

Sensor

Chips

About Us

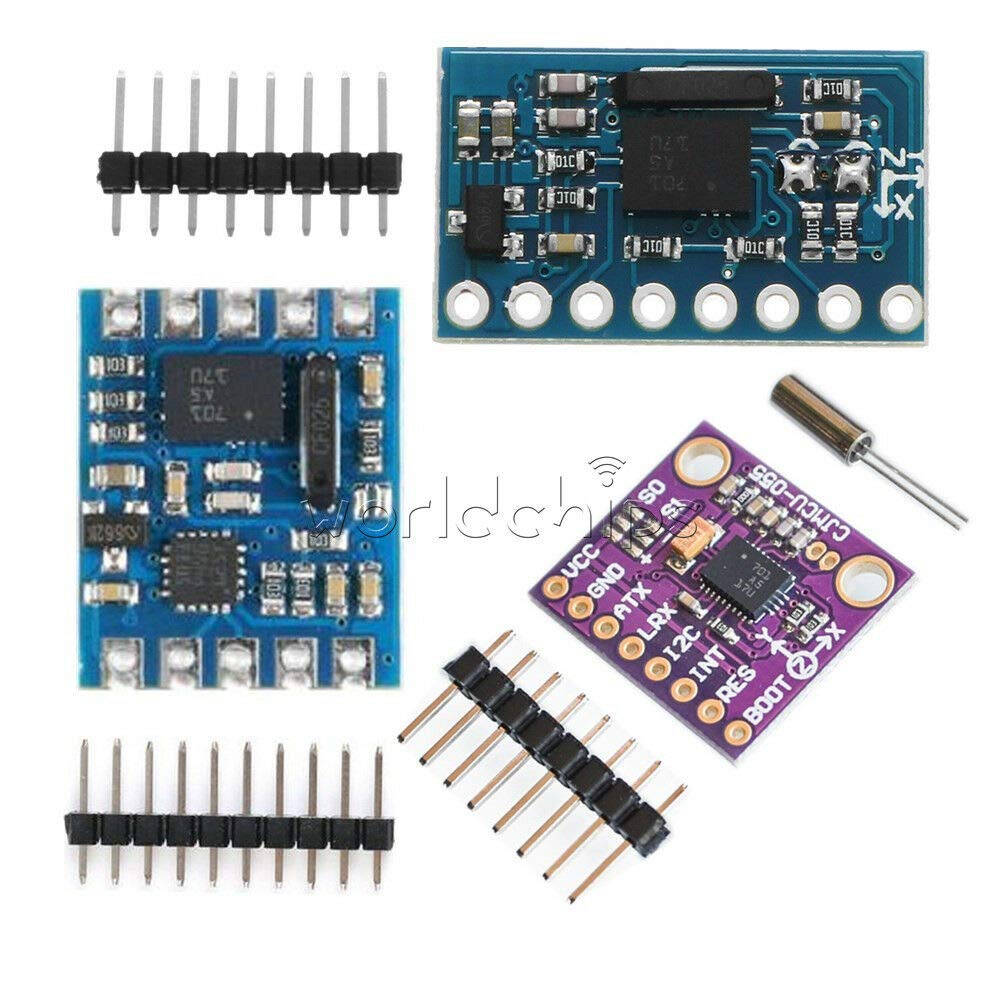

CJMCU-055

Description:

Package Included:

1PC*MCU+9DOF BNO055 Intelligent 9Axis Attitude Sensor Module

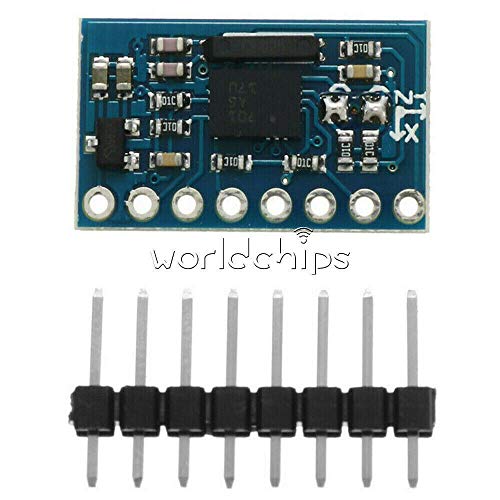

GY-BNO055

Features:Module Model: GY-BNO055Use the chip: BNO-055Power supply: 3-5v (internal low voltage regulator)Communication method: standard IIC / serial communication protocolCommunication: Module size 12mm * 20mmApplications:Bosch Sensortec BNO055 Intelligent 9-Axis Absolute Orientation Sensor is a System in Package (SiP), integrating a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of ±2000 degrees per second, a triaxial geomagnetic sensor and a 32-bit ARM Cortex M0+ microcontroller running Bosch Sensortec sensor fusion software, in a single package. The corresponding chip-sets are integrated into one single 28-pin LGA 3.8mm x 5.2mm x 1.1mm housing. For optimum system integration the BNO055 is equipped with digital bidirectional I2C and UART interfaces. The I2C interface can be programmed to run with the HID-I2C protocol turning the BNO055 into a plug-and-play sensor hub solution for devices running the Windows 8.0 or 8.1 operating system.Package Included:1 x BNO055 Attitude Sensor Angle Gyroscope Module

GY955 AHRS

Product Description

Product Parameters

Measuring range: -180 ° ~ 180 °Resolution: 0.01 °Measurement accuracy: 2 °Repeatability: 2 °Response frequency: 100 HZ (115200 bps)Working voltage: 3 ~ 5 VWorking current: 15mAOperating temperature: -20 ° ~ 85 °Storage temperature: -40 ° ~ 125 °Size: 14.6mm × 17.8mm

Product Features Technical parameters

Cost-effectiveBuilt-in MCU calculation anglesmall volumeSerial communication formatWith the corresponding host computer software

Applications

Handheld instrumentationRobot navigation, positioningVoyage model systemBalance carAntenna pitch positioning

Pin descri
ProductSiteLaunchDate : 2020-06-24T09:58:05.606Z
Size : GY-BNO055
UnspscCode : 39121400
