Specification
ExternallyAssignedProductIdentifier : 7424025863816

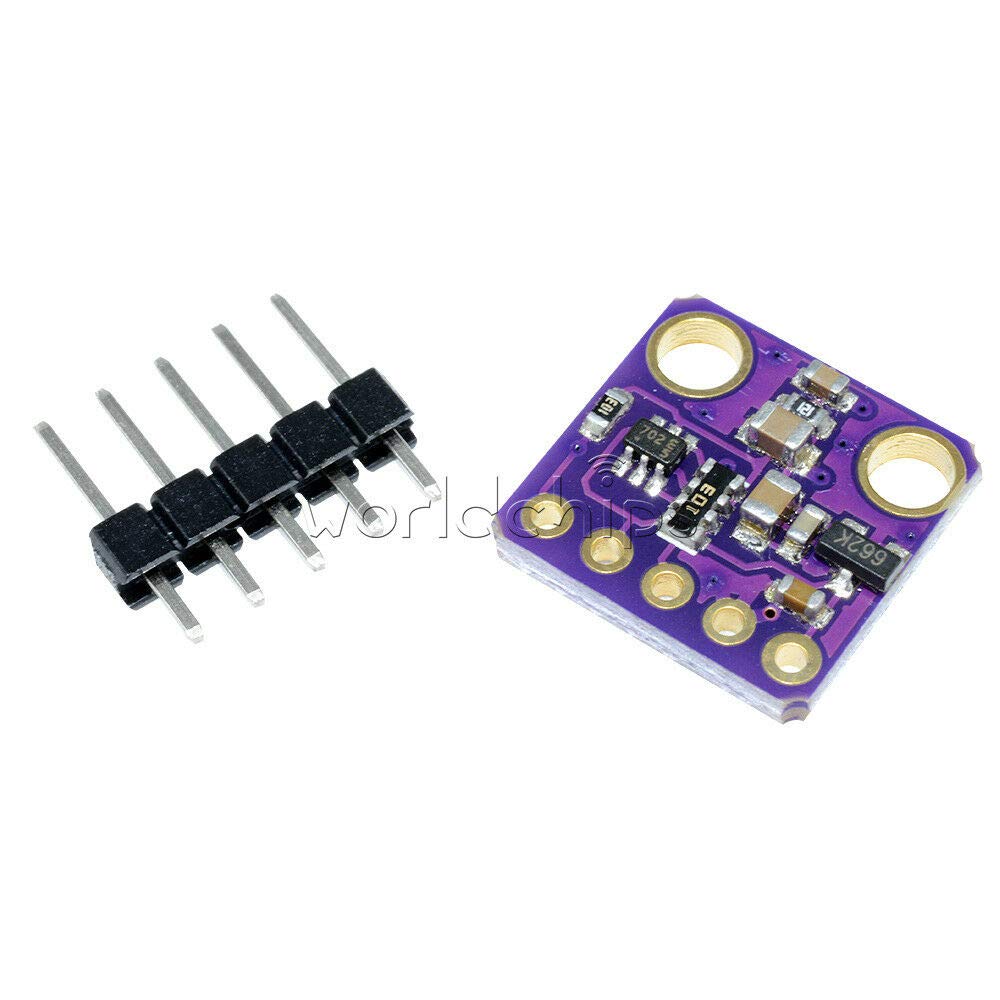

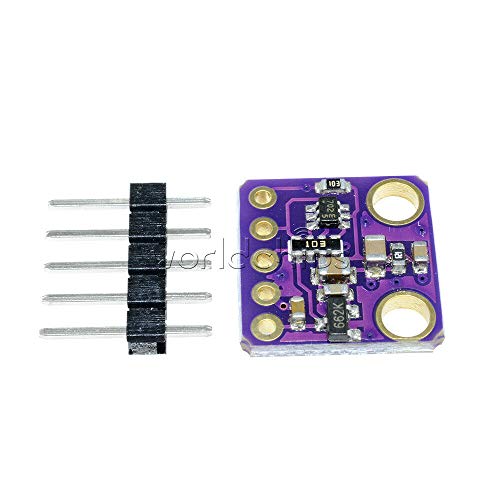

ItemName : Electronic Components APDS-9930 LLC Attitude Sensor Module I2C ALS IR LED Proximity&Attitude Sensors
ItemTypeKeyword : sensor-blocks
Manufacturer : MountRuby
Material : Glass
PartNumber : TM-Mou-EB246-ss3-402
ProductDescription :

Product Description:

Home

Arduino

Module

Sensor

Chips

About Us

Description:The APDS-9930 provides an I2C interface-compatible Ambient Light Sensor (ALS) and a proximity sensor with an infrared LED in a single 8-pin package, where the ambient light sensor uses a dual photodiode to approximate 0.01 lux illumination. The performance of the human eye visual response provides the high sensitivity that allows the device to operate after dark glass. The proximity sensor is fully calibrated for 100 mm object detection, eliminating factory calibration requirements for terminal and subassemblies. From the bright sunlight to the dark room, the proximity detection function works well. The addition of micro-optical lenses to the module provides high efficiency of infrared energy transmission and reception, can reduce the overall power consumption. In addition, the internal state machine allows the device to enter the low power mode, bringing very low average power consumption.Features:

Integrated optics for ALS, IR LEDs and proximity detectors Ambient Light Sensing (ALS, Ambient Light Sensing) Approximate visual response to the human eye Programmable interrupt function with upper and lower thresholdsUp to 16-bit resolutionDark glass after the operation of the high sensitivity0.01lux low lumen performance

Proximity detection Fully calibrated to 100 mm detectionIntegrated infrared LED and synchronous LED driverEliminate plant calibration for proximity sensors

Programmable wait timer Wait state power consumption - 90μA typicalThe programmable range is 2.7 milliseconds to greater than 8 seconds

I2C interface compatible Up to 400kHz (I2C fast mode)Dedicated interrupt pin

Sleep mode power - 2.2μA typical Small package 3.94 (long) x 2.36 (W) x 1.35 (H) mmApplication:

Adjustable phone backlighting You can disable the phone touc
ProductSiteLaunchDate : 2020-06-24T09:58:06.036Z
UnspscCode : 46171600
