Specification
AgeRangeDescription : adult
Brand : Tomantery
BulletPoint1 : [Premium Quality] Compact design with a working voltage of 3.3v-5v and analog voltage output for accurate flame detection.
BulletPoint2 : [Clean Output] Comparator output with a strong driving ability of over 15ma for reliable flame detection.
BulletPoint3 : [Adjustable Sensitivity] Features a blue digital potentiometer for sensitivity adjustment, ensuring precise flame detection.
BulletPoint4 : [Highly Sensitive Flame Detection] Can detect flames or light within 760~1100nm wavelength, with a detection angle of 60 degrees.
BulletPoint5 : [Wide Application] Suitable for flame alarm systems, with easy installation using fixed bolt holes.
Color : One Color
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 7621470534050

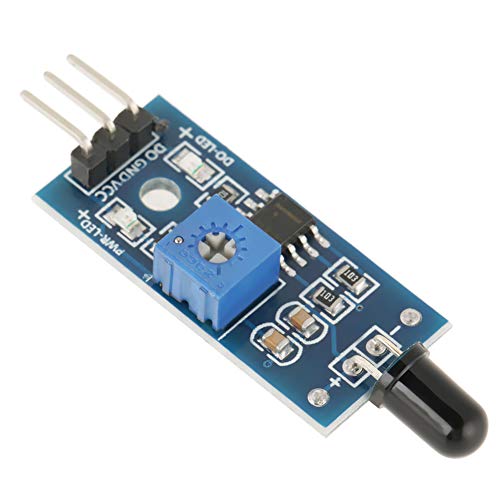

ItemName : IR Flame Sensor Module Infrared Detector Adjustable Sensitivity for Flame Detection 5 pcs SmartSense Flame Sensor Detector Flame Sensor Module Detector 5 pcs
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 5 centimeters
ItemPackageDimensions_Width : 3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sensor-blocks
Manufacturer : Tomantery
ModelName : Tomantery3oy1h74pqt
ModelNumber : Tomantery3oy1h74pqt
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Tomantery3oy1h74pqt
ProductDescription : Specification:
Features:
Can detect a flame or the light of 760~ 1100nm wavelength, lighter flame test distance of 80cm, for the greater flame, the farther the distance test.
The detection angle is about 60 degrees, particularly sensitive to the flame spectrum.
Sensitivity is adjustable (shown in blue digital potentiometer adjustment).
Comparator output, clean, good waveform, strong driving ability, more than 15mA.
With adjustable precision potentiometer for sensitivity adjustment.
With fixed bolt holes for easy installation.
Specifications:
The working voltage: 3.3V-5V
The output format: DO digital switching outputs (0 and 1) and AO analog voltage output
Comparator: wide voltage LM393
Length: 4.5cm / 1.77in
Weight: 4g
Wiring instructions:
Product wiring description:
VCC: 3.3-5V power supply +
GND: power supply -
DO: TTL switch output.
AO: analog output (voltage signal)
Instructions for use:
1. the flame sensor is most sensitive to flame, for ordinary light, it is also responsive
, generally used as a flame alarm purposes.
2. the output interface can be directly connected to the micro-controller IO port.
3. The sensor must be kept at a distance from the flame to avoid damage to the sensor.
lighter flame test distance of 80cm, for the greater flame, the farther the distance test
4. Analog output and the AD conversion process, can achieve higher accuracy
5. When the sensor detects a flame, sunlight, or infrared light, if achieve potentiometer setting threshold, the green indicator light will ON, the DO output low level (0-0.1 - V), the green light is OFF, the DO output about 3 V high voltage level
Package included:
5 x IR Flame Sensor Module
ProductSiteLaunchDate : 2024-10-12T08:25:55.166Z
Size : YGC-GHFS-KV-A2
UnitCount : 1
UnspscCode : 39122300
