Specification
Brand : Reland Sun
BulletPoint : QRE1113 IR LED Infrared Reflection Sensor Module Capacitor Discharge Circuit Breaker Board DC 3.3 -5V
BulletPoint1 : Infrared obstacle avoidance sensor module Infrared can be widely used in robot obstacle avoidance, obstacle avoidance car, line counting, and black and white online tracking and so on.
BulletPoint2 : The module detects the distance 2 ~ 30cm, detection angle 35°, the distance can detect the potential is adjusted.
BulletPoint3 : The output OUT output sensor module can be directly connected to the IO port of the microcontroller, you can directly direct a 5V relay.
BulletPoint4 : It has a pair of infrared transmission and reception tube, infrared tube emit a certain frequency, when the detection of the direction encounter obstacles (reflective surface), reflected infrared receiving tube, after the circuit comparator processing, the indicator green at the same time Signal output interface to the digital output signal (low level signal).
BulletPoint5 : Can be used for 3-5V DC power modules. It has red power indicator.
ConnectorType : D Sub
ExternallyAssignedProductIdentifier : 5303396717572
ExternallyAssignedProductIdentifier1 : 0739227848989
ExternallyAssignedProductIdentifier2 : 739227848989

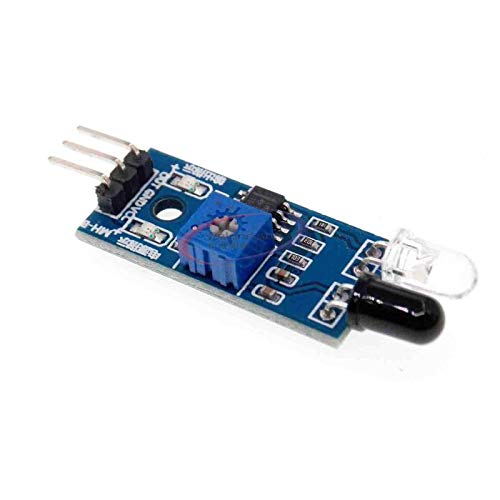

ItemName : IR Infrared Barrier Module Sensor Obstacle Avoidance for Intelligent Car Robot
ItemPackageDimensions_Height : 0.7 inches
ItemPackageDimensions_Length : 7.08 inches
ItemPackageDimensions_Width : 4.72 inches
ItemPackageQuantity : 1
ItemTypeKeyword : sensor-blocks
Manufacturer : Reland Sun
Material : copper
Material1 : Acrylonitrile Butadiene Styrene (ABS)
Material2 : Copper
ModelNumber : TSL1401CL
MountingType : PCB Mount
NumberOfItems : 1
NumberOfPositions : 9
PartNumber : 739227848989
ProductDescription : Description:
1.When the module detects an obstacle in front of the signal, the green light on the level of the board, while the OUT port of the output signal continues low level, the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can be adjusted in the clockwise direction of the adjustment potentiometer to detect the increased distance; Counterclockwise to adjust the potentiometer to reduce the detection distance.
2.The active infrared sensors for detecting the reflected, and hence the shape of the reflectivity of the target detection range is critical. The minimum detection distance which is black, maximum white.
3. The output port of the OUT sensor module can be directly connected to the IO port of the microcontroller, you can directly drive a 5V relay; Connection: VCC-VCC; GND GND-; OUT-IO.
4.Use the LM393 comparator, stable.
5.Can be used for 3 to 5 V DC power supply modules. When the power is turned on, the red power light turns on.
6.With 3mm screw holes, easy and fixed installation.
7.Size of the card: 4.7CM x1.4CM.
8.Each sending module comparing the threshold voltage has been adjusted by the potentiometer is good, not exceptional circumstances, do not arbitrarily adjust the potentiometer.

Specification:
Hardware: PCB card and electronic component.
Operating Voltage: 3.3-5V.
Effective Distance: 2-30cm.
Detection angle: 35 °.
Weight (kg): 0.034.
VCC: 3.3V-5V external voltage (can be directly connected to 5v MCU and 3.3v MCU).
GND: GND External.
OUT: small card digital output interfaces (0 and 1).

Package Included:
1 x Infrared Obstruction Avoidance Sensor
ProductSiteLaunchDate : 2021-12-14T13:11:52.014Z
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
Voltage : 5 volts
