Specification
Brand : PartsNovar
BulletPoint : Photosensitive brightness resistance sensor module Light intensity detect For Arduino
BulletPoint1 : Package Content: 8 PCS. of Bare Copper 1/0 Gauge (AWG) 3/8" and 8 PCS. of Bare Copper 1/0 Gauge (AWG) 5/16" tinned battery terminal rings with 16 PCS heat shrink tubing.
BulletPoint2 : High Quality: Bare copper battery cable ends are made from 99.99% annealed copper,with a heavy duty construction for high temperature durability designed, special treatment surface for corrosion protection,good weldability. And enhanced mechanical strength can be crimped or soldered.
BulletPoint3 : Premium Wire Protector:The heat shrink tubing are made of polyolefin.The adhesive forms a robust, moisture-resistant marine grade waterproof seal that shields your connections from external factors like water, dust, and contaminants.
BulletPoint4 : Convenient to use: All the copper battery lugs with identification mark,suitable for standard size AWG cable ,various types of wire gauges to choose.And closed end,keeps out moisture to keep cables dry.
BulletPoint5 : Wide Applications: The Copper Ring Terminals can be used for automobile, motorcycle, distribution box, golf carts, solar panels, marine, home applications, DIY electrical wirings and other outdoor applications.
Color : Silver
ConnectorType : Ring
ExternallyAssignedProductIdentifier : 4652292168454
IncludedComponents : Terminal,Heat Shrink Tubing

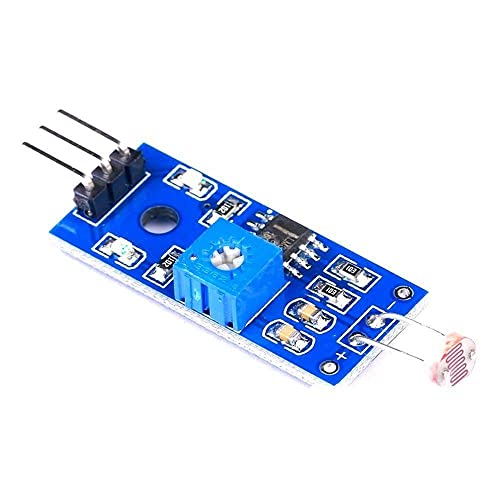

ItemName : Photosensitive Brightness Resistance Sensor Module Light Intensity detect for Arduino
ItemPackageDimensions_Height : 1 inches
ItemPackageDimensions_Length : 5 inches
ItemPackageDimensions_Width : 4 inches
ItemTypeKeyword : sensor-blocks
Manufacturer : PartsNovar
Material : iron
MaximumVoltage : 600 volts
MeasurementSystem : Wire Size
NumberOfItems : 16
OperatingVoltage : 220 volts
PartNumber : FJGNEWicmz-00100
ProductDescription :

The module features:
1, using sensitive type photosensitive resistance sensor
2, the comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma.
3, with adjustable potentiometer can detect light brightness adjustment
4, the working voltage of 3.3 V to 5 V
5, the output form: digital switch output (0 and 1)
6, has a fixed bolt hole, convenient installation
7, small board PCB size: 3.2 cm x 1.4 cm
8, using the LM393 wide voltage comparator
Module instructions
1, the photosensitive resistance module's most sensitive to ambient light, generally used to detect the environment around the brightness of the light, or MCU trigger relay module, etc.;
2, module in the environment light intensity short of setting threshold, output high level DO end, when the environment light intensity more than set threshold, output DO low level;
3, the DO output can be attached directly to the single chip microcomputer, through single chip microcomputer to detect the high and low level, thus to detect the environment light intensity change;
4, the DO output can be directly driven our relay module, which can form a light-operated switch.

The wiring diagram:
Source code:

Aduino test program for DO connection (for example) :
Aduino test program for DO connection (for example) :

Int Led = 13; / / define LED interface
Int buttonpin = 3; / / define the photosensitive resistance sensor interface
Int val. / / define digital variable val
Void setup ()
{
PinMode (Led, the OUTPUT); / / define the LED for the output interface
PinMode (buttonpin, INPUT); / / define photosensitive resistance sensor as the input interface
}
Void loop ()
{
Val = digitalRead (buttonpin); / / to assign the value of digital interface 3 read val
If (val = = LOW) / / when the photosensitive resistance sensors have a signal, the LED light <
ProductSiteLaunchDate : 2021-12-28T08:05:38.309Z
Size : 1/0 AWG - 3/8"(M10) Ring+1/0 AWG - 5/16"(M8) Ring
StudSize : 3/8
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TemperatureRating : 125 degree celsius
TerminalType : Ring Terminal
UnspscCode : 39120000
