Specification
Brand : QCCAN
BulletPoint1 : The module Operating voltage: 12V. Output type: Output switch. Control capacity: maximum 10A. Detection frequency: 1MHZ. Load capacity: 10A / AC 250V or DC up to 30V.
BulletPoint2 : Indicator light: LED; RED LED ON: Indicate the Power ON; BLUE LED ON: Relay is working. Installation: Screw fixation, Module output terminal has three ports.
BulletPoint3 : Protective function: on-board optocoupler isolation drive relay, effective protection of the chip, with anti-reverse function.
BulletPoint4 : Application: Great for light detection, brightness detection and control , through the potentiometer can be adjusted to detect brightness threshold
BulletPoint5 : Package included: 5* 12V Photoresistor Sensor Module.
BulletPoint6 : Robust Interference Resistance: Designed with anti-interference algorithms and optimized optics, this lidar sensor remains reliable in challenging conditions. It resists ambient light, dust, and fog, ensuring accurate and stable performance in any environment.
CompatibleDevices : Any device with an SPI interface and compatible operating specifications
ConnectivityTechnology : SPI
ConnectorType : Screw
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier1 : 701715530843
ExternallyAssignedProductIdentifier2 : 0701715530843
IncludedComponents : TOFSense-F2 Mini Lidar Sensor Ranging Module

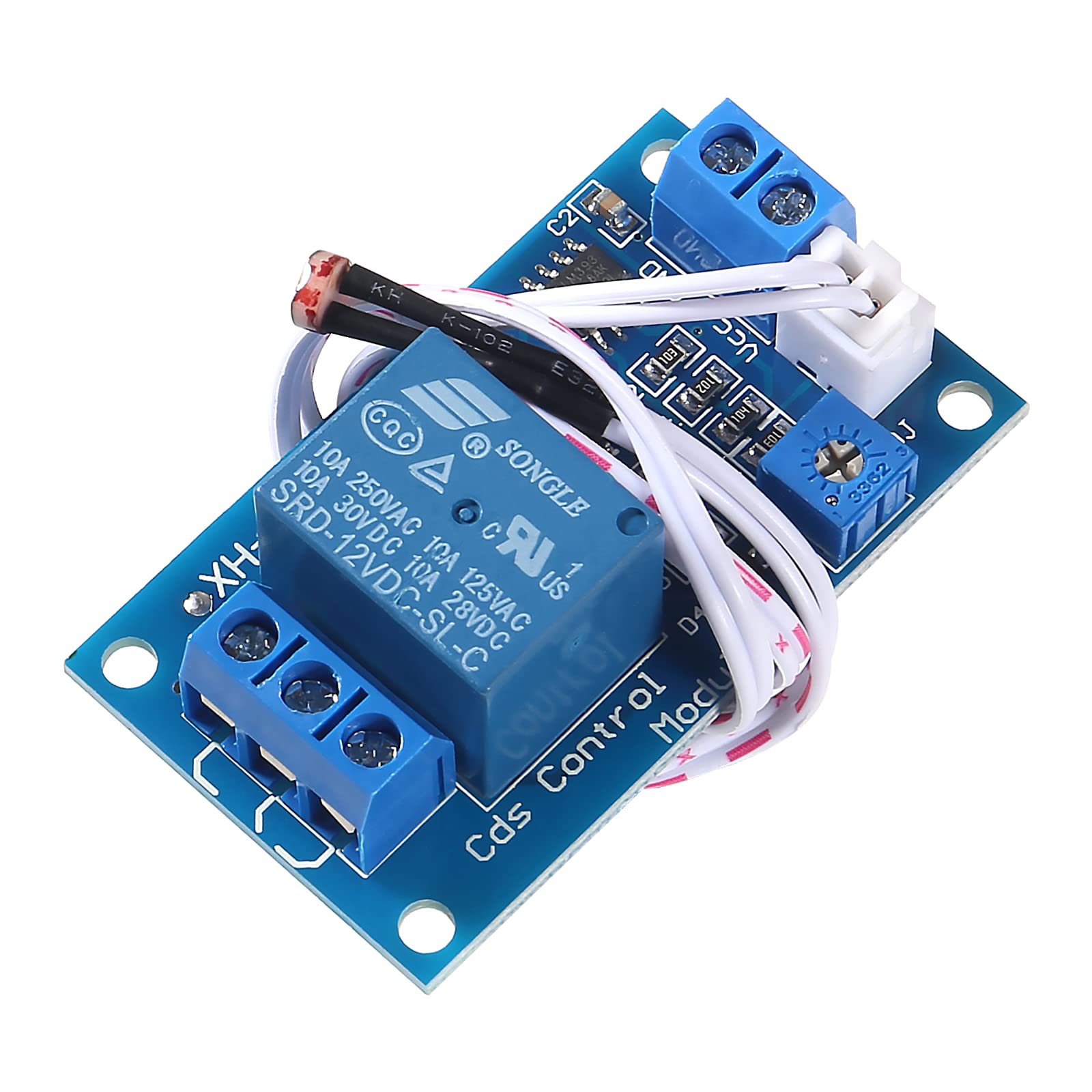

ItemName : QCCAN 5pcs XH-M131 Photoresistor Relay Module, DC 12V 10A Light Control Switch Photoresistor Relay Module Detection Sensor Brightness Automatic Control Module with Cable (12V)
ItemPackageDimensions_Height : 13.6906 centimeters
ItemPackageDimensions_Length : 2.9972 centimeters
ItemPackageDimensions_Width : 9.4996 centimeters
ItemTypeKeyword : sensor-blocks
Manufacturer : QCCAN
Material : Copper
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 250 volts
ModelName : RC522
ModelNumber : QC19095
MountingType : Screw Mount
NumberOfContacts : 1
NumberOfItems : 5
NumberOfLevels : 1
NumberOfTerminals : 3
OperatingSystem : Linux
OperatingVoltage : 12 volts_of_direct_current
OperationMode : Automatic
PartNumber : QC19095
ProcessorCount : 1
ProductDescription :

XH-M131 DC 12V Light Control Switch Photoresistor Relay Module Detection Sensor 10A brightness Automatic Control Module



Product Parameter

Product name: photosensitive relay module

Product model: XH-M131

Input voltage: DC5V

Output type: output switch

Control capacity: Max 10A

Detection frequency: 1MHz

Product size: 53*31*19mm

Load capacity: AC 0V--250V/10A, DC 0V--30V/10A

Indicator light: LED

RED LED ON: Indicate the Power ON

BLUE LED ON: Relay is working

Module output terminal has three ports

Installation: Screw fixation

Characteristic: Relay outputing separately

Light detection and brightness detection, detection can be adjusted via potentiometer brightness valve point comes relays.



Product Description

1. Connect the input terminal to 5 DC power (note that the positive and negative poles are not reversed), then the power indicator red light will be on.

2. Connect the output control terminal to a power supply with a maximum voltage of 250V and a maximum current of 10A, and connect it to the load.

3. When the light detection head detects that the light is dimmed, the switch automatically closes, the load works, and the work indicator lights up in blue; when the light is dimmed, the relay is disconnected, the load stops working, and the work indicator turns off.

4. If you feel that the light detection is not sensitive enough, you can use a screwdriver to adjust the potentiometer to achieve the detection sensitivity.



Package included:

5* 5V Photoresistor Sensor Module.

























ProductSiteLaunchDate : 2022-11-09T02:47:12.118Z
Size : TOFSense-F2 Mini
SpecificationMet : No
Style : 12V
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 46171600
Voltage : 12 volts
WarrantyDescription : NoWarningApplicable
Wattage : 120 watts
WirelessCommStandard : infrared
