Summary: In order to communicate between various standard series ports of computers, external equipments or intelligent instruments, we must convert these signal first. The converter is compatible with RS-232C and RS-485 standard. It is able to convert RS-232 signal to RS-485 balanced differential signal and extend the communication distance to 1.2KM / 3937ft. It is passive and doesn't require external power. It uses a particular pump to gain power from RS-232 signals (RTS, DTR, TXD) without initializing the RS-232 series interface. An internal transceiver and particular circuit automatically controls the data stream direction instead of handshake signals ( such as RTS, DTR, etc.) When works in RS-232 half-duplex mode, the software keeps the same function under RS-485 without any change. The transmission rate of 300-115200bps is capable of applying between host computers, host computer and its external equipments and forms point to point, point to multi-points network. It is widely used in industrial automation, door safe, all-in-one-card, car parking, ATM, bus charge, eatery sell out, staff attendance management, and highway toll gate, etc. Features: Interface: Compatible with ELA RS-232 standard and RS-485 standard Electronic interface: At the side of RS-485 is a DB9 male(pin-type)connector, with connection board Working Mode: Asynchronous, half-duplex, Differential transmission Transmission media: Twisted pair or shielded teisted pair(STP) Transmission rate: 300-115200dps Mechanical dimension: 95x33x17mm / 0.31x0.11x0.06" Working environments: -20~58,,f / -4,,?~136.4,,? Relative humidity: 5%~95% Transmission distance: 1200m / 3937ft Package weight: 65g / 0.14lb Package: 1 x RS-485 Passive Converter 1 x Manual
Features
1) Interface: Compatible with ELA RS-232 standard and RS-485 standard
2) Electronic interface: At the side of RS-485 is a DB9 male(pin-type)connector, with connection board
3) Working Mode: Asynchronous, half-duplex, Differential transmission
4) Transmission media: Twisted pair or shielded teisted pair(STP)
Specification
Binding : Electronics
Brand : UHPPOTE
EAN : 0706836719023
Label : UHPPOTE
Manufacturer : UHPPOTE
Model : UT-485C
PackageDimensions_Weight : 0.14 pounds
PackageDimensions : L:0.39 X W:0.20 X H:0.16
ProductGroup : PC Accessory
ProductTypeName : CABLE_OR_ADAPTER
Publisher : UHPPOTE
Studio : UHPPOTE

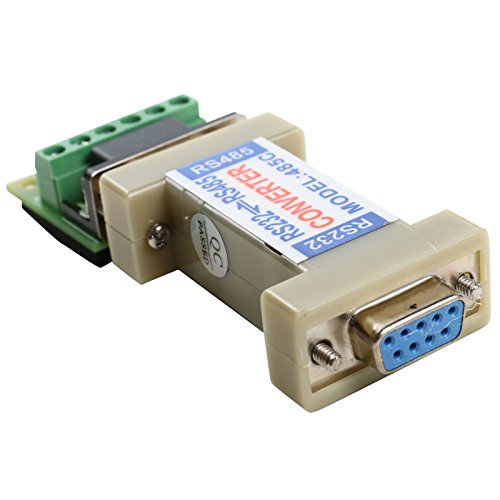

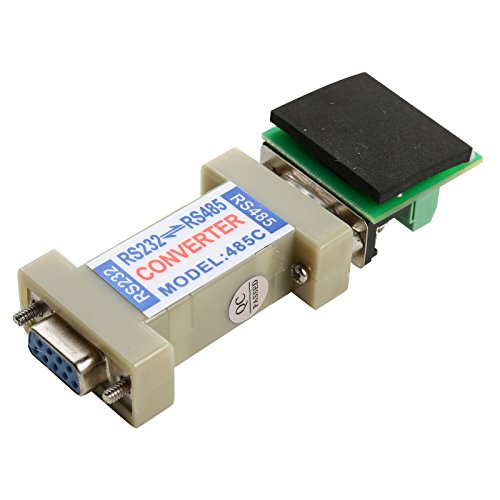

Title : UHPPOTE RS232 to RS485 Interface Communication Data Signal Passive Converter Adapter
