Specification
Brand : UOTEK
BulletPoint1 : Automatic data direction control, real TXD/RXD/GND communication
BulletPoint2 : The Range of Baud rate: 300bps-115.2Kbps,transmission Distance: 5,000m（9,600bps）
BulletPoint3 : Protection level: RS-232 interface +/-15KV ESD protection, RS-422, RS-485 interface surge protection of 600W per line
BulletPoint4 : Working Mode: asynchronous half-duplex (RS485) or full-duplex (RS422)
BulletPoint5 : Works with all communication software, plug & play
CompatibleDevices : RS485 Device, RS422 Device
ConnectorType : RS
ExternallyAssignedProductIdentifier1 : 702562250755
ExternallyAssignedProductIdentifier2 : 0702562250755
FinishType : Abs
InputVoltage : 2500 volts

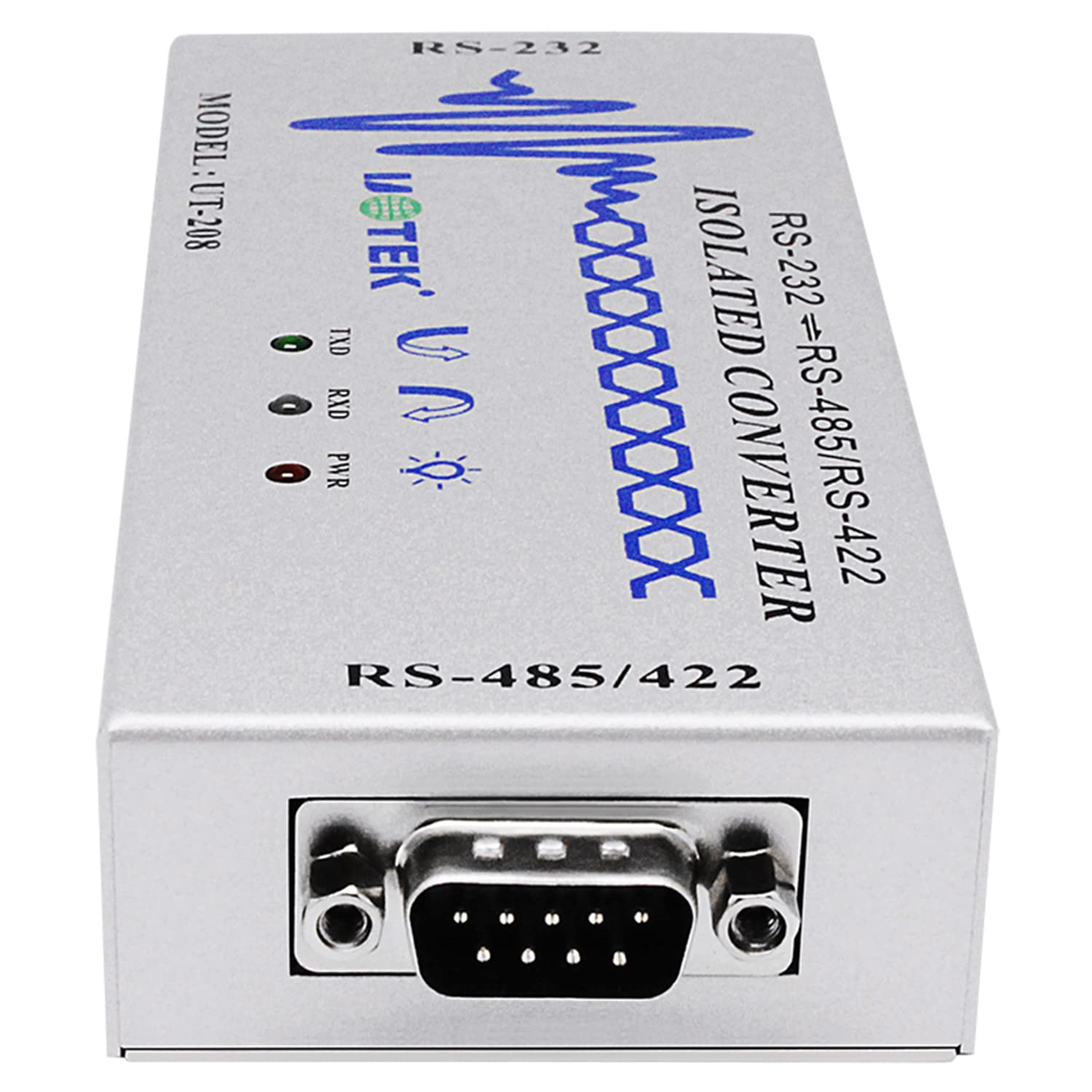

ItemName : UOTEK RS232 to RS485 RS422 Isolated Converter RS-232 to RS-485 RS-422 Built-in Optical Isolation Adapter Support All Operating System UT-208
ItemPackageDimensions_Height : 2.75 inches
ItemPackageDimensions_Length : 11.41 inches
ItemPackageDimensions_Width : 6.69 inches
ItemPackageQuantity : 1
ItemTypeKeyword : computer-cable-serial-adapters
Manufacturer : UTEK TECHNOLOGY (SHENZHEN) CO., LTD
MinimumFrequency : 50 hertz
ModelNumber : UT-208
NumberOfPorts : 2
PartNumber : UT-208
PowerPlugType : no_plug
ProductDescription :
Overview
●UT-208 is a converter with optoelectronic isolation. It complies with RS232C, RS485 and RS422 standards.
●UT-208 optoelectronic isolated converter provides connection for point to point, point to multipoint communication
●Capable of providing isolation voltages up to 2500Vrms with fast transient voltage suppression protector
●For point to multipoint mode, each converter is allowed to connect 128 sets RS485 or RS422 devices with baudrate 300bps-115.2Kbps
●The power and data flow indicators indicate the working status

Specifications
●Standards: RS232, RS485, RS422 TIA/EIA
●Allows connecting 128 sets RS485 or RS422 device
●Power & data flow indicator, failure detection
●2.5KVrms/500V DC enhanced isolation, special DC/DC module, RS485/422 provides with 600W lighting & surge protection each line
●Connector: DB9 female to DB9 male connector
●Transmission Media: Twisted-pair or shielded cable
●Dimension: 113mm×55mm×25mm
●Operating Temperature: -40°C to 85°C
●Relative Humidity: 5% to 95%
●Supports all operating system

Original Packing Included
●1x UT-208 RS232 to RS485 RS422 Converter
●1x Power cord
●1x Power supply
●1x User Manual
ProductSiteLaunchDate : 2018-01-08T08:00:00.000Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 43200000
