Specification
AgeRangeDescription : Adult
AssemblyTime : 2 minutes
Brand : HTNAFONI
BulletPoint : Alternators
BulletPoint1 : Alternators
BulletPoint2 : 【See the second picture of the variant for detailed parameters】
BulletPoint3 : 【See the second picture of the variant for detailed parameters】
BulletPoint4 : [PWM Control System]--Controlled by pulse width modulation system. Pulse range is 500µs-2500µs. Control angle is 180 degree when pulse width 500µs-2500µs. So please make sure your controller pulse width can reach 2500µs.
BulletPoint5 : [ Package Included]--2 X DS3240MG 40KG Large Torque Digital Servo 180 Degree ; 2 X 25T Adjustable Metal Servo Arm ; 2 X Accessories Bag.
BulletPoint6 : What you will get: 1 x servo +1 x 25T metal horn
Color : 4PCS
CpsiaCautionaryStatement : no_warning_applicable
EducationalObjective : Creativity
ExternallyAssignedProductIdentifier : 7375606563529
FitType : Universal
IncludedComponents : 25T Metal Servo Arm with Accessories Bag
IsAssemblyRequired : 1

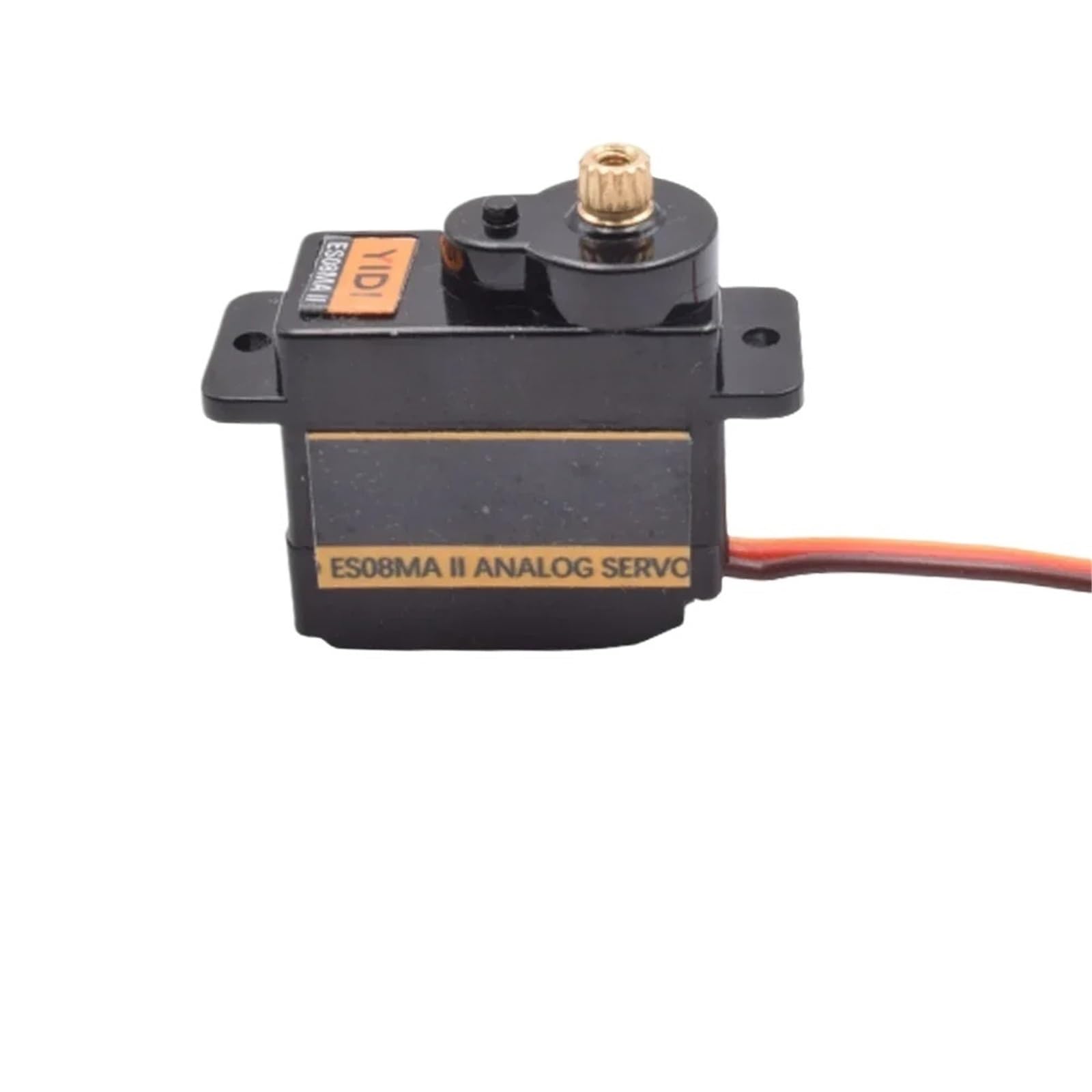

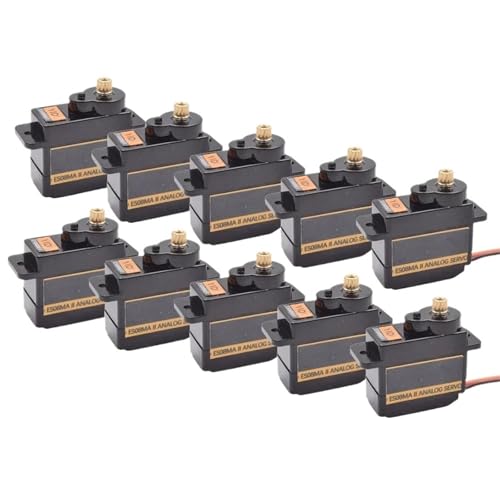

ItemName : 2/4pcs ES08MA II ES08MAII Metal Gear Servomotor Analog RC Servo Motor(Plastic Gear,4PCS)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-servo-gears
Manufacturer : HTNAFONI
ManufacturerMinimumAge : 216
Material : Metal
ModelName : HTNAFONI
ModelNumber : HTNAFONI
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPlayers : 1
OperationMode : Pulse Width Modulation
PartNumber : HTNAFONI
PowerSourceType : electric
ProductDescription : Alternators
Specification:
Type: ES08MA II
Rotate Angle: 0-180º
Size: 23 x 11.5 x 24mm
Gear Material: Plastic/Metal
Operating Voltage: 4.8V-6.0V
Operating Current: 200mA/60º
Operating Speed: 0.12sec/60º (4.8V); 0.10sec/60º (6V)
Stall Torque: 1.6kg/cm (4.8V); 2.0kg/cm (6V)
Dead Band: 1-2usec
Operating Mode: Analog
Connector Wire Length: 25cm(Brown: Negative; Red: Positive; Orange: Pulse Input)
Accessories: Multi-arm, Fixing screws(AS the picture shows)
Connector Type: Futaba/JR compatible
Scope: Small and medium-sized electric model aircraft and model
Steering Gear Control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.
The corresponding control relationship is as follows:
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees;
2.0ms--------------135 degrees;
2.5ms--------------180 degrees
Please use a professional PWM Servo Controller to control the angle
Packing: 2 x Servo Motor or 4 x Servo Motor for option(with Accessories)
Torque : 1.6kg/cm
Model Number : ES08MA II
Continuous Current(A) : 200mA/60 degrees
Type : Servo Motor
Protect Feature : Totally Enclosed
Gear Material : Plastic/Metal
Operating Voltage : 4.8V-6.0V
Rotate Angle : 0-180°
ProductSiteLaunchDate : 2024-11-09T04:44:01.699Z
SafetyWarning : No
Size : Plastic Gear
Style : 40KG*2Pcs -180° Angle
SubjectCharacter : for 1/8 1/10 Scale RC Crawler Car
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : Unisex Adult
TargetAudienceKeyword1 : boys
TargetAudienceKeyword2 : boys
TargetGender : male
Theme : Hobby
UnitCount : 1
UnspscCode : 26111500
Voltage : 110 volts
Wattage : 500 watts
