Specification
AgeRangeDescription : Kid
AssemblyTime : 10
BatteriesRequired : 1
Brand : ANNIMOS
BulletPoint : Spektrum A450 Sub-Micro Digital 13g Metal Gear Aircraft Servo, SPMSA450
BulletPoint1 : Waterproof IP67 / Digital / Brushless
BulletPoint2 : Dimension：40*20*37.5mm (1.57*0.79*1.48in), Suitable For 1/8 1/10 RC Car Truck Buggy Airplane
BulletPoint3 : Item Package Quantity:1
BulletPoint4 : Country Of Origin: Taiwan, Province Of China
Color : Black
CpsiaCautionaryStatement : no_warning_applicable
CustomerPackageType : FFP
EducationalObjective : 1
ExternallyAssignedProductIdentifier1 : 605482293300
ExternallyAssignedProductIdentifier2 : 0605482293300
GpsrSafetyAttestation : 1
IncludedComponents : A450 Sub-Micro Digital 13g Metal Gear Aircraft Servo
IncludedComponents1 : 1 x BLS3245 45kg Servo （270° ）
IncludedComponents2 : 1 x 25T Adjustable Aluminum Horn
IncludedComponents3 : 1 x Accessories Set (As Shown on The Picture)
IsAssemblyRequired : 1
ItemDisplayDimensions_Height : 0.5 inches
ItemDisplayDimensions_Length : 3.75 inches
ItemDisplayDimensions_Width : 3 inches
ItemName : ANNIMOS 45KG Brushless RC Servo Steering Motor Digital Full Metal Gear Waterproof
ItemPackageDimensions_Height : 9 centimeters
ItemPackageDimensions_Length : 2 centimeters
ItemPackageDimensions_Width : 6.7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-servo-gears
Manufacturer : ANNIMOS
ManufacturerMaximumAge : 1188
ManufacturerMinimumAge : 18
Material : Plastic
Material1 : Metal
Material2 : Aluminum
Material3 : Steel
ModelName : DSBL3245270
ModelNumber : BLS3245A
ModelYear : 2090
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumIonCells : 1
OperationMode : Automatic
PackageLevel : unit
PartNumber : BLS3245A
PowerSourceType : Battery Powered
ProductDescription : Product Specification:
Suitable for: for 1/8 1/10 1/12 Scale RC Cars, Trucks
★Motor Type: Brushless Motor
Gear Type: Stainless Steel
Spline:25 Tooth
Gear ratio: 361
Bearing：Double Bearing
★Waterproof Performance：IP67
CE /RoHs: Yes
Connector Wire: 17.7in (450mm)

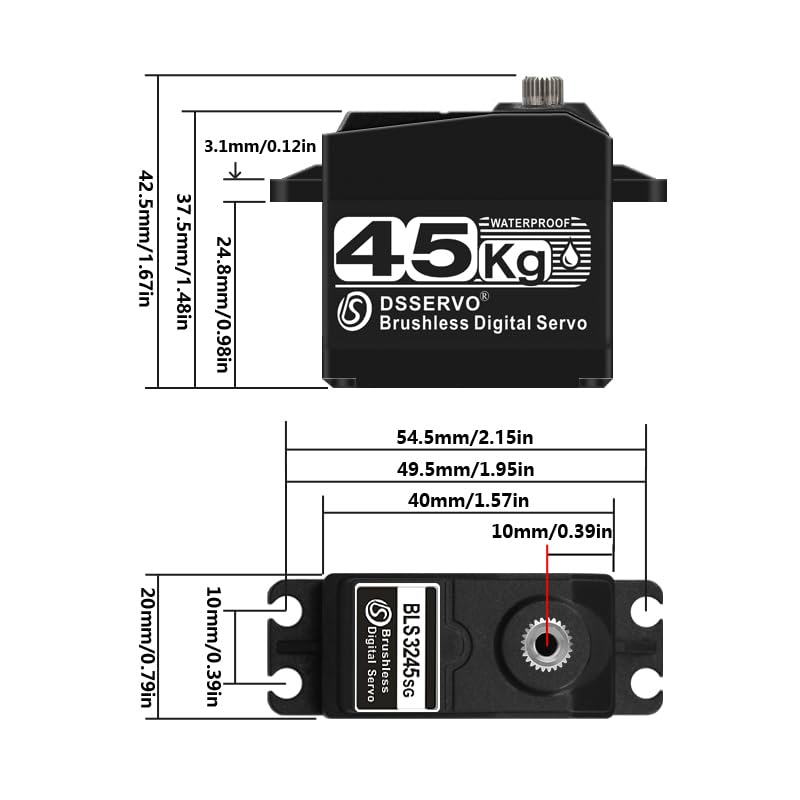

Size: 1.57*0.79*1.48inch（40 * 20 * 37.5mm）
Weight: 2.12oz (60g)

Electrical Specification：
Operating voltage range: 5-8.4 Volts
Operating speed at no load ( 4.8V ): 0.15 sec/60°
Operating speed at no load ( 6V ): 0.13 sec/60°
Operating speed at no load ( 7.4V ): 0.11 sec/60°
★Operating speed at no load ( 8.4V ): 0.1 sec/60°
Stall torque at locked ( 4.8V ): 31kg.cm(430oz-in)
Stall torque at locked ( 6V ): 36kg.cm(499.9oz-in)
Stall torque at locked (7.4V ): 43kg.cm(597oz-in)
★Stall torque at locked (8.4V ): 49kg.cm(680oz-in)
Stall current at locked ( 4.8V ): 3.2A
Stall current at locked ( 6V ): 4A
Stall current at locked ( 7.4V ): 5.2A
★Stall current at locked ( 8.4V ): 6.2A
Idle current at stopped (4.8/6/7.4/8.4V): 5mA

Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500μsec
Neutral position: 1500μsec
Running degree: 270° (when 500-2500μsec)
Dead band width: 2μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (When 1500-2500μsec)

Apply Environmental Condition:
Storage Temperature Range:-30°C~80°C
Operating Temperature Range:-25°C~70°C

Packing List:
1 x BLS3245 45kg Servo （270° ）
1 x 25T Adjustable Aluminum Horn
1 x Accessories Set (As Shown on The Picture)
ProductSiteLaunchDate : 2024-09-20T07:01:40.620Z
SafetyWarning : For external use only
Size : 45KG (270°)
StreetDate : 2019-02-28T00:00:01Z
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : unisex-children
TargetGender : unisex
Theme : hobby
ToyVehicleForm : Airplane
UnitCount : 1
UnspscCode : 60141000
