Specification
Brand : BETU
BulletPoint1 : 【High Torque 55kg Servo】Super Large Torque， 0.13sec/60°,43kg-cm@6.0V. 0.1sec/60°,52kg-cm@6.0V，0.08sec/60°,58kg-cm@8.4V. 0.07sec/60°,35kg-cm@8.4V. Very strong, excellent range of motion, and includes a 25T metal horn.

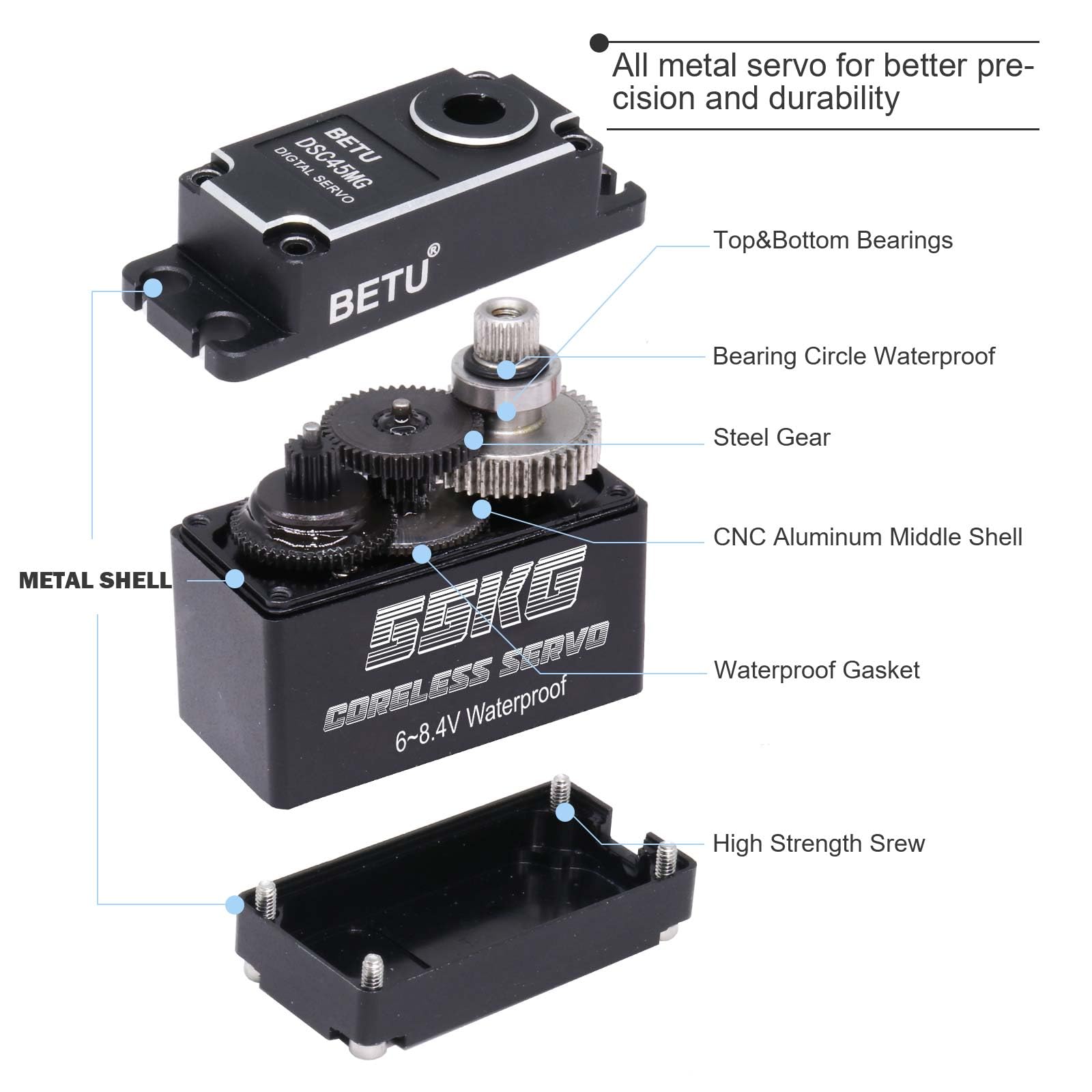

BulletPoint2 : 【Metal Gear Coreless Servo】Equipped with strong copper & Stainless Steel Gears, CNC aluminium Shell, Less Noise, light weight.
BulletPoint3 : 【Waterproof Servo】Waterproof performance: IP67 (Please watch the waterproof test video). Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control.
BulletPoint4 : 【Widely Use Digital Servo】The steering servo (Control Angle 180°) Compatible with 1/5,1/8, 1/10, 1/12 Truck, RC Car / Robot / Boat and other remote control models.
BulletPoint5 : 【High Speed Servo Standard Size】1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (79g)
ExternallyAssignedProductIdentifier1 : 0762708960757
ExternallyAssignedProductIdentifier2 : 762708960757
IncludedComponents : 55KG Servo
ItemName : BETU 55Kg Coreless Servo Motor HV 8.4V, High Torque RC Digital Servo，Full Waterproof Servo, Stainless Steel Gear Servo with 25T Servo Horn（180°）
ItemPackageDimensions_Height : 1.8 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : hobby-rc-vehicle-servos
Manufacturer : BETU
ModelName : BETU55KGServo
ModelNumber : BETU55KGServo
NumberOfItems : 1
PartNumber : BETU55KGServo
ProductDescription :

Specifications:

Products Name: 55Kg Digital servo

-Waterproof performance: IP67

-BETU 55Kg Coreless Servo Motor

-High Torque RC Digital Servo

-Full Waterproof Servo

-Stainless Steel Gear

Mechanical Specification

Dimensions: 40×20×40mm

Weight: 75g

Diver type: Mos Drive

Motor Type: Coreless Motor

Potentiometer Type: Direct Drive

Amplifier Type: Digital Control

Gear Material: Metal Gear

Case Material: Aluminum Case

Ball Bearing: 2BB

Connector Wire Length: 300MM JM Plug

Connector Wire Gauge: 22AWG

Electrical Specification

Operat voltage: 6V~8.4V

Control mode: PWM

Control frequency: 50Hz

Standing Torque: 0.13sec/60°,43kg-cm@6.0V. 0.1sec/60°,52kg-cm@6.0V

0.08sec/60°,58kg-cm@8.4V

Idle Current: 300mA@6.0V, 320mA@6.0V, 410mA@8.4V, 350mA@8.4V

Running Current: 4500mA@6.0V, 5000mA@6.0V, 55000mA@8.4V

Control Specification

Dead band width: 2μsec

Control System: PWM Control (1500μsec in the central point)

Operation Voltage Range: 6.0～8.4V

Operation Temperature Range: -20℃～60℃

Circle: ＞60000 times without load

Operation Travel: 60°±1

Limit angle: 180°±1

Direction: Re-clock wise/Pulse Travel 500→2500μsec

Package Included:

Package:

1 x 55kg Coreless Servo

1 x 25T Adjustable metal servo arm

One set of accessories
