Specification
AgeRangeDescription : 14+ year
AssemblyTime : 5 hours
BatteriesRequired : 1
Brand : DIYmall
BulletPoint1 : Note: 360 degrees is a continuous rotation, and the angle and speed cannot be controlled
BulletPoint2 : Operat voltage: 4.8V~8.4V
BulletPoint3 : No load speed: 0.32sec/60°(4.8V); 0.22sec/60°(8.4V), Peak stall torque: 32.7kg.cm(4.8V); 35.2kg.cm(8.4V)
BulletPoint4 : Command signal: Pulse width modification; Pulse width range: 500～2500usec; Running degree: 360°±3°(when 500～2500usec)
BulletPoint5 : What you will get: 2 Sets TD-8135MG 35KG 360 Degree Continuous Rotation Servo
Color : Red
CountryAsLabeled : CN
CpsiaCautionaryStatement : no_warning_applicable
Edition : Full Metal Shell 35kg-270°
EducationalObjective : Color Recognition
ExternallyAssignedProductIdentifier1 : 0768470326241
ExternallyAssignedProductIdentifier2 : 768470326241
ExternallyAssignedProductIdentifier3 : 00605482601990
GpsrSafetyAttestation : 1
IncludedComponents : 2 Sets TD-8135MG 35KG 360 Degree Continuous Rotation Servo
IncludedComponents1 : 2 * 12G Micro Digital Servo
IncludedComponents2 : 2 * Servo Accessories
IncludedComponents3 : 1 x Accessories Set (As Shown on The Picture)
IndoorOutdoorUsage : outdoor
ItemName : DIYmall 2 Sets TD-8135MG 35KG 360 Degree Servo Full Metal Gear High Voltage Continuous Rotation Digital Servo for RC Car Robotic Airplane
ItemPackageDimensions_Height : 15.9 centimeters
ItemPackageDimensions_Length : 2.7 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-servos
Manufacturer : DIYmall
ManufacturerMinimumAge : 216
Material : Plastic and metal
ModelName : TD-8135MG 35KG
ModelNumber : SPMSH2027L
NumberOfBoxes : 1
NumberOfItems : 2
OperationMode : Automatic
PackageLevel : unit
PartNumber : FZ4477-360X2
PowerSourceType : Battery Powered
ProductDescription : DIYmall 2 Sets TD-8135MG 35KG 360 Degree Servo High Voltage
Continuous Rotation Digital Servo for RC Car Robotic Airplane

Note:
360 degrees is a continuous rotation, and the angle and speed cannot be controlled.

Specifcation:
Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C
Temperature Range: -25°C～70°C
Humidity Range: 65%±10%
Size: 40.0*20.5*40.5mm
Weight: 84g±5%
Gear type: 5 Metal
Limit angle: 360°
Bearing: 2BB
Horn gear spline: 25T; D:6.0mm H4.0mm
Horn type: Plastic, POM
> Case: Engineering plastics(PBT)+Aluminum alloy
Connector wire: 320mm±5mm
Motor: Carbon brush motor
Splash water resistance: yes

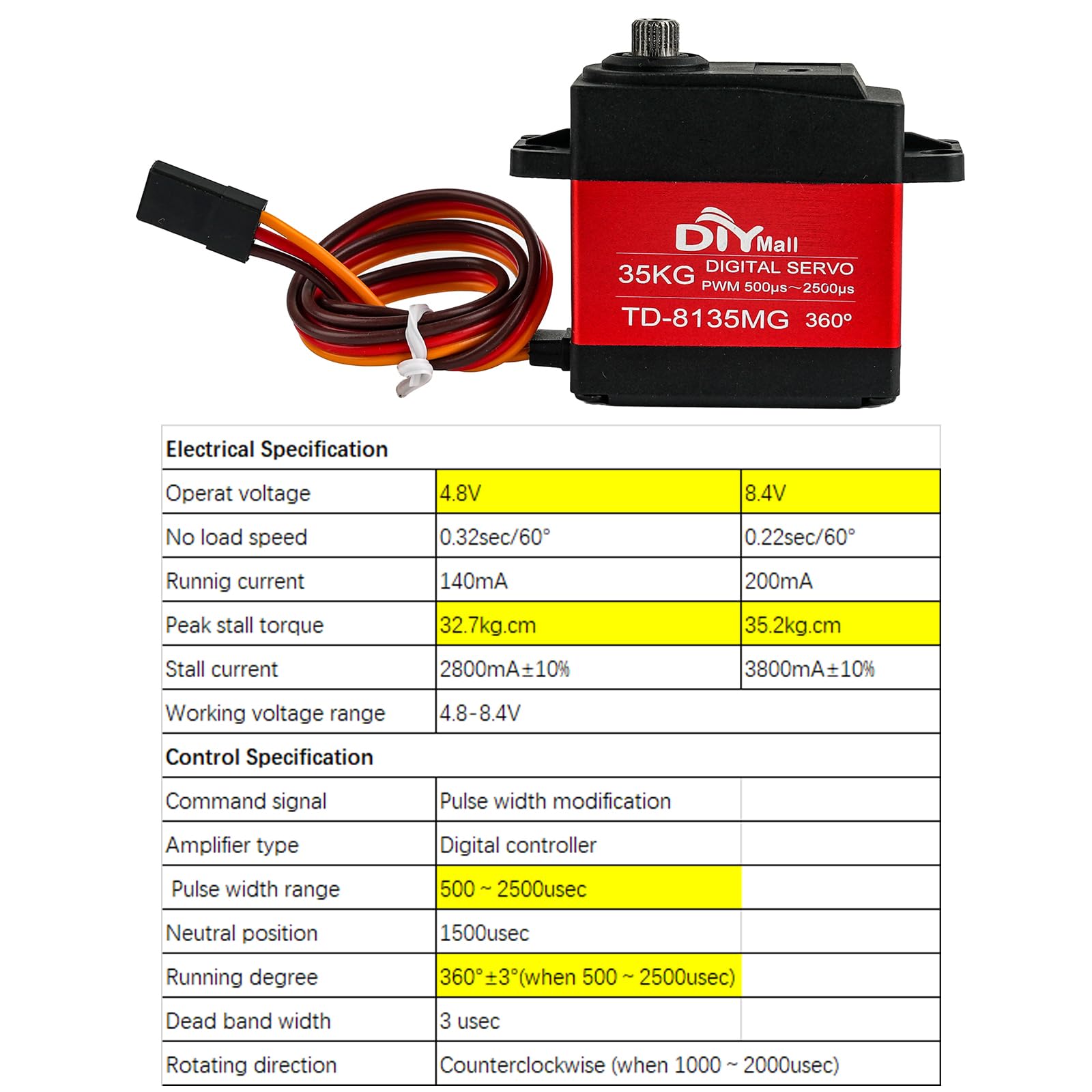

Operat voltage: 4.8V~8.4V
No load speed: 0.32sec/60°(4.8V); 0.22sec/60°(8.4V)
Runnig current: 140mA(4.8V); 200mA(8.4V)
Peak stall torque: 32.7kg.cm(4.8V); 35.2kg.cm(8.4V)
Stall current: 2800mA±10%(4.8V); 3800mA±10%(8.4V)
Working voltage range: 4.8-8.4V
Command signal: Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec
Running degree: 360°±3°(when 500～2500usec)
Dead band width: 3 usec
Rotating direction: Counterclockwise (when 1000～2000usec)

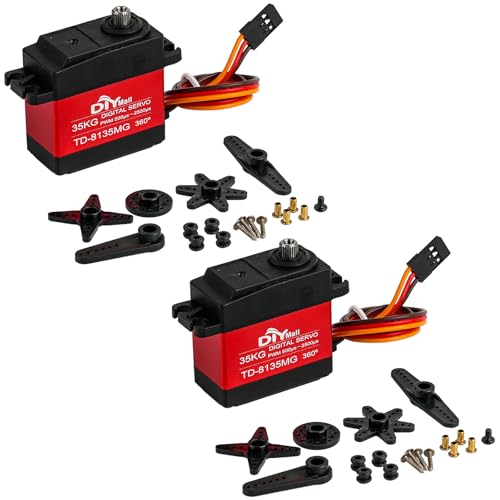

Package Includes:
2 X 35KG 360 Degree Continuous Rotation Servo
ProductSiteLaunchDate : 2024-08-02T06:04:01.875Z
SafetyWarning : /
Size : Small
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : Unisex Adult
TargetAudienceKeyword1 : Men
TargetAudienceKeyword2 : Unisex Adults
TargetAudienceKeyword3 : Boys
TargetGender : unisex
Theme : Vehicle
UnspscCode : 60141000
