Specification
AgeRangeDescription : Adults
BatteriesRequired : 1
Brand : FXDLSERVO
BulletPoint1 : High quality servo material.It is composed of PC plastic shell, POM gear, iron core shaft, light weight and small size.Compatible with JR, the cable is made of PVC material, the length of the wire is 25cm.
BulletPoint2 : High performance digital standard servo.Low noise and smooth operation servo.The working voltage is 4.8V-6V. the servo rotation angle is 360 degrees (at 1200→1800μsec), and the dead zone width is ≤90 μsec, compatible with Arduino and Raspberry Pi.
BulletPoint3 : Wide application for personal need.Used for fixed-wing, helicopter, KT, glider, small robot, robotic arm and other models.
BulletPoint4 : Durable and funny.Small size and light weight.Stall Torque (at locked): (4.8V) 18.09oz/in(1.3kg/cm), (6V) 20.86oz/in(1.5kg/cm)
BulletPoint5 : Come with 5pcs black plastic wheel which are press-fit onto the FS90R output gear shaft, and easy to make a nice drive solution for small robots.The wheels have silicone tires and measure 55 mm (2.2″) in diameter.
Color : Blue
CpsiaCautionaryStatement : no_warning_applicable
EducationalObjective : Programming
IncludedComponents : 5 servos and 5 wheels

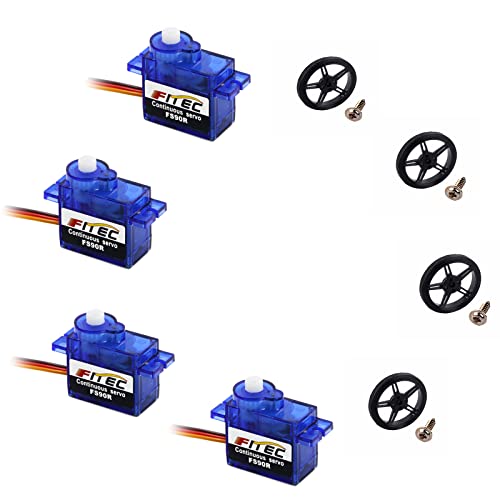

ItemName : FEETECH 4Packs 90R 9g Servo with Wheels Digital Servo Motors 360 Degree Continuous Servos
ItemPackageDimensions_Height : 13.9 centimeters
ItemPackageDimensions_Length : 4.3 centimeters
ItemPackageDimensions_Width : 12.9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-servos
Manufacturer : FEETECH
ManufacturerMinimumAge : 8
Material : Plastic
MinimumOperatingVoltage : 4.8 volts_of_direct_current
ModelName : FXDL--90RZ-C003
ModelNumber : FXDL-90RZ-C003
NumberOfBoxes : 10
NumberOfItems : 10
NumberOfPlayers : 1
OperationMode : Pulse Width Modification
PartNumber : FXDL-90RZ-C003
PowerSourceType : electric
ProductDescription :

Electrical Specification

No-load current: 150mA(4.8V), 180mA(6V)/ No Load Speed: 120RPM(4.8V), 150RPM(6V)

Stall Torque (at locked): (4.8V) 18.09oz/in(1.3kg/cm), (6V) 20.86oz/in(1.5kg/cm)

Stall Current: 600mA(4.8V), 800mA(6V)/ Rated Torgue: 0.4kg/cm(4.8V), 0.5kg/cm(6V)

Rated Current: 200mA(4.8V), 250mA(6V)

Kt constant: 1.8kg.cm/A

Mechanical Specification

Equipped with PC plastic shell, POM gear, iron core, 360-degree high-speed operation

JR connector, PVC material, length: 25cm

Weight: 10±1g,

Horn Type: 21T/4.86mm

Core motor

Control Specification

Command Signal: Pulse width modification/ Control System Type: Analog compactor

Operating Travel: 360°Continuous rotation(at 1200→1800μsec)

Neutral Position: 1500 μsec/ Dead Band Width: ≤90 μsec

Rotating Direction: Counterclockwise (at 1500→1800 μsec)

Pulse Width Range: 1200→1800 μsec

ProductSiteLaunchDate : 2022-09-01T08:31:28.218Z
Size : 64*55.6*20mm
Style : C-360°-90R+wheels
SubjectCharacter : for 1/5 rc crawler,buggy, truggy, climbing cars and other heavy-duty robotic applications.
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : unisex-children
TargetGender : unisex
Theme : Hobby
UnspscCode : 26111500
