Product Information
Editorial Review

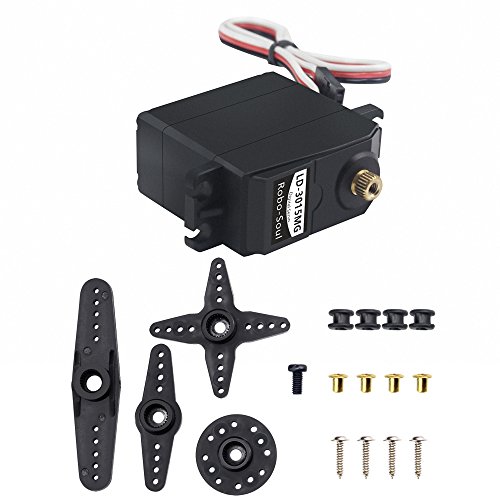

Specifications: Weight: 60g(2.1OZ) Dimension: 40*20*40.5mm(1.57*0.78*1.59inch) Speed: 0.16sec/60°(7.4V) Accuracy: 0.3° Torqueï¼s15 kg/cm (208 oz/in) 6.6V;17 kg/cm (236 oz/in) 7.4V Working Voltage: 6-7.4V Min Working Current: 1A No-Load Current: 100mA The servo wire: 30cm(11.8inch) in length Package Contents: 1 x Digital servo 1 x 30cm servo wire 1 x Servo horn kit(as shown in the figure) If you have any questions, please feel free to contact us at support@lewansoul Note: Note: Please be sure to avoid locked-rotor when using servo, locked-rotor means that artificially or machine obstructs the servo to rotate normally, the locked-rotor will lead to internal current increased to more than 7 times and the temperature increases, servo will burn out. Direction for use: PWM adjust the angle, the cycle is 20ms, Pulse width level with duty ratio 0.5ms~2.5ms is consistent with the angle range(0 degree~270 degree) of servo, which is in linear relationship. Generally speaking, our servo controller using the range of 500~2500 is consistent with the duty ratio 0.5ms~2.5ms of the output angle controlled by servo. In this way, the control precision of ours servos can reach 3us, the control precision can reach 0.3 degree among the range of 2000 Pulse-Width.
Features
1) 17kg large torque. 15 kg/cm (208 oz/in) 6. 6v; 17 kg/cm (236 oz/in) 7. 4v.

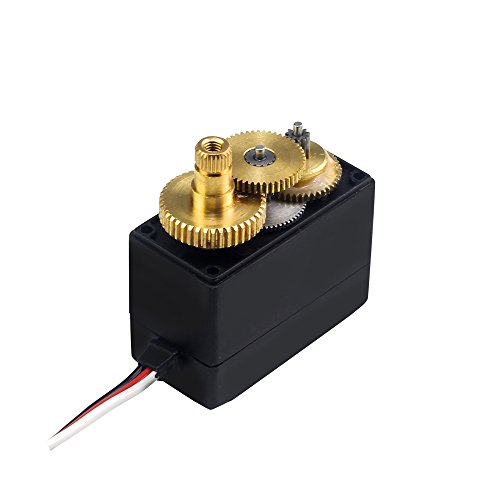

2) Full metal gear. It's better for accuracy, service life has been greatly increased.
3) 270 degree rotation. Controllable angle range from 0 to 270 degrees, excellent linearity, precision control. Can be rotated within 360 degrees when power off.
4) Using high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots.
5) Dimension: 40*20*40. 5mm(1. 57*0. 78*1. 59inch).
Specification
Binding : Toy
Brand : LewanSoul
Color : Black
EAN : 0651519699232
Genre : Creative
Label : LewanSoul
Manufacturer : LewanSoul
PackageDimensions : L:5.51 X W:3.54 X H:1.57
ProductGroup : Toy
ProductTypeName : TOYS_AND_GAMES
Publisher : LewanSoul
Studio : LewanSoul
Title : LewanSoul LD-3015MG Standard Full Metal Gear Digital Servo with 17kg High Torque Dual Ball Bearing for RC Robot Car(Control Angle 270)
Specifications: Weight: 60g(2.1OZ) Dimension: 40*20*40.5mm(1.57*0.78*1.59inch) Speed: 0.16sec/60°(7.4V) Accuracy: 0.3° Torqueï¼s15 kg/cm (208 oz/in) 6.6V;17 kg/cm (236 oz/in) 7.4V Working Voltage: 6-7.4V Min Working Current: 1A No-Load Current: 100mA The servo wire: 30cm(11.8inch) in length Package Contents: 1 x Digital servo 1 x 30cm servo wire 1 x Servo horn kit(as shown in the figure) If you have any questions, please feel free to contact us at support@lewansoul Note: Note: Please be sure to avoid locked-rotor when using servo, locked-rotor means that artificially or machine obstructs the servo to rotate normally, the locked-rotor will lead to internal current increased to more than 7 times and the temperature increases, servo will burn out. Direction for use: PWM adjust the angle, the cycle is 20ms, Pulse width level with duty ratio 0.5ms~2.5ms is consistent with the angle range(0 degree~270 degree) of servo, which is in linear relationship. Generally speaking, our servo controller using the range of 500~2500 is consistent with the duty ratio 0.5ms~2.5ms of the output angle controlled by servo. In this way, the control precision of ours servos can reach 3us, the control precision can reach 0.3 degree among the range of 2000 Pulse-Width.
Features
1) 17kg large torque. 15 kg/cm (208 oz/in) 6. 6v; 17 kg/cm (236 oz/in) 7. 4v.
2) Full metal gear. It's better for accuracy, service life has been greatly increased.
3) 270 degree rotation. Controllable angle range from 0 to 270 degrees, excellent linearity, precision control. Can be rotated within 360 degrees when power off.
4) Using high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots.
5) Dimension: 40*20*40. 5mm(1. 57*0. 78*1. 59inch).
Specification
Binding : Toy
Brand : LewanSoul
Color : Black
EAN : 0651519699232
Genre : Creative
Label : LewanSoul
Manufacturer : LewanSoul
PackageDimensions : L:5.51 X W:3.54 X H:1.57
ProductGroup : Toy
ProductTypeName : TOYS_AND_GAMES
Publisher : LewanSoul
Studio : LewanSoul
Title : LewanSoul LD-3015MG Standard Full Metal Gear Digital Servo with 17kg High Torque Dual Ball Bearing for RC Robot Car(Control Angle 270)
