Specification
AgeRangeDescription : 14 Years And Up
AssemblyTime : 2 minutes
Brand : Treedix
BulletPoint1 : Using high-precision potentiometer, can control the steering gear in real time. High resolution PWM signal, onboard 8-bit single chip microcomputer, so that the control accuracy is higher
BulletPoint2 : Two display modes: Real-time voltage display mode: can monitor the voltage of the power supply equipment in real time. Steering gear position percentage display mode: The position of steering gear can be displayed in real time (0-99%). Press and hold the key to switch the display mode.
BulletPoint3 : Three control modes: manual steering gear controller，steering gear reset back to center, automatic steering gear controller, by pressing the button to switch control mode
BulletPoint4 : Overcurrent protection: on-board 2-channel pulse width modulation digital steering gear interface, which can be controlled by high-precision potentiometer
BulletPoint5 : Widely application：it can be used in robotic arm tester, robot test，mechanical claws test and other project. A must-have tool for RC enthusiasts and engineers.
Color : Black
CpsiaCautionaryStatement : no_warning_applicable
EducationalObjective : Robotics
ExternallyAssignedProductIdentifier1 : 0644197778054
ExternallyAssignedProductIdentifier2 : 644197778054
IncludedComponents : PCB board
IndoorOutdoorUsage : outdoor
IsAssemblyRequired : 1
ItemName : Treedix 2pcs Digital RC Servo Tester with Over-Current Protection 3 Control Modes 2 Display Modes DC5V-8V for RC Car Airplane Robots Mechanical Claws Tester Tool Essential Servo Motor Testing Tool
ItemPackageDimensions_Height : 1 inches
ItemPackageDimensions_Length : 5.11 inches
ItemPackageDimensions_Width : 3.54 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-servos
Manufacturer : Treedix
ManufacturerMinimumAge : 10
Material : FR-4
ModelName : TRX5-0813
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPlayers : 1
OperationMode : Digital
PartNumber : TRX5-0813
PowerSourceType : Electric
ProductDescription :
Specification:
Two power ports: Power conversion port and Type-C port
Size: 40.4*39.4mm (1.59in*1.55in)
Input voltage: DC5-8V (Note: the server should choose the correct power supply)

How to use:
1. Supply power to the controller, the voltage can be DC5-8.4V， the specific voltage needs to refer to the actual use of the rated voltage of the servo motor to determine
2. Insert the servo motor into the 3-pin servo port
3. The default potentiometer control mode is used to start the machine. When turning the knob, the servo motor will rotate synchronously.

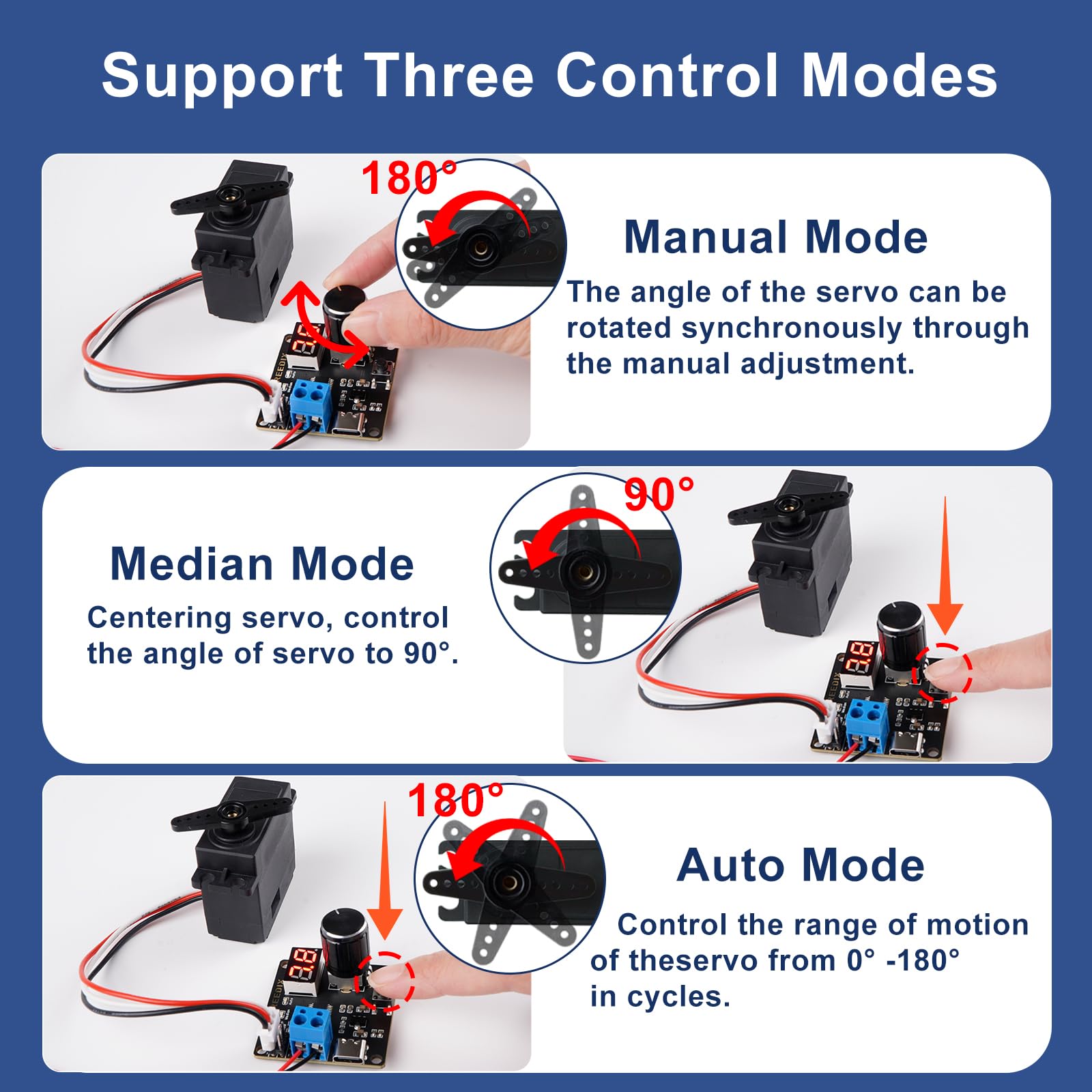

4. Short press the button to switch the control mode, respectively, corresponding to the following situations: Manual Mode: Control by knob
"Median Mode" : Return to the center
"Auto Mode" : Swing back and forth within the range of motion
5. Long press the button to switch the display mode
"Voltage Display mode": Displays the real-time power supply device voltage
"Position Display Mode" : Displays real-time steering gear position (range percentage 0%-99%)

Note:
Actuator position percentage display mode (0-99% corresponding to 0-180° or 0-270°)
180° steering gear: 50% represents 90°
270°steering gear: 50% represents 135°

Packages Includes:
2pcs* Motor Servo Controller

ProductSiteLaunchDate : 2024-12-24T09:59:43.261Z
SafetyWarning : Input voltage: 5-8.4V ，choose the right power supply
Size : 11kg
Style : 180 Degree
SubjectCharacter : Robot
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : Unisex Adult
TargetAudienceKeyword1 : Boys
TargetAudienceKeyword2 : Men
TargetGender : unisex
Theme : Rc Vehicles
UnspscCode : 60141000
