Specification
Brand : Wishiot
BulletPoint1 : HIGH ACCURACY AND TORQUE - Advanced linearity and accuracy, stable, low noise, waterproof and dustproof. The steering servo can reach a maximum torque of 61 kg-cm (847 oz-in) (8.4 V) and speeds up to 0.09 sec/60° (8.4 V)

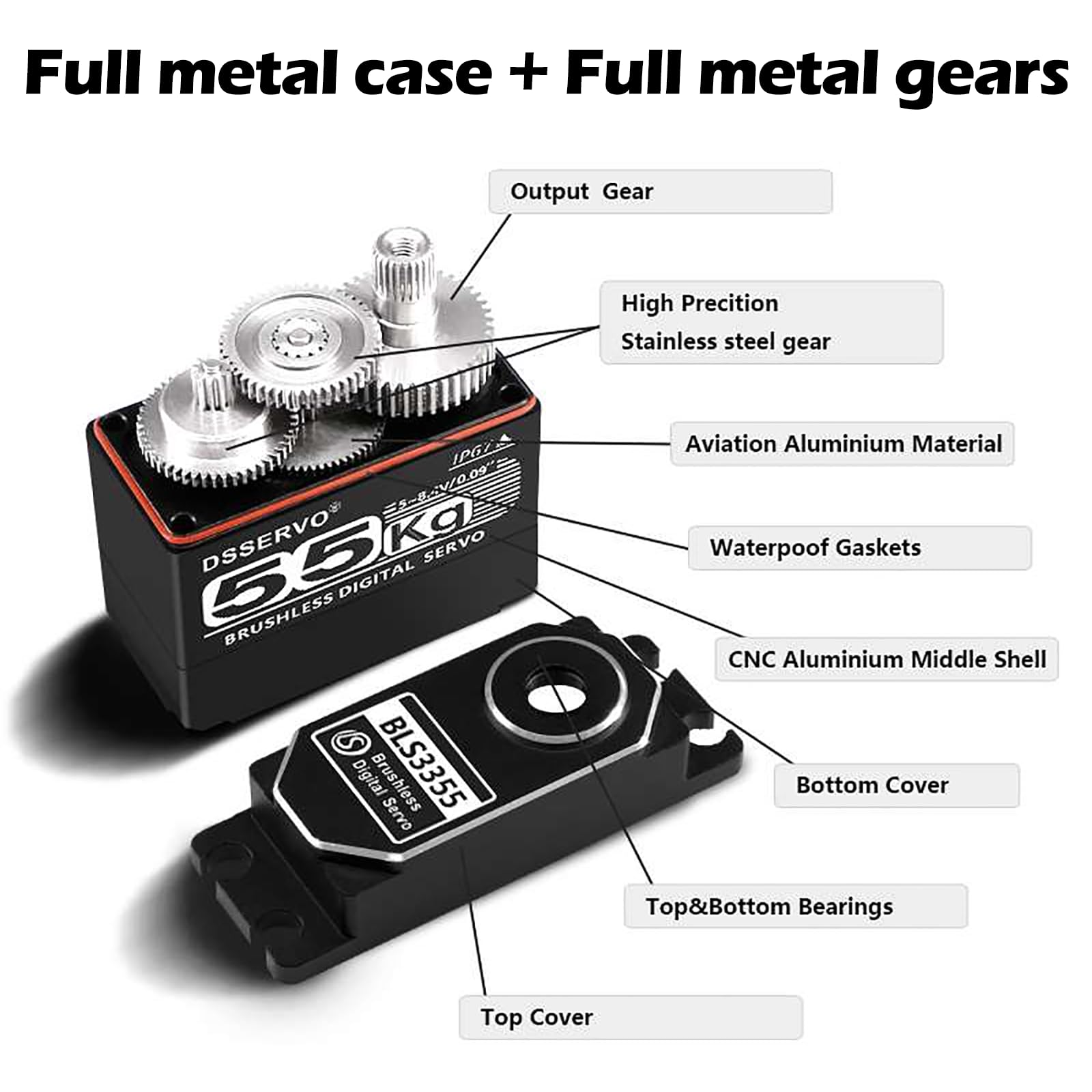

BulletPoint2 : All-metal Servos - all-aluminum housings and stainless steel gears with CNC machined aluminum intermediate housings for quieter, lighter weight and more precise operation
BulletPoint3 : IP67 Waterproof Design - IP67 rated waterproof design allows your RC model to be used in wet environments or rainy days
BulletPoint4 : APPLICATIONS AND STANDARD SIZE - The standard size of the RC servo is 40*20*38mm (1.57*0.79*1.49in), suitable for 1/8 1/10 buggy, monster trucks, RC cars, tracked cars, boats, airplanes, helicopters, on-road, off-road and so on.APPLICATIONS AND STANDARD SIZE - The standard size of the RC servo is 40*20*38mm (1.57*0.79*1.49in), suitable for 1/8 1/10 buggy, monster trucks, RC cars, tracked cars, boats, airplanes, helicopters, on-road, off-road and so on
BulletPoint5 : HIGH VOLTAGE, ANGLE CONTROLLABLE - 55kg RC servo adapts to 4.8~8.4V high voltage, high voltage steering servo, controllable angle range 0-180°(0-270°); with a 25T adjustable metal servo armHIGH VOLTAGE, ANGLE CONTROLLABLE - 55kg RC servo adapts to 4.8~8.4V high voltage, high voltage steering servo, controllable angle range 0-180°(0-270°); with a 25T adjustable metal servo arm
ExternallyAssignedProductIdentifier1 : 0655479174365
ExternallyAssignedProductIdentifier2 : 655479174365
Horsepower : 55 horsepower

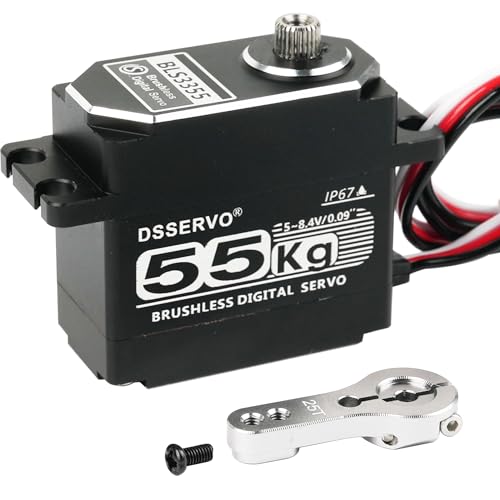

ItemName : Wishiot 55kg Brushless Servo High Speed RC Digital Servo Waterproof IP67 Full Metal High Torque Servo for 1/8 1/10 RC Car Crawler (BLS3355) 270°
ItemPackageDimensions_Height : 8 centimeters
ItemPackageDimensions_Length : 6 centimeters
ItemPackageDimensions_Width : 2.99 centimeters
ItemTypeKeyword : hobby-rc-vehicle-servos
Manufacturer : Wishiot
ManufacturerMinimumAge : 216
ModelNumber : 55kg
PartNumber : WS6687
ProductDescription : 1. Apply Environmental Condition
Storage Temperature Range: -30°C to 80°C
Operating Temperature Range: -15°C to 70°C
Operating Voltage Range: 5 to 8.4V

2. Mechanical Specification
Size: 40 x 20 x 38.5 mm
Weight: 85 g
Gear Ratio: 366
Bearing: Double bearing
Connector Wire: 300 ± 5 mm
Motor: Brushless motor
Waterproof Performance: IP67

3. Electrical Specification
Idle current (at stopped): 5mA@4.8V , 5mA@7.4V , 5mA@8.4V
Operating speed (at no load): 0.14 sec/60°@4.8V , 0.1 sec/60°@7.4V , 0.09 sec/60°@8.4V
Stall torque (at locked): 39 kg-cm@4.8V , 55 kg-cm@7.4V , 61 kg-cm@8.4V
Stall current (at locked): 3.2A@4.8V , 5.2A@7.4V , 6.2A@8.4V

4. Control Specification
Control System: PWM (Pulse width modulation)
Pulse width range: 500～2500 μsec
Neutral position: 1500 μsec
Running degree: 180° or 270° (when 500～2500 μsec)
Dead band width: 2 μsec
Operating frequency: 50～330Hz
Rotating direction: Counterclockwise (when 500～2500 μsec)

Package includes:
1 X BLS3355 55kg high torque brushless servo
1 X 25T Servo arm
1 X Accessory Kit

ProductSiteLaunchDate : 2024-08-08T10:41:58.573Z
Size : 55kg full metal 270°
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudienceKeyword : Adults
UnspscCode : 26111500
Voltage : 8 volts
